Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43252A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
307 |
|
Datasheet |
B43252 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.93 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLG2G561MELB40CAP ALUM 560UF 20% 400V SNAP TH |
182 |
|
Datasheet |
LLG | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.4177 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215742681E3CAP ALUM 680UF 20% 200V SNAP TH |
734 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 680 µF | ±20% | 200 V | 350mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | - | 340 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL225967221E3CAP ALUM 220UF 20% 450V SNAP TH |
2,053 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 220 µF | ±20% | 450 V | 540mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 100 Hz | 2.22 A @ 10 kHz | 380 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGNW6561MELC45CAP ALUM 560UF 20% 420V SNAP TH |
178 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.003 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQS2G561MELB50CAP ALUM 560UF 20% 400V SNAP TH |
200 |
|
Datasheet |
LQS | Bulk | Active | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAR2W391MELB50CAP ALUM 390UF 20% 450V SNAP TH |
190 |
|
Datasheet |
LAR | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 1.8515 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LKX2G391MESB45CAP ALUM 390UF 20% 400V SNAP TH |
176 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGGW6471MELC35CAP ALUM 470UF 20% 420V SNAP TH |
197 |
|
Datasheet |
LGG | Bulk | Active | 470 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ272M160A042CAP ALUM 2700UF 20% 160V SNAP TH |
11,779 |
|
Datasheet |
380LQ | Bulk | Active | 2700 µF | ±20% | 160 V | 80mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.45 A @ 120 Hz | 7.63 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PEV227MLL4110QE4CAP ALUM 1100UF 63V SMD |
181 |
|
Datasheet |
PEV227 | Tray | Active | 1100 µF | -10%, +30% | 63 V | 77mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 5.32 A @ 100 Hz | 15.808 A @ 100 kHz | - | - | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 1.181" (30.00mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | Surface Mount | |
|
380LX561M400A052CAP ALUM 560UF 20% 400V SNAP TH |
113 |
|
Datasheet |
380LX | Bulk | Active | 560 µF | ±20% | 400 V | 355mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43501C9337M000CAP ALUM 330UF 20% 400V SNAP TH |
3,246 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | 200mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGL2G391MELC25CAP ALUM 390UF 20% 400V SNAP TH |
176 |
|
Datasheet |
LGL | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.6874 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGZ2W181MELB45CAP ALUM 180UF 20% 450V SNAP TH |
387 |
|
Datasheet |
LGZ | Bulk | Active | 180 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LLG2W561MELB50CAP ALUM 560UF 20% 450V SNAP TH |
160 |
|
Datasheet |
LLG | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.66 A @ 120 Hz | 3.8038 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

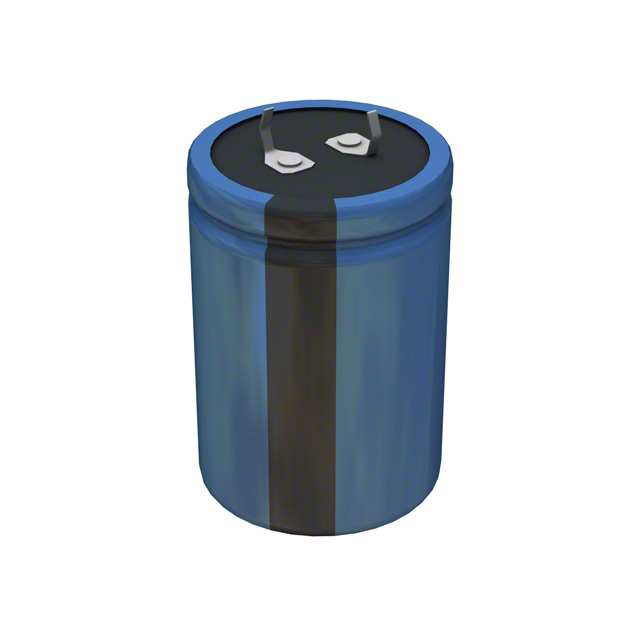

381LX471M400A052CAP ALUM 470UF 20% 400V SNAP TH |
1,123 |
|
Datasheet |
381LX | Bulk | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXK330MEFCSN25X45CAP ALUM 330UF 20% 450V SNAP TH |
271 |
|
Datasheet |
MXK | Tray | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.59 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGNW6681MELC50CAP ALUM 680UF 20% 420V SNAP TH |
200 |
|
Datasheet |
LGN | Bulk | Active | 680 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.003 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAQ2D152MELC45CAP ALUM 1500UF 20% 200V SNAP TH |
196 |
|
Datasheet |
LAQ | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 3.696 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
