Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43508B9687M000CAP ALUM 680UF 20% 400V SNAP TH |
104 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 680 µF | ±20% | 400 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 260 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF80C132EL400CAP ALUM 1300UF 20% 400V PRESS |
910 |
|
Datasheet |
ALF80 | Bulk | Active | 1300 µF | ±20% | 400 V | 100.6mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.07 A @ 100 Hz | 11.34 A @ 10 kHz | 54 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole, Press-Fit | |
|
MAL215956471E3CAP ALUM 470UF 20% 400V SNAP TH |
1,018 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 400 V | 450mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX331M400A032CAP ALUM 330UF 20% 400V SNAP TH |
101 |
|
Datasheet |
381LX | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215957331E3CAP ALUM 330UF 20% 450V SNAP TH |
227 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 330 µF | ±20% | 450 V | 300mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 840 mA @ 10 kHz | 390 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215947331E3CAP ALUM 330UF 20% 450V SNAP TH |
2,023 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 330 µF | ±20% | 450 V | 600mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | - | 390 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
MAL215956331E3CAP ALUM 330UF 20% 400V SNAP TH |
886 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 330 µF | ±20% | 400 V | 640mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | - | 450 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGL2W561MELB50CAP ALUM 560UF 20% 450V SNAP TH |
180 |
|
Datasheet |
LGL | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.3738 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43630A5687M000CAP ALUM 680UF 20% 450V SNAP TH |
272 |
|
Datasheet |
B43630 | Bulk | Active | 680 µF | ±20% | 450 V | 180mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.52 A @ 100 Hz | - | 280 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
B43501A6477M000CAP ALUM 470UF 20% 500V SNAP TH |
219 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 470 µF | ±20% | 500 V | 280mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | - | 340 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
MAL215849472E3CAP ALUM 4700UF 20% 100V SNAP TH |
297 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 4700 µF | ±20% | 100 V | 78mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.29 A @ 100 Hz | - | 73 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215752222E3CAP ALUM 2200UF 20% 200V SNAP TH |
526 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 2200 µF | ±20% | 200 V | 150mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.68 A @ 120 Hz | - | 105 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
420MXH1000MEFCSN35X60CAP ALUM 1000UF 20% 420V SNAP TH |
196 |
|
Datasheet |
MXH | Bulk | Active | 1000 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 3.92 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
EKMS501VSN391MA50SCAP ALUM 390UF 20% 500V SNAP TH |
200 |
|
Datasheet |
KMS | Bulk | Active | 390 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.5454 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
|
EKMW401VSN102MA50SCAP ALUM 1000UF 20% 400V SNAP TH |
153 |
|
Datasheet |
KMW | Bulk | Active | 1000 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.575 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
ETXH451VSN561MB60SCAP ALUM 560UF 20% 450V SNAP TH |
200 |
|
Datasheet |
TXH | Bulk | Active | 560 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.8314 A @ 100 kHz | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|

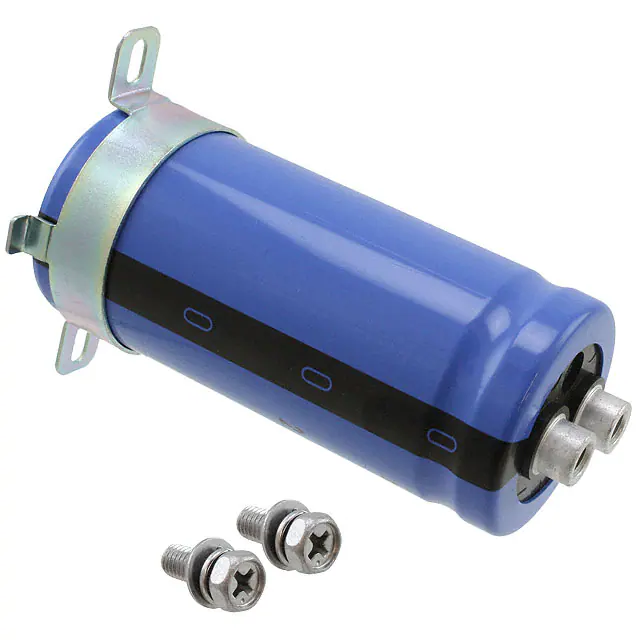

LNR2E102MSECAP ALUM 1000UF 20% 250V SCREW |
103 |
|
Datasheet |
LNR | Bulk | Active | 1000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.88 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
53D212G035GJ6E3CAP ALUM 2100UF 35V AXIAL TH |
104 |
|
Datasheet |
53D | Bulk | Active | 2100 µF | -10%, +75% | 35 V | 111mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 1.829 A @ 1 kHz | - | - | 0.760" Dia x 1.642" L (19.30mm x 41.70mm) | - | - | Through Hole | |
|
EKMS501VSN471MA60SCAP ALUM 470UF 20% 500V SNAP TH |
200 |
|
Datasheet |
KMS | Bulk | Active | 470 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.461" (62.50mm) | - | Through Hole | |
|
CGS201T250R2CCAP ALUM 200UF 250V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 200 µF | -10%, +50% | 250 V | 241mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
