Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXS501VSN221MR45SCAP ALUM 220UF 20% 500V SNAP TH |
200 |
|
Datasheet |
LXS | Bulk | Active | 220 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.9019 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LGL2W471MELB45CAP ALUM 470UF 20% 450V SNAP TH |
206 |
|
Datasheet |
LGL | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.1164 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC80A102DF250CAP ALUM 1000UF 20% 250V SNAP TH |
497 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 250 V | 178.2mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43644A9687M000CAP ALUM 680UF 20% 400V SNAP TH |
121 |
|
Datasheet |
B43644 | Bulk | Active | 680 µF | ±20% | 400 V | 140mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 100 Hz | - | 220 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALA8DA431DF500CAP ALUM 430UF 20% 500V SNAP TH |
998 |
|
Datasheet |
ALA8D | Bulk | Active | 430 µF | ±20% | 500 V | 484mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.7 A @ 100 Hz | 6.1 A @ 10 kHz | 358 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

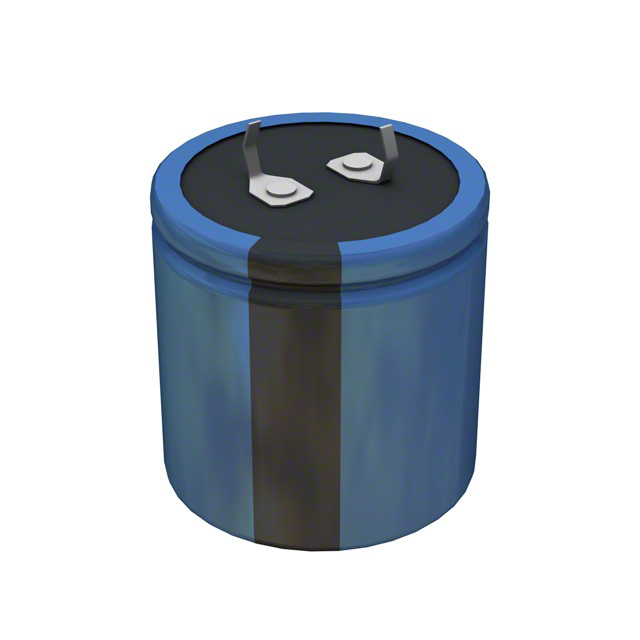

380LX221M500A032CAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 220 µF | ±20% | 500 V | 754mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL215957221E3CAP ALUM 220UF 20% 450V SNAP TH |
3,172 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 450 V | 370mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 1.036 A @ 10 kHz | 525 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

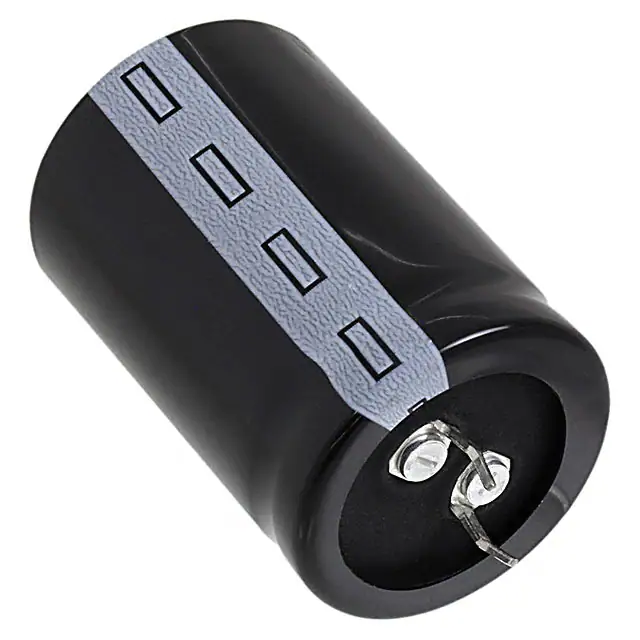

B43305A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
268 |
|
Datasheet |
B43305 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | 290mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEH228KMS4420QE4CAP ALUM 4200UF 40V SOLDER LUG |
278 |
|
Datasheet |
PEH228 | Tray | Active | 4200 µF | -10%, +30% | 40 V | 25mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.43 A @ 100 Hz | 9.8 A @ 5 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.760" (44.70mm) | - | Through Hole | |
|
ALA7DA221DD600CAP ALUM 220UF 20% 600V SNAP TH |
387 |
|
Datasheet |
ALA7D | Bulk | Active | 220 µF | ±20% | 600 V | 585mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 4.2 A @ 10 kHz | 405 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LX103M035K022CAP ALUM 10000UF 20% 35V SNAP TH |
144 |
|
Datasheet |
380LX | Bulk | Active | 10000 µF | ±20% | 35 V | 50mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215966331E3CAP ALUM 330UF 20% 400V SNAP TH |
3,474 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 330 µF | ±20% | 400 V | 320mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 1.96 A @ 10 kHz | 450 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

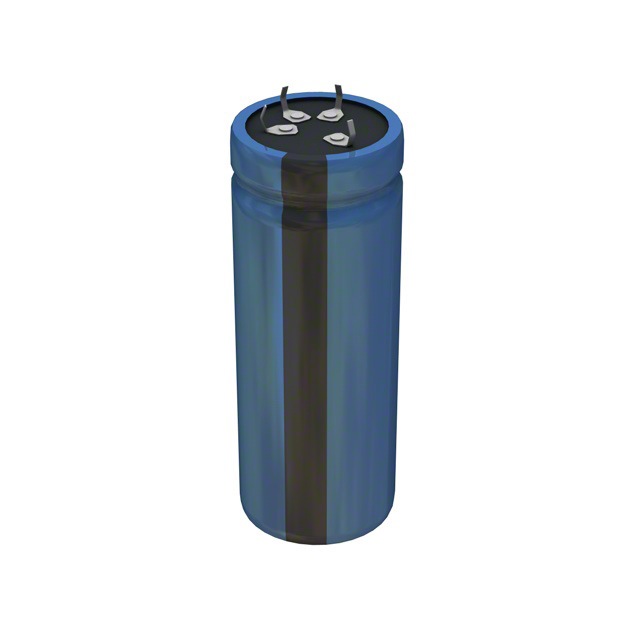

383LX182M250N052CAP ALUM 1800UF 20% 250V SNAP TH |
723 |
|
Datasheet |
383LX | Bulk | Active | 1800 µF | ±20% | 250 V | 120mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | - | 1.575" Dia (40.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ALC10C471EF450CAP ALUM 470UF 20% 450V SNAP TH |
2,050 |
|
Datasheet |
ALC10 | Box | Active | 470 µF | ±20% | 450 V | 243mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.08 A @ 100 Hz | 6.25 A @ 10 kHz | 147 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
80USG8200MEFCSN35X45CAP ALUM 8200UF 20% 80V SNAP TH |
212 |
|
Datasheet |
USG | Bulk | Active | 8200 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 7.36 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ESMQ201VRD272MA50SCAP ALUM 2700UF 20% 200V SNAP TH |
195 |
|
Datasheet |
SMQ | Bulk | Active | 2700 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.45 A @ 120 Hz | 8.175 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

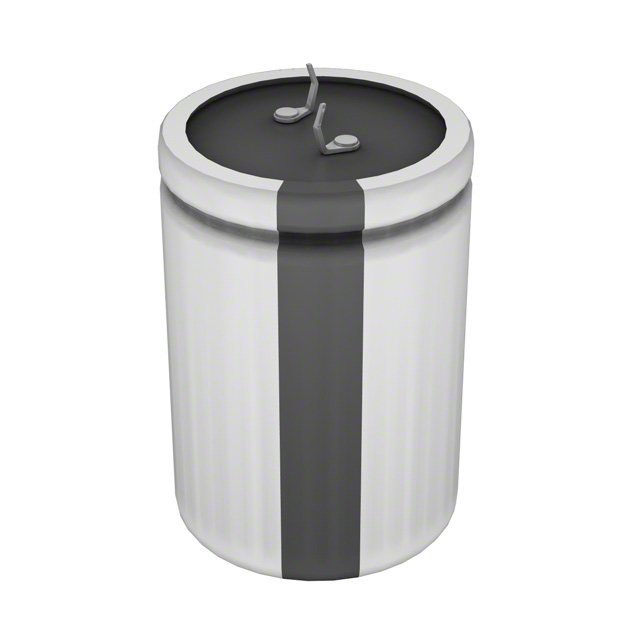

LPX681M400H9P3CAP ALUM 680UF 20% 400V SNAP TH |
898 |
|
Datasheet |
LPX | Bulk | Active | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.12 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
THA141M250AA0CCAP ALUM 140UF 20% 250V FLTPCK |
102 |
|
Datasheet |
THA | Bulk | Active | 140 µF | ±20% | 250 V | 900mOhm @ 120Hz | 5000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.02 A @ 20 kHz | - | 0.394" (10.00mm) | 1.433" L x 0.953" W (36.40mm x 24.20mm) | 0.335" (8.50mm) | - | Through Hole | |
|
ELXM401VSN271MA30SCAP ALUM 270UF 20% 400V SNAP TH |
199 |
|
Datasheet |
LXM | Bulk | Active | 270 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.8733 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS501VSN271MR50SCAP ALUM 270UF 20% 500V SNAP TH |
200 |
|
Datasheet |
LXS | Bulk | Active | 270 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole |
