Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL213816682E3CAP ALUM 6800UF 20% 25V AXIAL TH |
861 |
|
Datasheet |
138 AML | Bulk | Active | 6800 µF | ±20% | 25 V | 68mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 2.1 A @ 100 Hz | 2.73 A @ 10 kHz | 58 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL205958221E3CAP ALUM 220UF 20% 385V SNAP TH |
329 |
|
Datasheet |
059 PLL-SI | Bulk | Active | 220 µF | ±20% | 385 V | 580mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | - | 465 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544A9477M000CAP ALUM 470UF 20% 400V SNAP TH |
290 |
|
Datasheet |
B43544 | Tray | Active | 470 µF | ±20% | 400 V | 130mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.42 A @ 100 Hz | - | 180 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAQ2G331MELC35CAP ALUM 330UF 20% 400V SNAP TH |
197 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 1.6905 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80A331EB400CAP ALUM 330UF 20% 400V SNAP TH |
353 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 400 V | 384.2mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | 5.16 A @ 10 kHz | 200 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43541A9397M000CAP ALUM 390UF 20% 400V SNAP TH |
316 |
|
Datasheet |
B43541 | Bulk | Active | 390 µF | ±20% | 400 V | 200mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.78 A @ 100 Hz | - | 290 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

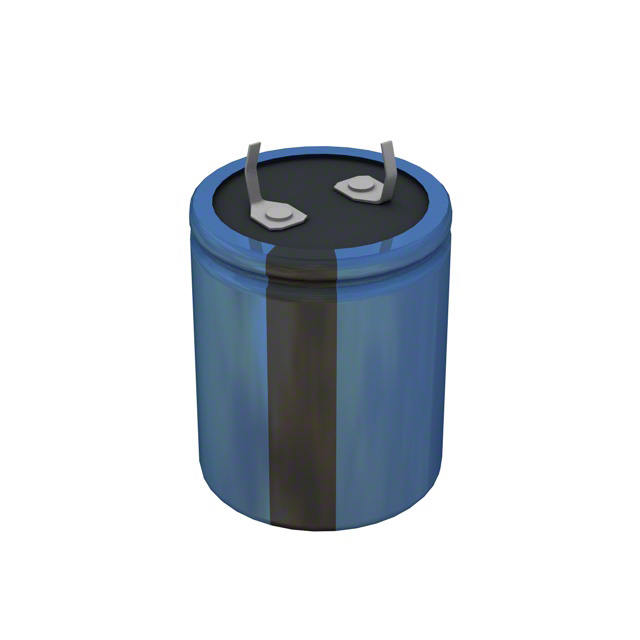

381LX222M063J022CAP ALUM 2200UF 20% 63V SNAP TH |
112 |
|
Datasheet |
381LX | Bulk | Active | 2200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215757471E3CAP ALUM 470UF 20% 450V SNAP TH |
3,179 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 470 µF | ±20% | 450 V | 210mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 3.64 A @ 10 kHz | 290 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43544A9687M000CAP ALUM 680UF 20% 400V SNAP TH |
112 |
|
Datasheet |
B43544 | Tray | Active | 680 µF | ±20% | 400 V | 90mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.15 A @ 100 Hz | - | 130 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXG390MEFCSN30X45CAP ALUM 390UF 20% 450V SNAP TH |
168 |
|
Datasheet |
MXG | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.702 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43508A5477M000CAP ALUM 470UF 20% 450V SNAP TH |
320 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 470 µF | ±20% | 450 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | - | 370 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|

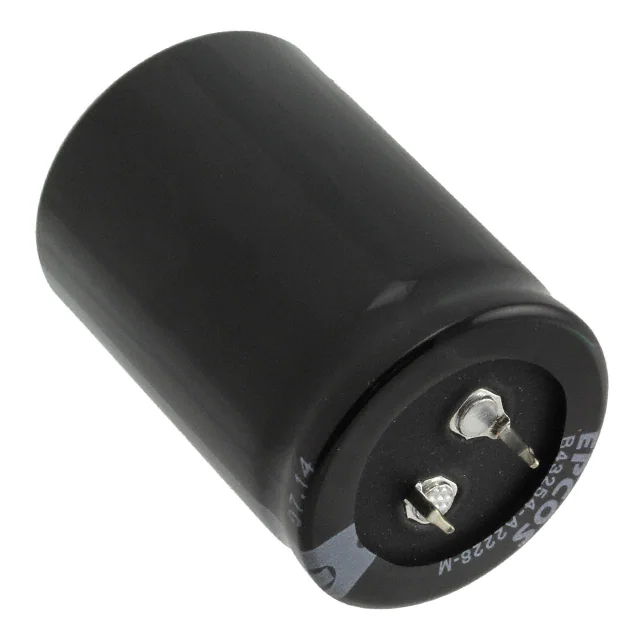

B43254A2228M000CAP ALUM 2200UF 20% 200V SNAP TH |
630 |
|
Datasheet |
B43254 | Bulk | Not For New Designs | 2200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.68 A @ 120 Hz | 5.704 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGN2Z272MELC50CAP ALUM 2700UF 20% 180V SNAP TH |
148 |
|
Datasheet |
LGN | Bulk | Active | 2700 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGN2H331MELC45CAP ALUM 330UF 20% 500V SNAP TH |
184 |
|
Datasheet |
LGN | Bulk | Active | 330 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.7875 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX261M600A052CAP ALUM 260UF 20% 600V SNAP TH |
140 |
|
Datasheet |
381LX | Bulk | Active | 260 µF | ±20% | 600 V | 723mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 3.68 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80A391DD400CAP ALUM 390UF 20% 400V SNAP TH |
472 |
|
Datasheet |
ALC80 | Bulk | Active | 390 µF | ±20% | 400 V | 315.7mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 100 Hz | 6.15 A @ 10 kHz | 163 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL219847151E3CAP ALUM 150UF 20% 450V SNAP TH |
671 |
|
Datasheet |
198 PHR-SI | Bulk | Active | 150 µF | ±20% | 450 V | 637mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALA8DF301DD500CAP ALUM 300UF 20% 500V SNAP TH |
498 |
|
Datasheet |
ALA8D | Bulk | Active | 300 µF | ±20% | 500 V | 691.6mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.94 A @ 100 Hz | 3.65 A @ 10 kHz | 574 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGGW6471MELB45CAP ALUM 470UF 20% 420V SNAP TH |
161 |
|
Datasheet |
LGG | Bulk | Active | 470 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.6598 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX222M200A052CAP ALUM 2200UF 20% 200V SNAP TH |
421 |
|
Datasheet |
380LX | Bulk | Active | 2200 µF | ±20% | 200 V | 90mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
