Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43644A2567M007CAP ALUM 560UF 20% 200V SNAP TH |
624 |
|
Datasheet |
B43644 | Bulk | Active | 560 µF | ±20% | 200 V | 290mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGY1K272MELA40CAP ALUM 2700UF 20% 80V SNAP TH |
239 |
|
Datasheet |
LGY | Bulk | Active | 2700 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2A222MELBCAP ALUM 2200UF 20% 100V SNAP TH |
198 |
|
Datasheet |
LGU | Bulk | Active | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.59 A @ 120 Hz | 2.9785 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
30D157M020CC2ACAP ALUM 150UF 20% 20V AXIAL TH |
387 |
|
Datasheet |
30D | Bulk | Active | 150 µF | ±20% | 20 V | 2.11Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 233 mA @ 120 Hz | 326.2 mA @ 100 kHz | - | - | 0.315" Dia x 0.807" L (8.00mm x 20.50mm) | - | - | Through Hole | |
|
LAR2E681MELA40CAP ALUM 680UF 20% 250V SNAP TH |
242 |
|
Datasheet |
LAR | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

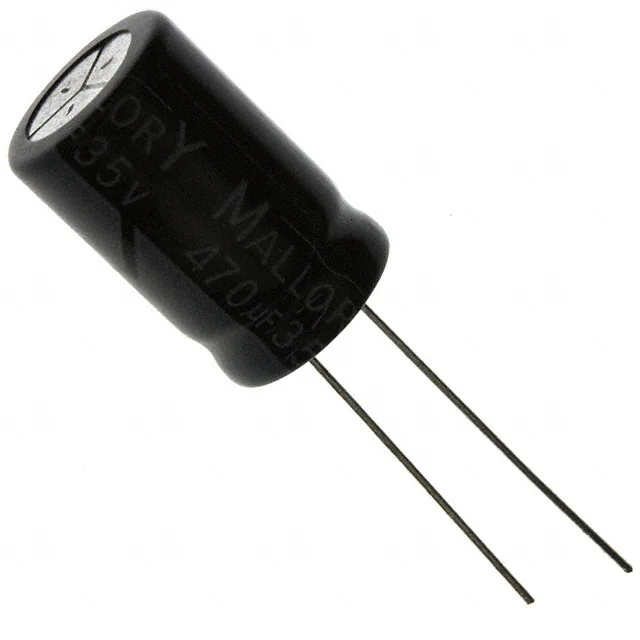

SEK471M035STCAP ALUM 470UF 20% 35V RADIAL TH |
367 |
|
Datasheet |
SEK | Bulk | Active | 470 µF | ±20% | 35 V | 400mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|

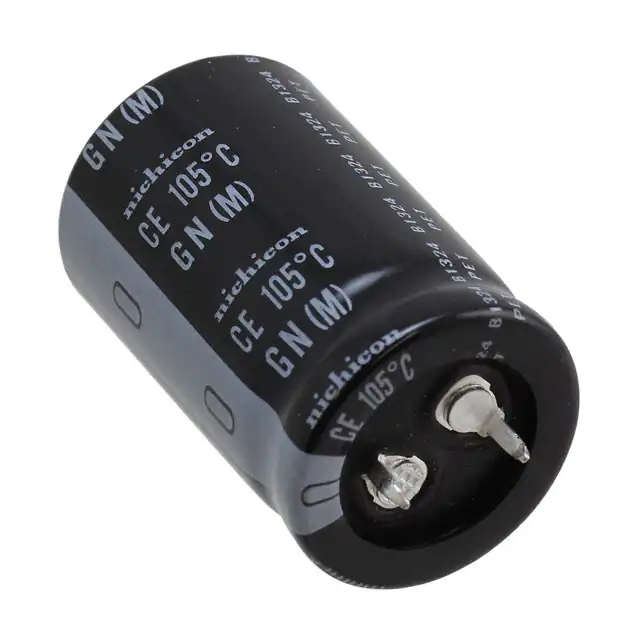

LGN2V331MELA40CAP ALUM 330UF 20% 350V SNAP TH |
222 |
|
Datasheet |
LGN | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMQ451VSN221MQ45SCAP ALUM 220UF 20% 450V SNAP TH |
214 |
|
Datasheet |
KMQ | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ULD2W680MHDCAP ALUM 68UF 20% 450V RADIAL TH |
202 |
|
Datasheet |
ULD | Bulk | Not For New Designs | 68 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 936 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LLS1H822MELCCAP ALUM 8200UF 20% 50V SNAP TH |
181 |
|
Datasheet |
LLS | Bulk | Active | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.41 A @ 120 Hz | 5.0715 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EGPD350ELL752MM40HCAP ALUM 7500UF 20% 35V RADIAL |
2,229 |
|
Datasheet |
GPD | Bulk | Active | 7500 µF | ±20% | 35 V | 18mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 6.0095 A @ 120 Hz | 7.07 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
MAL212618681E3CAP ALUM 680UF 20% 63V AXIAL TH |
459 |
|
Datasheet |
126 ALX | Bulk | Active | 680 µF | ±20% | 63 V | 124mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1 A @ 100 Hz | 1.3 A @ 10 kHz | 74 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
LGU2G181MELBCAP ALUM 180UF 20% 400V SNAP TH |
140 |
|
Datasheet |
LGU | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.4014 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

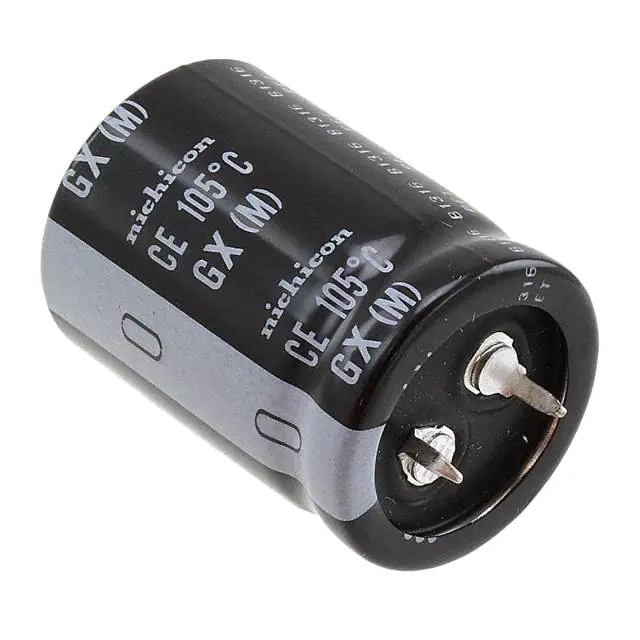

LGX2W181MELA35CAP ALUM 180UF 20% 450V SNAP TH |
138 |
|
Datasheet |
LGX | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.3156 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGJ2E221MELBCAP ALUM 220UF 20% 250V SNAP TH |
109 |
|
Datasheet |
LGJ | Bulk | Active | 220 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.425 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LGL2W151MELA25CAP ALUM 150UF 20% 450V SNAP TH |
1,159 |
|
Datasheet |
LGL | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.0582 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41252A6109M000CAP ALUM 10000UF 20% 50V SNAP TH |
298 |
|
Datasheet |
B41252 | Bulk | Active | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.42 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXG180MEFCSN30X25CAP ALUM 180UF 20% 450V SNAP TH |
198 |
|
Datasheet |
MXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.624 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

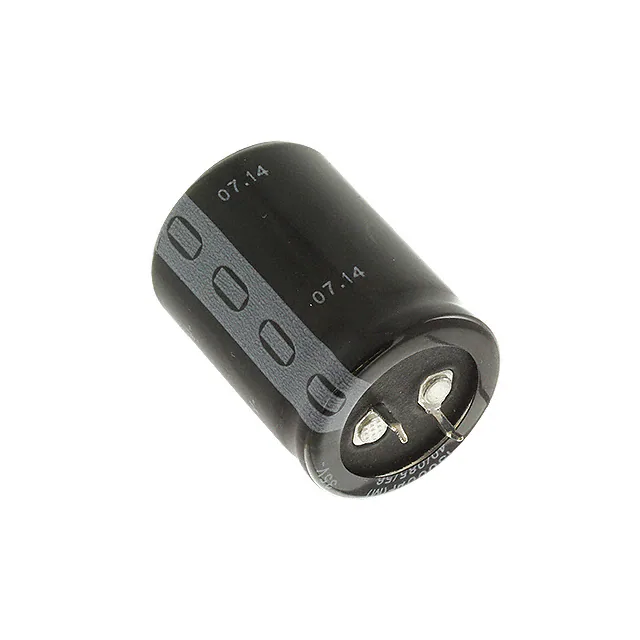

B41231B9338M000CAP ALUM 3300UF 20% 100V SNAP TH |
249 |
|
Datasheet |
B41231 | Bulk | Active | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.72 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2C102MELA35CAP ALUM 1000UF 20% 160V SNAP TH |
246 |
|
Datasheet |
LGN | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
