Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGXF250ELL113MM40SCAP ALUM 11000UF 20% 25V RADIAL |
362 |
|
Datasheet |
GXF | Bulk | Active | 11000 µF | ±20% | 25 V | 14mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.616 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|

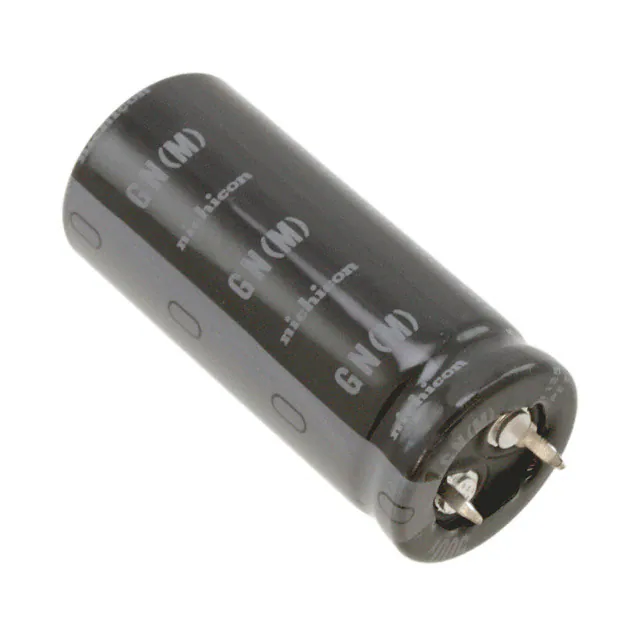

LGN2P821MELZ50CAP ALUM 820UF 20% 220V SNAP TH |
240 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B41505A8338M000CAP ALUM 3300UF 20% 63V SNAP TH |
109 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 3300 µF | ±20% | 63 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | - | 56 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
477LBA200M2BFCAP ALUM 470UF 20% 200V SNAP TH |
833 |
|
Datasheet |
LBA | Bulk | Active | 470 µF | ±20% | 200 V | 529.11mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.02 A @ 120 Hz | 2.9694 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

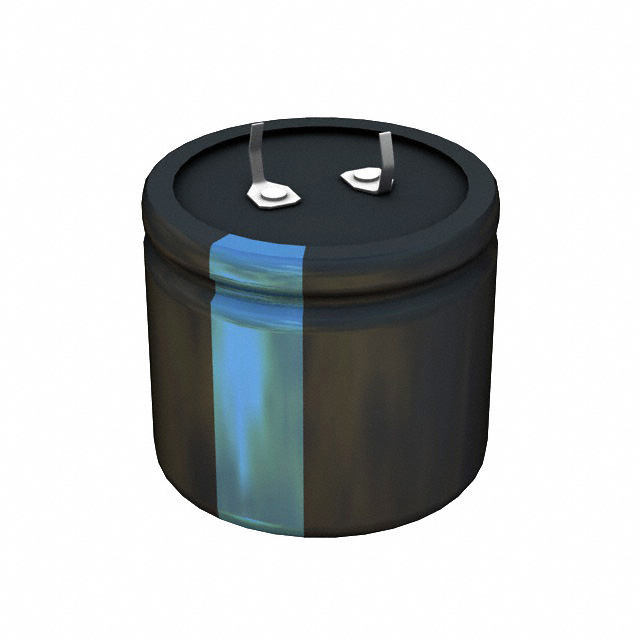

381LX102M200A022CAP ALUM 1000UF 20% 200V SNAP TH |
2,547 |
|
Datasheet |
381LX | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
TE1157.1CAP ALUM 25UF 16V AXIAL TH |
552 |
|
Datasheet |
TE | Bulk | Active | 25 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
500D226M050BB2ACAP ALUM 22UF 20% 50V AXIAL TH |
437 |
|
Datasheet |
500D | Bulk | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
LGY2A152MELA40CAP ALUM 1500UF 20% 100V SNAP TH |
125 |
|
Datasheet |
LGY | Bulk | Active | 1500 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41231A4479M000CAP ALUM 47000UF 20% 16V SNAP TH |
901 |
|
Datasheet |
B41231 | Bulk | Active | 47000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.62 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

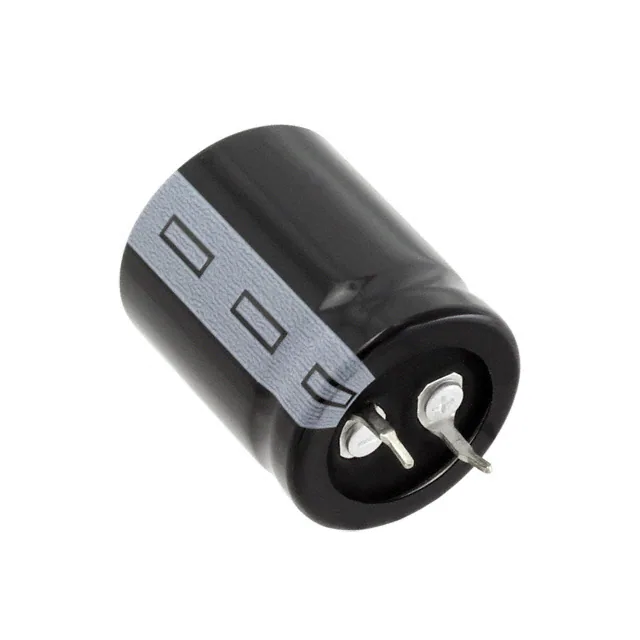

B43508B5157M000CAP ALUM 150UF 20% 450V SNAP TH |
222 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | 820mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 100 Hz | - | 1.15 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UPZ2D331MHD6CAP ALUM 330UF 20% 200V RADIAL |
188 |
|
Datasheet |
UPZ | Bulk | Active | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.414 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGY1H822MELC35CAP ALUM 8200UF 20% 50V SNAP TH |
182 |
|
Datasheet |
LGY | Bulk | Active | 8200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.22 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU2W121MELZCAP ALUM 120UF 20% 450V SNAP TH |
165 |
|
Datasheet |
LGU | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.144 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

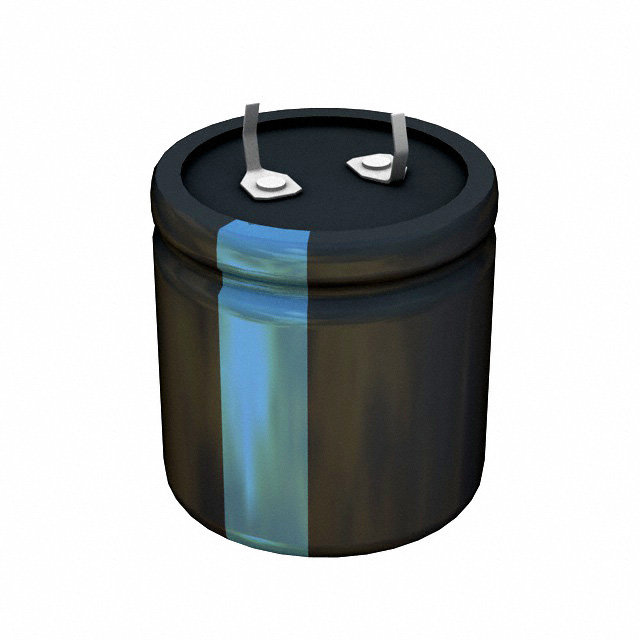

381LX103M025K022CAP ALUM 10000UF 20% 25V SNAP TH |
644 |
|
Datasheet |
381LX | Bulk | Active | 10000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UBY1V472MHLCAP ALUM 4700UF 20% 35V RADIAL |
234 |
|
Datasheet |
UBY | Bulk | Active | 4700 µF | ±20% | 35 V | 20mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.086 A @ 120 Hz | 3.63 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS1E183MELCCAP ALUM 18000UF 20% 25V SNAP TH |
200 |
|
Datasheet |
LLS | Bulk | Active | 18000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.68 A @ 120 Hz | 5.382 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGY1C333MELB45CAP ALUM 33000UF 20% 16V SNAP TH |
174 |
|
Datasheet |
LGY | Bulk | Active | 33000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UPZ2G181MHDCAP ALUM 180UF 20% 400V RADIAL |
104 |
|
Datasheet |
UPZ | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 880 mA @ 120 Hz | 1.32 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMR451VSN271MQ35SCAP ALUM 270UF 20% 450V SNAP TH |
533 |
|
Datasheet |
SMR | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.6741 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.476" (37.50mm) | - | Through Hole | |
|
672D107F060EK5DCAP ALUM 100UF 60V RADIAL TH |
278 |
|
Datasheet |
672D | Bulk | Active | 100 µF | -10%, +50% | 60 V | 900mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2 A @ 100 kHz | 240 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.098" (27.90mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
