Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

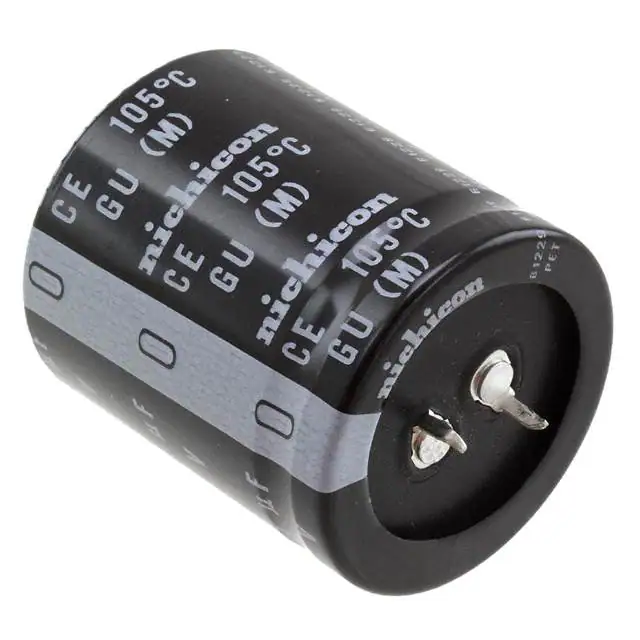

LGU1J682MELCCAP ALUM 6800UF 20% 63V SNAP TH |
161 |
|
Datasheet |
LGU | Bulk | Active | 6800 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.71 A @ 120 Hz | 4.2665 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D476M150EH2CAP ALUM 47UF 20% 150V AXIAL TH |
265 |
|
Datasheet |
500D | Bulk | Active | 47 µF | ±20% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
LLG2E152MELB50CAP ALUM 1500UF 20% 250V SNAP TH |
689 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.25 A @ 120 Hz | 6.375 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450LXW120MEFR14.5X45CAP ALUM 120UF 20% 450V RADIAL |
427 |
|
Datasheet |
LXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2W221MELA35CAP ALUM 220UF 20% 450V SNAP TH |
249 |
|
Datasheet |
LGG | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL213815332E3CAP ALUM 3300UF 20% 16V AXIAL TH |
845 |
|
Datasheet |
138 AML | Bulk | Active | 3300 µF | ±20% | 16 V | 120mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.42 A @ 100 Hz | 1.846 A @ 10 kHz | 100 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
LGR2G221MELA50CAP ALUM 220UF 20% 400V SNAP TH |
190 |
|
Datasheet |
LGR | Bulk | Active | 220 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EGXF800ELL152MM40SCAP ALUM 1500UF 20% 80V RADIAL |
179 |
|
Datasheet |
GXF | Bulk | Active | 1500 µF | ±20% | 80 V | 23mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.214 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
ELH478M080AS3AACAP ALUM 4700UF 20% 80V SNAP TH |
966 |
|
Datasheet |
ELH | Bulk | Active | 4700 µF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2V331MELZ45CAP ALUM 330UF 20% 350V SNAP TH |
247 |
|
Datasheet |
LGN | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGL2W181MELZ35CAP ALUM 180UF 20% 450V SNAP TH |
207 |
|
Datasheet |
LGL | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.1011 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2P102MELC30CAP ALUM 1000UF 20% 220V SNAP TH |
178 |
|
Datasheet |
LGN | Bulk | Active | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEG124MA2220QE4CAP ALUM 22UF 63V AXIAL TH |
1,075 |
|
Datasheet |
PEG124 | Bulk | Active | 22 µF | -10%, +30% | 63 V | 3.4Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 134 mA @ 100 Hz | 430 mA @ 5 kHz | - | - | 0.394" Dia x 0.787" L (10.00mm x 20.00mm) | - | - | Through Hole | |
|
LGW2E471MELB25CAP ALUM 470UF 20% 250V SNAP TH |
339 |
|
Datasheet |
LGW | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
MAL213814472E3CAP ALUM 4700UF 20% 10V AXIAL TH |
323 |
|
Datasheet |
138 AML | Bulk | Active | 4700 µF | ±20% | 10 V | 120mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.45 A @ 100 Hz | 1.74 A @ 10 kHz | 110 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
|
400LXW150MEFR14.5X50CAP ALUM 150UF 20% 400V RADIAL |
319 |
|
Datasheet |
LXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 2.12 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGX2H820MELZ35CAP ALUM 82UF 20% 500V SNAP TH |
159 |
|
Datasheet |
LGX | Bulk | Active | 82 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

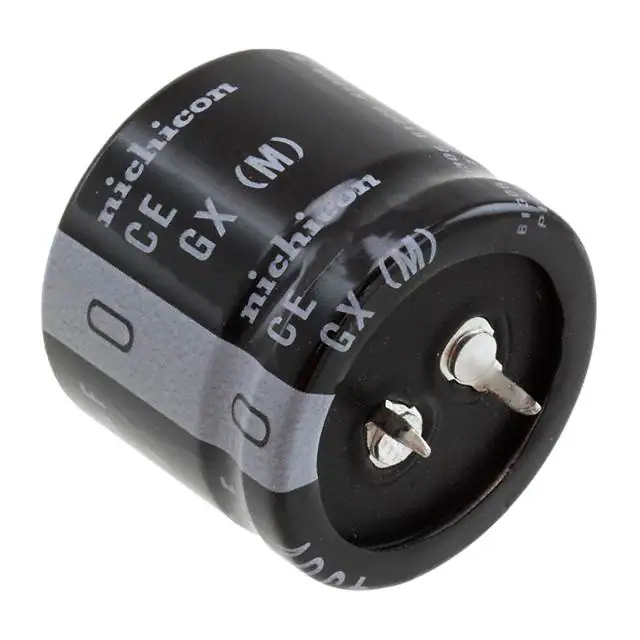

LGX2W151MELB25CAP ALUM 150UF 20% 450V SNAP TH |
118 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.3299 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

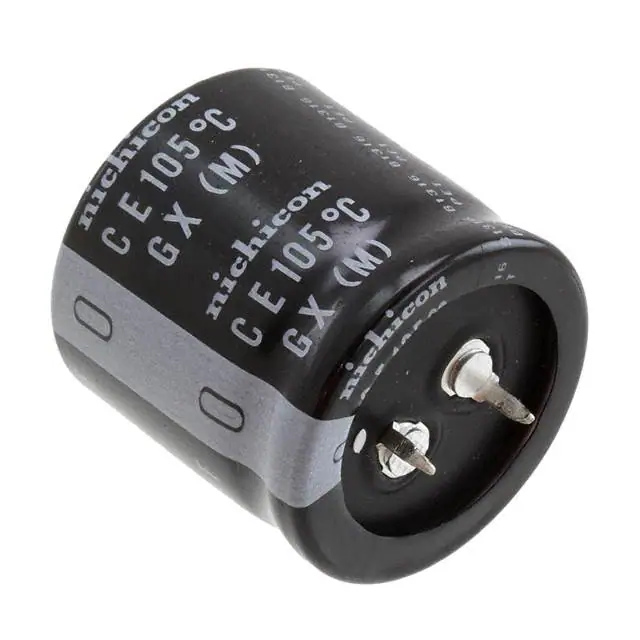

LGX2W181MELB30CAP ALUM 180UF 20% 450V SNAP TH |
183 |
|
Datasheet |
LGX | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.4729 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

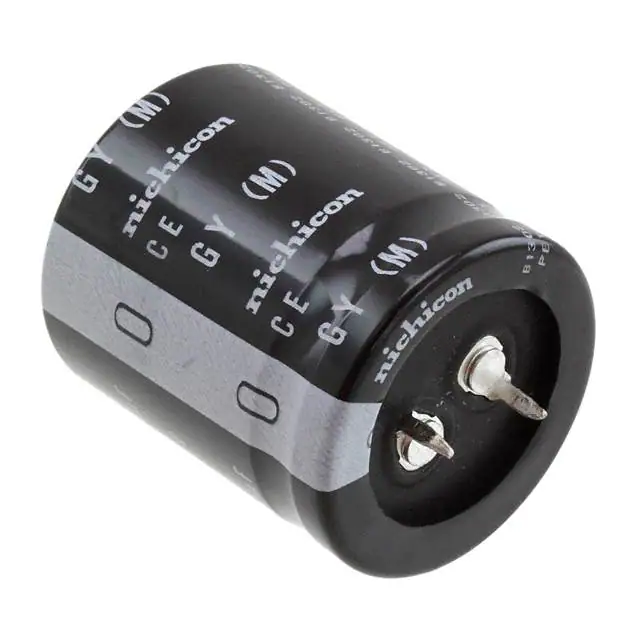

LGY1E153MELB35CAP ALUM 15000UF 20% 25V SNAP TH |
129 |
|
Datasheet |
LGY | Bulk | Active | 15000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
