Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

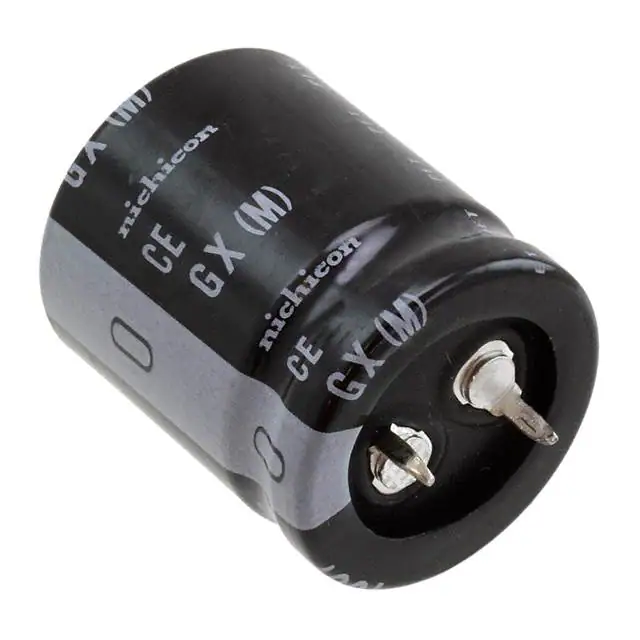

LGX2W121MELA30CAP ALUM 120UF 20% 450V SNAP TH |
210 |
|
Datasheet |
LGX | Bulk | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

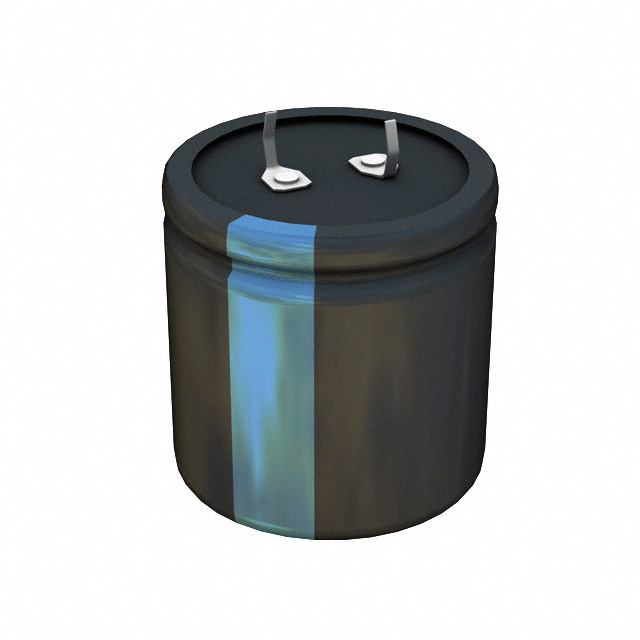

380LX562M080A032CAP ALUM 5600UF 20% 80V SNAP TH |
1,050 |
|
Datasheet |
380LX | Bulk | Active | 5600 µF | ±20% | 80 V | 55mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 120 Hz | 5.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450HXW150MEFR18X35CAP ALUM 150UF 20% 450V RADIAL |
285 |
|
Datasheet |
HXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.84 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS401VSN181MQ25SCAP ALUM 180UF 20% 400V SNAP TH |
855 |
|
Datasheet |
LXS | Bulk | Active | 180 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.083" (27.50mm) | - | Through Hole | |
|
LGG2G181MELA25CAP ALUM 180UF 20% 400V SNAP TH |
244 |
|
Datasheet |
LGG | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.0439 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCY2V181MHDCAP ALUM 180UF 20% 350V RADIAL |
122 |
|
Datasheet |
UCY | Bulk | Active | 180 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.205 A @ 120 Hz | 2.41 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LGU1E153MELBCAP ALUM 15000UF 20% 25V SNAP TH |
155 |
|
Datasheet |
LGU | Bulk | Active | 15000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 3.5995 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL214699011E3CAP ALUM 1500UF 20% 35V SMD |
557 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 1500 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 100 Hz | 1.66 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
500D106M100CB2ACAP ALUM 10UF 20% 100V AXIAL TH |
497 |
|
Datasheet |
500D | Bulk | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
|
500D606M025CB2ACAP ALUM 60UF 20% 25V AXIAL TH |
494 |
|
Datasheet |
500D | Bulk | Active | 60 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
30D336M050CB2ACAP ALUM 33UF 20% 50V AXIAL TH |
225 |
|
Datasheet |
30D | Bulk | Active | 33 µF | ±20% | 50 V | 7.85Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 112 mA @ 120 Hz | 156.8 mA @ 100 kHz | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
450QXW150MEFR18X40CAP ALUM 150UF 20% 450V RADIAL |
107 |
|
Datasheet |
QXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.455 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL202118152E3CAP ALUM 1500UF 20% 63V AXIAL TH |
975 |
|
Datasheet |
021 ASM | Bulk | Active | 1500 µF | ±20% | 63 V | 122mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.142 A @ 10 kHz | 45 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|

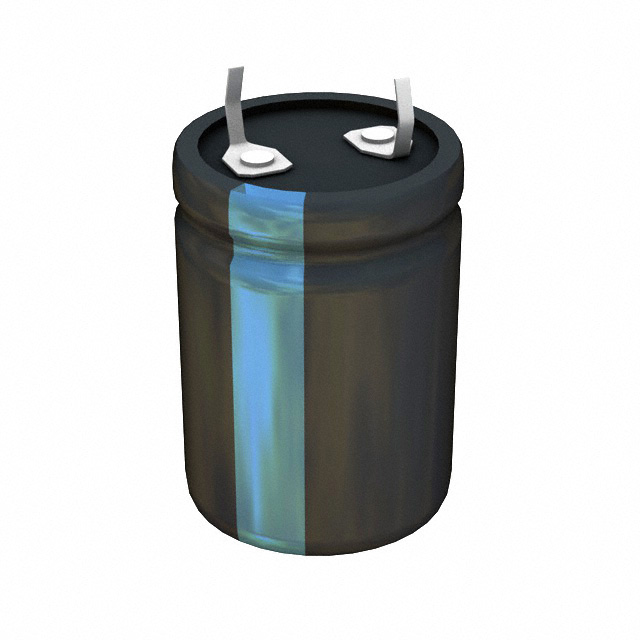

380LX820M450H022CAP ALUM 82UF 20% 450V SNAP TH |
956 |
|
Datasheet |
380LX | Bulk | Active | 82 µF | ±20% | 450 V | 2Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.16 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43504B9107M000CAP ALUM 100UF 20% 400V SNAP TH |
847 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 880mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 100 Hz | - | 1.09 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215266689E3CAP ALUM 68UF 20% 400V RADIAL TH |
399 |
|
Datasheet |
152 RMH | Bulk | Active | 68 µF | ±20% | 400 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 310 mA @ 100 Hz | - | 1.7 Ohms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
200USG470MEFCSN20X35CAP ALUM 470UF 20% 200V SNAP TH |
185 |
|
Datasheet |
USG | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCPW6121MHD6CAP ALUM 120UF 20% 420V RADIAL |
154 |
|
Datasheet |
UCP | Bulk | Active | 120 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
381LQ151M350H022CAP ALUM 150UF 20% 350V SNAP TH |
125 |
|
Datasheet |
381LQ | Bulk | Active | 150 µF | ±20% | 350 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.15 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

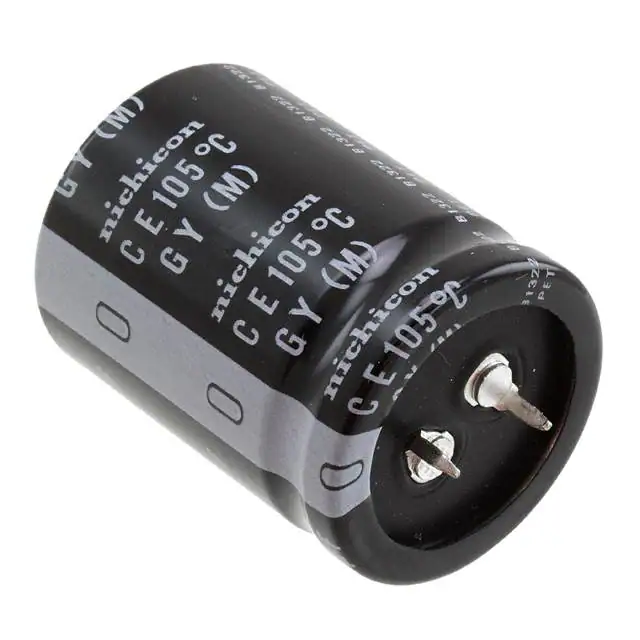

LGY1K392MELB40CAP ALUM 3900UF 20% 80V SNAP TH |
176 |
|
Datasheet |
LGY | Bulk | Active | 3900 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
