Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU1K272MELBCAP ALUM 2700UF 20% 80V SNAP TH |
194 |
|
Datasheet |
LGU | Bulk | Active | 2700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 2.7945 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EGPD500ELL362MM40HCAP ALUM 3600UF 20% 50V RADIAL |
131 |
|
Datasheet |
GPD | Bulk | Active | 3600 µF | ±20% | 50 V | 23mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.815 A @ 120 Hz | 6.42 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LGY2A152MELB30CAP ALUM 1500UF 20% 100V SNAP TH |
184 |
|
Datasheet |
LGY | Bulk | Active | 1500 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGY1V103MELB35CAP ALUM 10000UF 20% 35V SNAP TH |
163 |
|
Datasheet |
LGY | Bulk | Active | 10000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.599 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420HXW180MEFR18X35CAP ALUM 180UF 20% 420V RADIAL |
148 |
|
Datasheet |
HXW | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.575 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

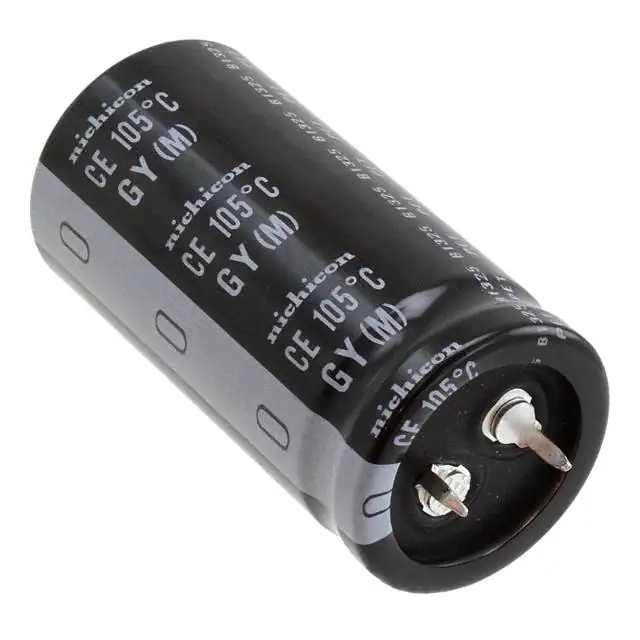

LGY1C273MELA50CAP ALUM 27000UF 20% 16V SNAP TH |
109 |
|
Datasheet |
LGY | Bulk | Active | 27000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLG2G561MELC35CAP ALUM 560UF 20% 400V SNAP TH |
524 |
|
Datasheet |
LLG | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.4177 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

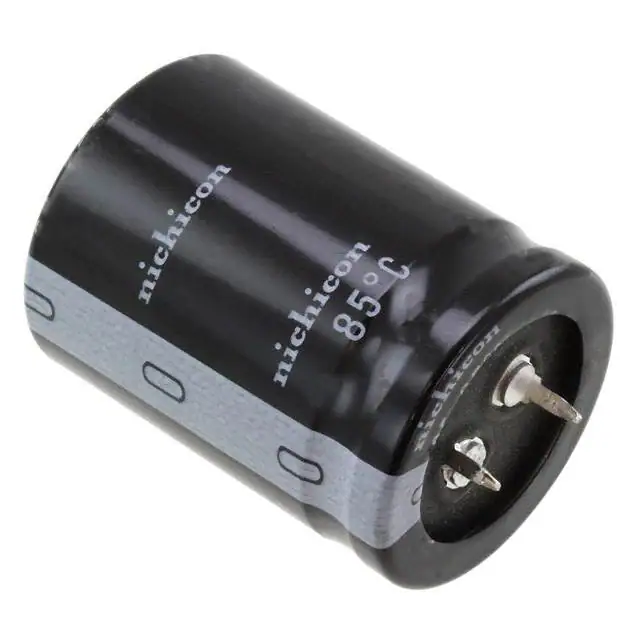

LLS1E223MELBCAP ALUM 22000UF 20% 25V SNAP TH |
158 |
|
Datasheet |
LLS | Bulk | Active | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.33 A @ 120 Hz | 6.1295 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UBY1V752MHLCAP ALUM 7500UF 20% 35V RADIAL |
139 |
|
Datasheet |
UBY | Bulk | Active | 7500 µF | ±20% | 35 V | 18mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.468 A @ 120 Hz | 4.08 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
380LQ331M250H022CAP ALUM 330UF 20% 250V SNAP TH |
400 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 250 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.32 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ESMR401VSN471MR35SCAP ALUM 470UF 20% 400V SNAP TH |
293 |
|
Datasheet |
SMR | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.718 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
ELHS451VSN271MQ40SCAP ALUM 270UF 20% 450V SNAP TH |
198 |
|
Datasheet |
LHS | Bulk | Active | 270 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.9448 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.673" (42.50mm) | - | Through Hole | |
|
LKX2E221MESY30CAP ALUM 220UF 20% 250V SNAP TH |
219 |
|
Datasheet |
LKX | Bulk | Active | 220 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1 A @ 120 Hz | 1.5 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

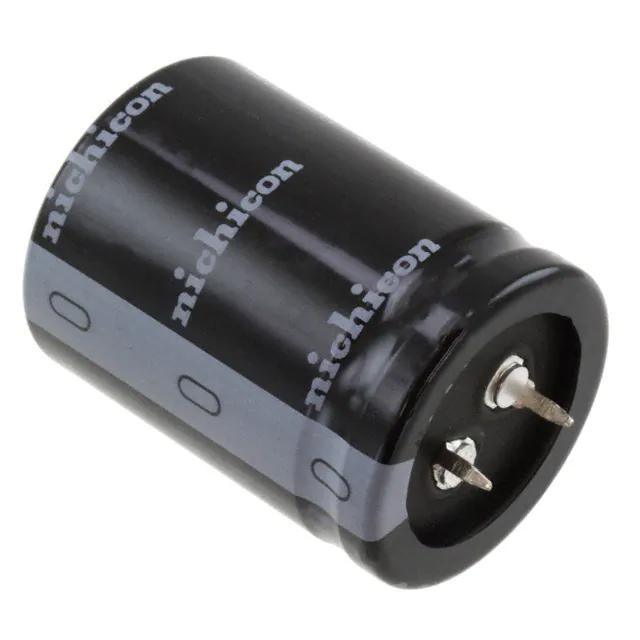

LLS2G391MELBCAP ALUM 390UF 20% 400V SNAP TH |
127 |
|
Datasheet |
LLS | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.2318 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ESMQ251VSN681MQ35SCAP ALUM 680UF 20% 250V SNAP TH |
539 |
|
Datasheet |
SMQ | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EKMQ351VSN821MA45SCAP ALUM 820UF 20% 350V SNAP TH |
338 |
|
Datasheet |
KMQ | Bulk | Active | 820 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UCY2G151MHDCAP ALUM 150UF 20% 400V RADIAL |
276 |
|
Datasheet |
UCY | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.03 A @ 120 Hz | 2.06 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LGU2C102MELCCAP ALUM 1000UF 20% 160V SNAP TH |
2,000 |
|
Datasheet |
LGU | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LGY2A222MELB40CAP ALUM 2200UF 20% 100V SNAP TH |
376 |
|
Datasheet |
LGY | Bulk | Active | 2200 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2G181MELZ35CAP ALUM 180UF 20% 400V SNAP TH |
176 |
|
Datasheet |
LAR | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole |
