Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMQ201VSN821MQ35SCAP ALUM 820UF 20% 200V SNAP TH |
102 |
|
Datasheet |
KMQ | Bulk | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.457" (37.00mm) | - | Through Hole | |
|

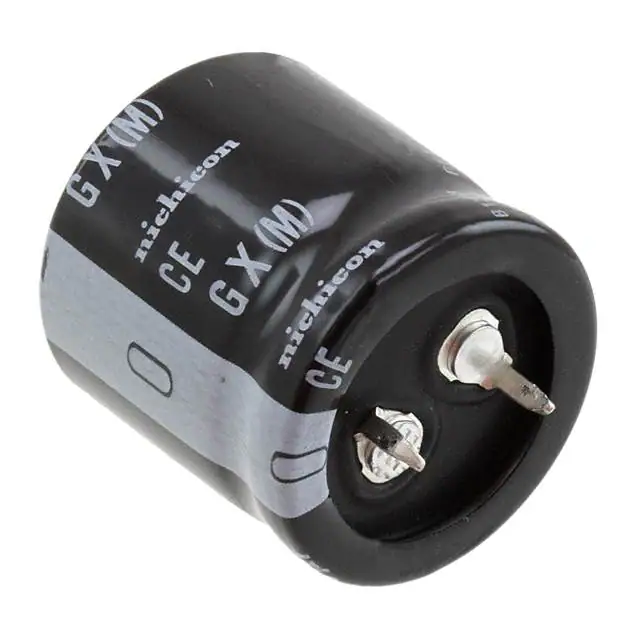

LGX2G151MELA25CAP ALUM 150UF 20% 400V SNAP TH |
2,683 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.2298 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL212026102E3CAP ALUM 1000UF 20% 25V AXIAL TH |
769 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 64mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.6 A @ 10 kHz | 55 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
TE1213-E3CAP ALUM 200UF 25V AXIAL TH |
350 |
|
Datasheet |
TE | Bulk | Active | 200 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
|
TE1509-E3CAP ALUM 20UF 150V AXIAL TH |
302 |
|
Datasheet |
TE | Bulk | Active | 20 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
|
UBY1K132MHL6CAP ALUM 1300UF 20% 80V RADIAL |
250 |
|
Datasheet |
UBY | Bulk | Active | 1300 µF | ±20% | 80 V | 23mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.132 A @ 120 Hz | 5.22 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LR680M450H012CAP ALUM 68UF 20% 450V SNAP TH |
13,339 |
|
Datasheet |
381LR | Bulk | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ESMR421VSN271MR25SCAP ALUM 270UF 20% 420V SNAP TH |
583 |
|
Datasheet |
SMR | Bulk | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.6741 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
LLS2D821MELBCAP ALUM 820UF 20% 200V SNAP TH |
271 |
|
Datasheet |
LLS | Bulk | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.2 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLS2V331MELACAP ALUM 330UF 20% 350V SNAP TH |
210 |
|
Datasheet |
LLS | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.8171 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ESMQ451VSN221MR30SCAP ALUM 220UF 20% 450V SNAP TH |
155 |
|
Datasheet |
SMQ | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

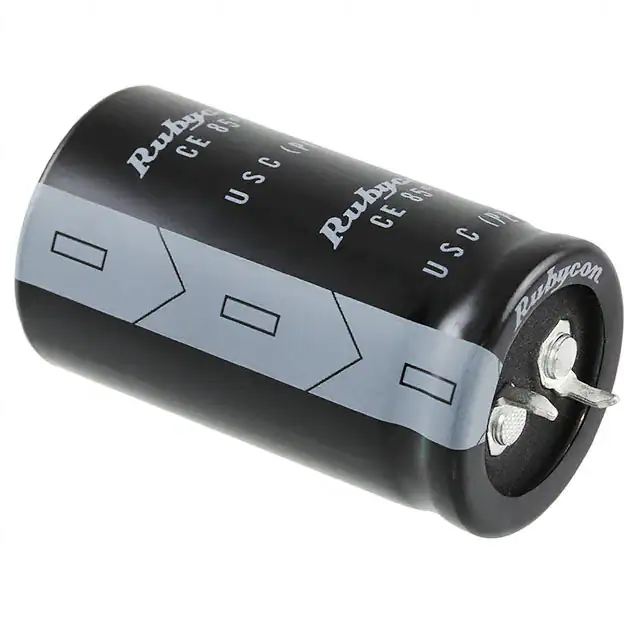

25USC22000MEFCSN25X45CAP ALUM 22000UF 20% 25V SNAP TH |
117 |
|
Datasheet |
USC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.19 A @ 120 Hz | 5.9685 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL225957101E3CAP ALUM 100UF 20% 450V SNAP TH |
2,345 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 100 µF | ±20% | 450 V | 1.12Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 100 Hz | 1.305 A @ 10 kHz | 760 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL212028221E3CAP ALUM 220UF 20% 63V AXIAL TH |
639 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 220 µF | ±20% | 63 V | 149mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.15 A @ 10 kHz | 126 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
400BXW180MEFR16X50CAP ALUM 180UF 20% 400V RADIAL |
390 |
|
Datasheet |
BXW | Bulk | Active | 180 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMQ350ELL682MM40SCAP ALUM 6800UF 20% 35V RADIAL |
243 |
|
Datasheet |
KMQ | Bulk | Active | 6800 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.16 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|

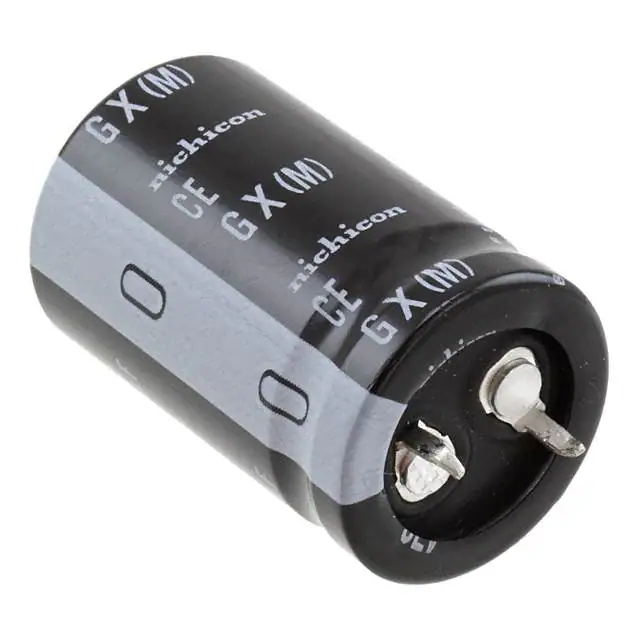

LGX2G151MELZ35CAP ALUM 150UF 20% 400V SNAP TH |
160 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.2298 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS201VSN681MQ30SCAP ALUM 680UF 20% 200V SNAP TH |
138 |
|
Datasheet |
KMS | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.835 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.280" (32.50mm) | - | Through Hole | |
|

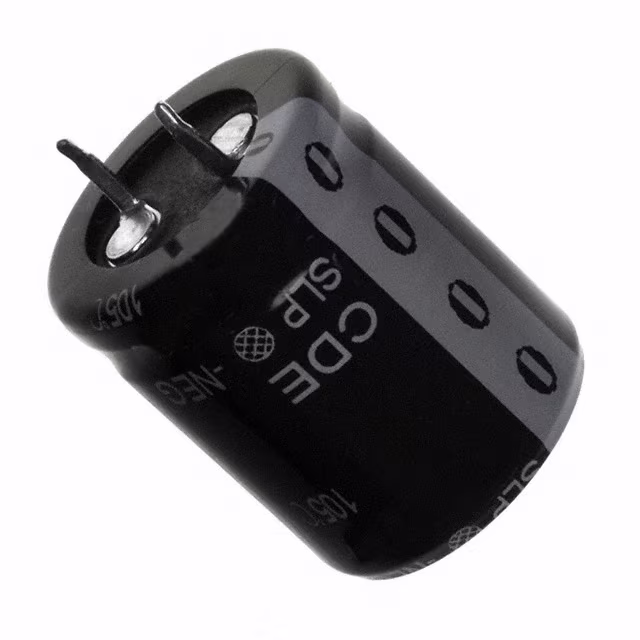

SLP151M450C3P3CAP ALUM 150UF 20% 450V SNAP TH |
3,037 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 150 µF | ±20% | 450 V | 2.121Ohm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
AFK397M50H32VT-FCAP ALUM 390UF 20% 50V SMD |
588 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 390 µF | ±20% | 50 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 675 mA @ 120 Hz | - | 120 mOhms | - | 0.492" Dia (12.50mm) | 0.563" (14.30mm) | 0.531" L x 0.590" W (13.50mm x 15.00mm) | Surface Mount |
