Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

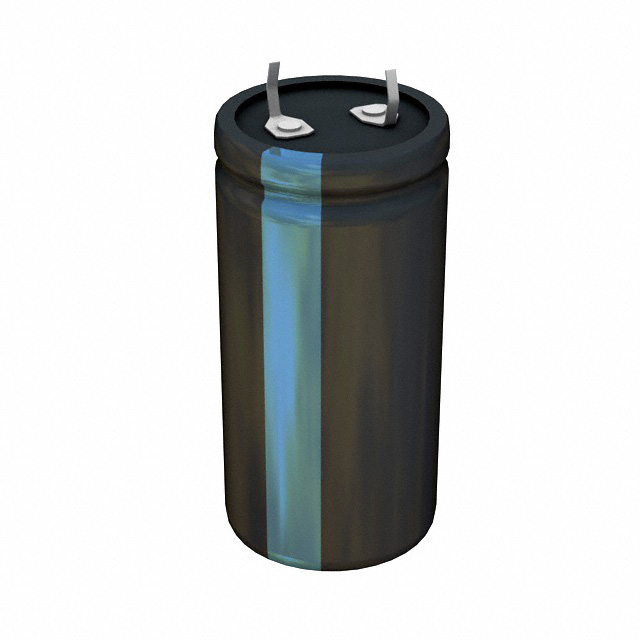

381LQ122M200J052CAP ALUM 1200UF 20% 200V SNAP TH |
1,307 |
|
Datasheet |
381LQ | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.71 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
TE1400-E3CAP ALUM 1UF 100V AXIAL TH |
481 |
|
Datasheet |
TE | Bulk | Active | 1 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
TE1129-E3CAP ALUM 15UF 12V AXIAL TH |
466 |
|
Datasheet |
TE | Bulk | Active | 15 µF | -10%, +75% | 12 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
TE1300-E3CAP ALUM 1UF 50V AXIAL TH |
428 |
|
Datasheet |
TE | Bulk | Active | 1 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
LKX2W820MESZ30CAP ALUM 82UF 20% 450V SNAP TH |
223 |
|
Datasheet |
LKX | Bulk | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
TE1500-E3CAP ALUM 1UF 150V AXIAL TH |
205 |
|
Datasheet |
TE | Bulk | Active | 1 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
ESMQ401VSN471MA30SCAP ALUM 470UF 20% 400V SNAP TH |
1,374 |
|
Datasheet |
SMQ | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.4177 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAQ2G680MELZ25CAP ALUM 68UF 20% 400V SNAP TH |
192 |
|
Datasheet |
LAQ | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 586.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LR102M200K032CAP ALUM 1000UF 20% 200V SNAP TH |
4,928 |
|
Datasheet |
381LR | Bulk | Active | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
63MXG2700MEFCSN22X30CAP ALUM 2700UF 20% 63V SNAP TH |
181 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.4265 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGR2D681MELB35CAP ALUM 680UF 20% 200V SNAP TH |
176 |
|
Datasheet |
LGR | Bulk | Active | 680 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43501A9227M000CAP ALUM 220UF 20% 400V SNAP TH |
2,881 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 220 µF | ±20% | 400 V | 300mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 490 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX102M200H3P3CAP ALUM 1000UF 20% 200V SNAP TH |
2,692 |
|
Datasheet |
SLPX | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.78 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
400BXW180MEFR18X45CAP ALUM 180UF 20% 400V RADIAL |
399 |
|
Datasheet |
BXW | Bulk | Active | 180 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.095 A @ 120 Hz | 2.464 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGN2E561MELZ45CAP ALUM 560UF 20% 250V SNAP TH |
203 |
|
Datasheet |
LGN | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLPX102M220C9P3CAP ALUM 1000UF 20% 220V SNAP TH |
195 |
|
Datasheet |
SLPX | Bulk | Active | 1000 µF | ±20% | 220 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.53 A @ 120 Hz | 5.19 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGU2A392MELCCAP ALUM 3900UF 20% 100V SNAP TH |
165 |
|
Datasheet |
LGU | Bulk | Active | 3900 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.69 A @ 120 Hz | 4.2435 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL214699012E3CAP ALUM 1800UF 20% 35V SMD |
774 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 1800 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.14 A @ 100 Hz | 1.75 A @ 100 kHz | 35 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
MAL214699712E3CAP ALUM 470UF 20% 80V SMD |
716 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 470 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 660 mA @ 100 Hz | 1.1 A @ 100 kHz | 110 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
|
MAL214699911E3CAP ALUM 330UF 20% 100V SMD |
700 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 330 µF | ±20% | 100 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 486 mA @ 100 Hz | 810 mA @ 100 kHz | 230 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
