Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGR2D821MELA50CAP ALUM 820UF 20% 200V SNAP TH |
241 |
|
Datasheet |
LGR | Bulk | Active | 820 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX332M063J022CAP ALUM 3300UF 20% 63V SNAP TH |
8,454 |
|
Datasheet |
381LX | Bulk | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLP561M200E1P3CAP ALUM 560UF 20% 200V SNAP TH |
3,317 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 560 µF | ±20% | 200 V | 355mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
420CXW180MEFR18X40CAP ALUM 180UF 20% 420V RADIAL |
950 |
|
Datasheet |
CXW | Bulk | Active | 180 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 2.08 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL212015102E3CAP ALUM 1000UF 20% 16V AXIAL TH |
460 |
|
Datasheet |
120 ATC | Bulk | Active | 1000 µF | ±20% | 16 V | 77mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.55 A @ 10 kHz | 61 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
LGU2E471MELZCAP ALUM 470UF 20% 250V SNAP TH |
240 |
|
Datasheet |
LGU | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.475 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
400BXW150MEFR18X40CAP ALUM 150UF 20% 400V RADIAL |
218 |
|
Datasheet |
BXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 985 mA @ 120 Hz | 2.216 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGJ2W121MELB20CAP ALUM 120UF 20% 450V SNAP TH |
227 |
|
Datasheet |
LGJ | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LLS2D122MELBCAP ALUM 1200UF 20% 200V SNAP TH |
175 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.61 A @ 120 Hz | 5.415 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

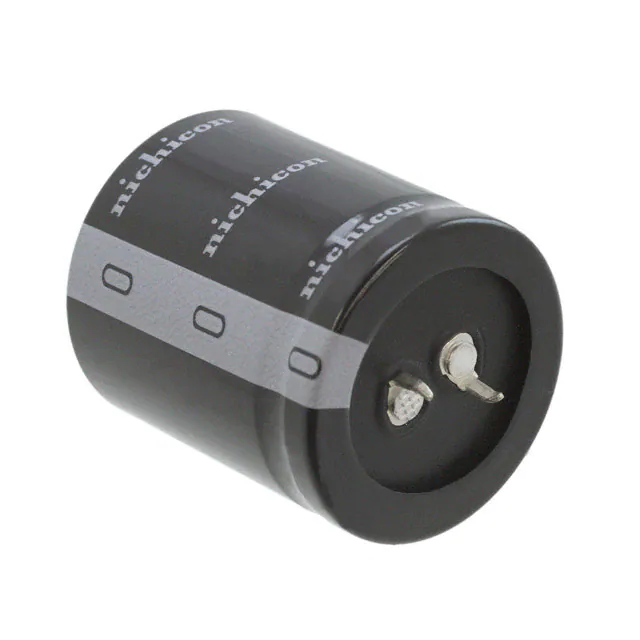

LLS1V183MELCCAP ALUM 18000UF 20% 35V SNAP TH |
2,220 |
|
Datasheet |
LLS | Bulk | Active | 18000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.71 A @ 120 Hz | 6.5665 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMQ401VSN271MQ40SCAP ALUM 270UF 20% 400V SNAP TH |
894 |
|
Datasheet |
KMQ | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.654" (42.00mm) | - | Through Hole | |
|

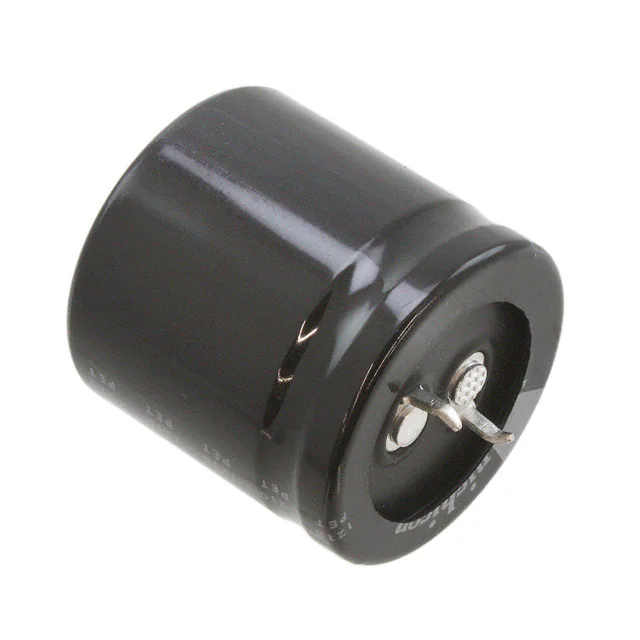

LGU2C102MELBCAP ALUM 1000UF 20% 160V SNAP TH |
216 |
|
Datasheet |
LGU | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ESMQ251VSN561MR25SCAP ALUM 560UF 20% 250V SNAP TH |
160 |
|
Datasheet |
SMQ | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.063" (27.00mm) | - | Through Hole | |
|

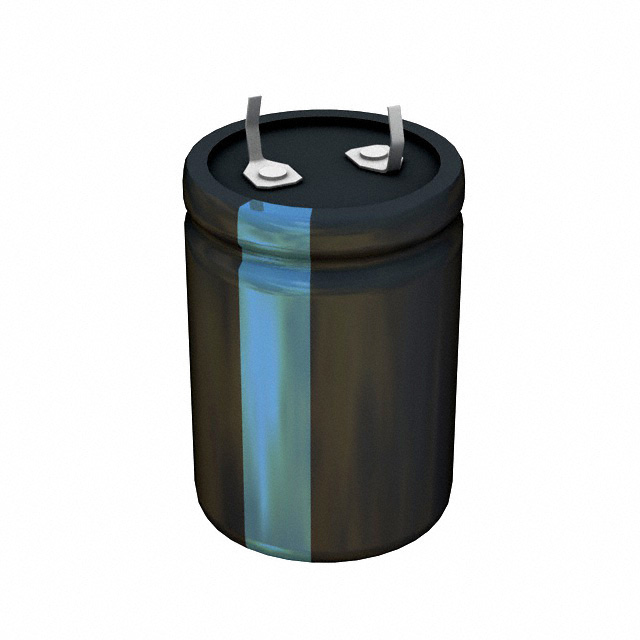

381LR471M250J032CAP ALUM 470UF 20% 250V SNAP TH |
2,598 |
|
Datasheet |
381LR | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.64 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX102M200E5P3CAP ALUM 1000UF 20% 200V SNAP TH |
2,046 |
|
Datasheet |
SLPX | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 4.63 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

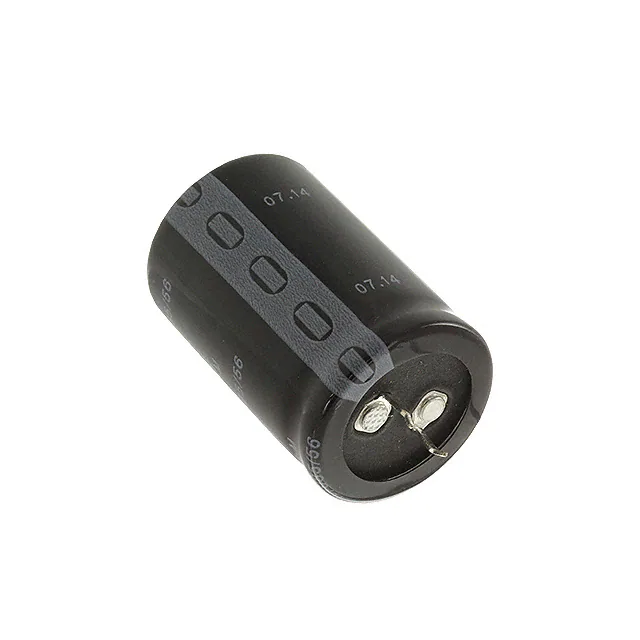

B41231A6109M000CAP ALUM 10000UF 20% 50V SNAP TH |
2,029 |
|
Datasheet |
B41231 | Bulk | Active | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UPZ2D471MHDCAP ALUM 470UF 20% 200V RADIAL |
149 |
|
Datasheet |
UPZ | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGW2G121MELA25CAP ALUM 120UF 20% 400V SNAP TH |
217 |
|
Datasheet |
LGW | Bulk | Active | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
381LR821M200J042CAP ALUM 820UF 20% 200V SNAP TH |
1,065 |
|
Datasheet |
381LR | Bulk | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.63 A @ 120 Hz | 3.76 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
AFK477M80R44T-FCAP ALUM 470UF 20% 80V SMD |
594 |
|
Datasheet |
AFK | Tape & Reel (TR) | Active | 470 µF | ±20% | 80 V | 150mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 687.8 mA @ 120 Hz | 917 mA @ 100 kHz | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.827" W (19.00mm x 21.00mm) | Surface Mount |
