Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKYB6R3ELL183MMP1SCAP ALUM 18000UF 20% 6.3V RADIAL |
353 |
|
Datasheet |
KYB | Bulk | Active | 18000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.638 A @ 120 Hz | 4.28 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2C471MELY30CAP ALUM 470UF 20% 160V SNAP TH |
169 |
|
Datasheet |
LGN | Bulk | Active | 470 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
80ZLJ560M16X31.5CAP ALUM 560UF 20% 80V RADIAL TH |
165 |
|
Datasheet |
ZLJ | Bulk | Active | 560 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.452 A @ 120 Hz | - | 32 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|

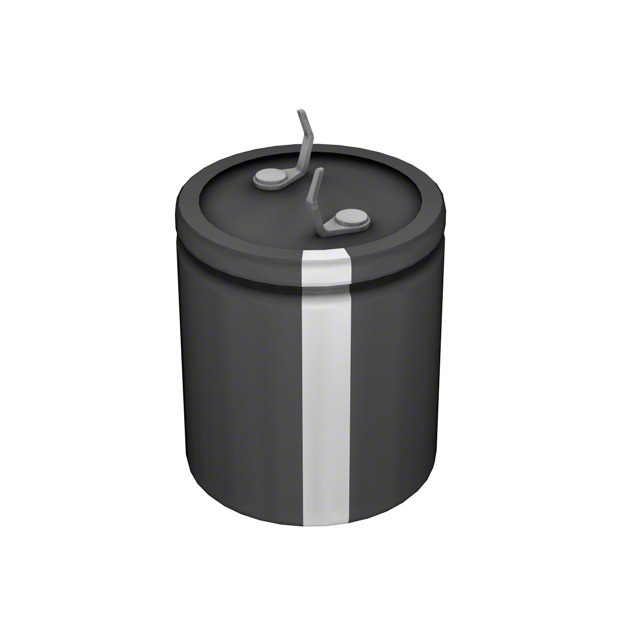

LP332M025A1P3CAP ALUM 3300UF 20% 25V SNAP TH |
1,098 |
|
Datasheet |
LP | Bulk | Active | 3300 µF | ±20% | 25 V | 151mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.276 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
.JPG)
|
25TRV2200M18X16.5CAP ALUM 2200UF 20% 25V SMD |
628 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 64 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
SK332M025STCAP ALUM 3300UF 20% 25V RADIAL |
1,997 |
|
Datasheet |
SK | Bulk | Active | 3300 µF | ±20% | 25 V | 100mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
B43630E2277M000CAP ALUM 270UF 20% 250V SNAP TH |
687 |
|
Datasheet |
B43630 | Bulk | Active | 270 µF | ±20% | 250 V | 310mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 450 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EGPD500ELL132ML25HCAP ALUM 1300UF 20% 50V RADIAL |
488 |
|
Datasheet |
GPD | Bulk | Active | 1300 µF | ±20% | 50 V | 42mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.424 A @ 120 Hz | 4.04 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
LAS2W151MELA35CAP ALUM 150UF 20% 450V SNAP TH |
144 |
|
Datasheet |
LAS | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.012 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPS1J152MHDCAP ALUM 1500UF 20% 63V RADIAL |
235 |
|
Datasheet |
UPS | Bulk | Not For New Designs | 1500 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.523 A @ 120 Hz | 1.75 A @ 100 kHz | 38 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
B43254C5157M000CAP ALUM 150UF 20% 450V SNAP TH |
114 |
|
Datasheet |
B43254 | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 945.5 mA @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EEE-TP1J751MCAP ALUM 750UF 20% 63V SMD |
365 |
|
Datasheet |
TP | Tape & Reel (TR) | Active | 750 µF | ±20% | 63 V | 95mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.5 A @ 120 Hz | 2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
LGR2W560MELZ35CAP ALUM 56UF 20% 450V SNAP TH |
250 |
|
Datasheet |
LGR | Bulk | Active | 56 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPX1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
155 |
|
Datasheet |
UPX | Bulk | Not For New Designs | 4700 µF | ±20% | 10 V | - | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 1.638 A @ 120 Hz | 2.184 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UBY1J951MHL6CAP ALUM 950UF 20% 63V RADIAL TH |
365 |
|
Datasheet |
UBY | Bulk | Active | 950 µF | ±20% | 63 V | 48mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.41 A @ 120 Hz | 2.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UCZ1J751MNS1MSCAP ALUM 750UF 20% 63V SMD |
897 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 750 µF | ±20% | 63 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 1.3 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
420HXW82MEFR12.5X35CAP ALUM 82UF 20% 420V RADIAL TH |
498 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 960 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGY2A821MELZ30CAP ALUM 820UF 20% 100V SNAP TH |
213 |
|
Datasheet |
LGY | Bulk | Active | 820 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2C561MELYCAP ALUM 560UF 20% 160V SNAP TH |
150 |
|
Datasheet |
LGU | Bulk | Active | 560 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGU2E271MELYCAP ALUM 270UF 20% 250V SNAP TH |
252 |
|
Datasheet |
LGU | Bulk | Active | 270 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.65 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.378" (35.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
