Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450QXW68MEFR12.5X40CAP ALUM 68UF 20% 450V RADIAL TH |
367 |
|
Datasheet |
QXW | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGGW6221MELA35CAP ALUM 220UF 20% 420V SNAP TH |
184 |
|
Datasheet |
LGG | Bulk | Active | 220 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX271M200H012CAP ALUM 270UF 20% 200V SNAP TH |
1,888 |
|
Datasheet |
380LX | Bulk | Active | 270 µF | ±20% | 200 V | 610mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHW1K561MHD6TNCAP ALUM 560UF 20% 80V RADIAL TH |
513 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 560 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.135 A @ 120 Hz | 2.27 A @ 100 kHz | 47 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKZN630ELL152MMN3SCAP ALUM 1500UF 20% 63V RADIAL |
355 |
|
Datasheet |
KZN | Bulk | Active | 1500 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.028 A @ 120 Hz | 3.38 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UHW1K681MHD6TNCAP ALUM 680UF 20% 80V RADIAL TH |
255 |
|
Datasheet |
UHW | Bulk | Active | 680 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.458 A @ 120 Hz | 2.43 A @ 100 kHz | 40 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKYB100ELL123ML40SCAP ALUM 12000UF 20% 10V RADIAL |
232 |
|
Datasheet |
KYB | Bulk | Active | 12000 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.587 A @ 120 Hz | 4.22 A @ 100 kHz | 13 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UKW1A153MHDCAP ALUM 15000UF 20% 10V RADIAL |
221 |
|
Datasheet |
UKW | Bulk | Not For New Designs | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.72 A @ 120 Hz | 3.128 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UBY2A361MHL6TNCAP ALUM 360UF 20% 100V RADIAL |
158 |
|
Datasheet |
UBY | Cut Tape (CT) | Active | 360 µF | ±20% | 100 V | 48mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.175 A @ 120 Hz | 2.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
ULD2W330MHD6TNCAP ALUM 33UF 20% 450V RADIAL TH |
138 |
|
Datasheet |
ULD | Cut Tape (CT) | Not For New Designs | 33 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 312 mA @ 120 Hz | 561.6 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TP1V132VCAP ALUM 1300UF 20% 35V SMD |
1,036 |
|
Datasheet |
TP, Anti-Vibration | Tape & Reel (TR) | Active | 1300 µF | ±20% | 35 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
35USC6800MEFCSN22X35CAP ALUM 6800UF 20% 35V SNAP TH |
348 |
|
Datasheet |
USC | Bulk | Not For New Designs | 6800 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.3235 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

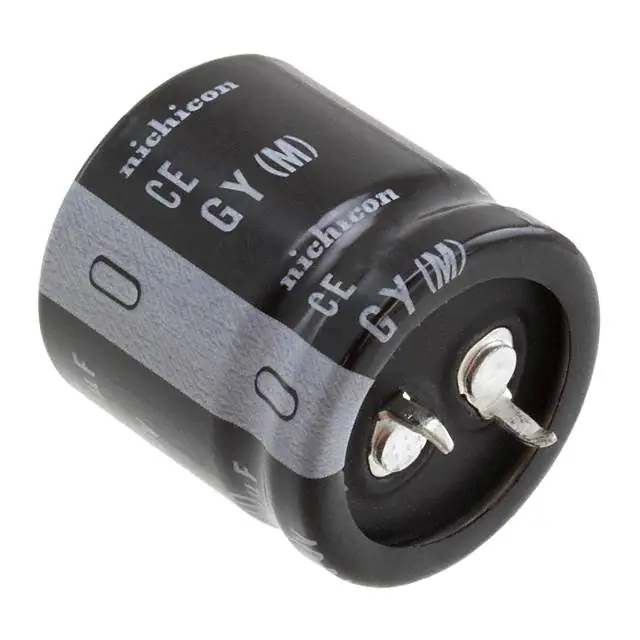

LGY1J182MELA25CAP ALUM 1800UF 20% 63V SNAP TH |
247 |
|
Datasheet |
LGY | Bulk | Active | 1800 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.84 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBC1V681MNS1MSCAP ALUM 680UF 20% 35V SMD |
433 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 680 µF | ±20% | 35 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 636.5 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
LLS1E822MELACAP ALUM 8200UF 20% 25V SNAP TH |
266 |
|
Datasheet |
LLS | Bulk | Active | 8200 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 3.197 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
URZ2D151MHDCAP ALUM 150UF 20% 200V RADIAL |
158 |
|
Datasheet |
URZ | Bulk | Active | 150 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 816 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL215068471E3CAP ALUM 470UF 20% 63V RADIAL TH |
670 |
|
Datasheet |
150 RMI | Bulk | Active | 470 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 780 mA @ 100 Hz | - | 67 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXZ250ELL472ML40SCAP ALUM 4700UF 20% 25V RADIAL |
250 |
|
Datasheet |
LXZ | Bulk | Active | 4700 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.1535 A @ 120 Hz | 3.71 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
MAL213834151E3CAP ALUM 150UF 20% 10V AXIAL TH |
501 |
|
Datasheet |
138 AML | Cut Tape (CT) | Active | 150 µF | ±20% | 10 V | 2.1Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 140 mA @ 100 Hz | 168 mA @ 10 kHz | 1.3 Ohms | - | 0.303" Dia x 0.500" L (7.70mm x 12.70mm) | - | - | Through Hole | |
|
EGQB250ELL362MM25HCAP ALUM 3600UF 20% 25V RADIAL |
491 |
|
Datasheet |
GQB | Bulk | Active | 3600 µF | ±20% | 25 V | 42mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.6 A @ 120 Hz | 4.8 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
