Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

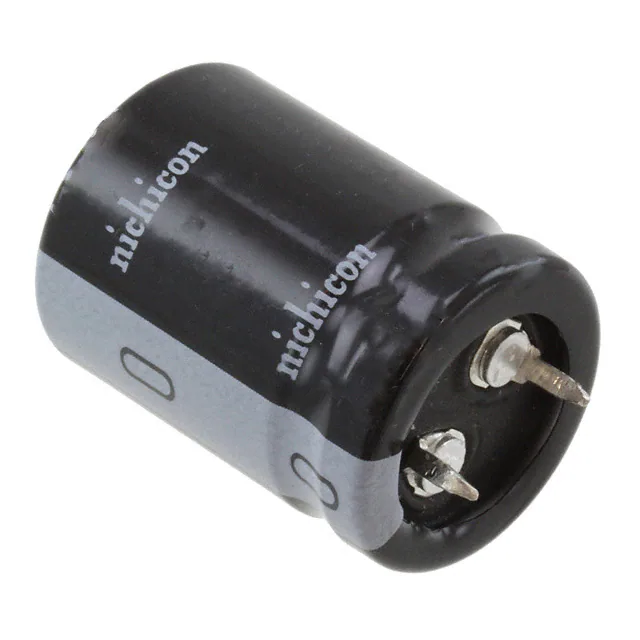

LLS1K152MELZCAP ALUM 1500UF 20% 80V SNAP TH |
737 |
|
Datasheet |
LLS | Bulk | Active | 1500 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.3115 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420HXW68MEFR12.5X30CAP ALUM 68UF 20% 420V RADIAL TH |
424 |
|
Datasheet |
HXW | Bulk | Active | 68 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 855 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX560M400H012CAP ALUM 56UF 20% 400V SNAP TH |
303 |
|
Datasheet |
381LX | Bulk | Active | 56 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 700 mA @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPS1A103MHDCAP ALUM 10000UF 20% 10V RADIAL |
150 |
|
Datasheet |
UPS | Bulk | Not For New Designs | 10000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.349 A @ 120 Hz | 2.7 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
450LXW39MEFR14.5X20CAP ALUM 39UF 20% 450V RADIAL TH |
347 |
|
Datasheet |
LXW | Bulk | Active | 39 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 858 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TKV681UAMCAP ALUM 680UF 20% 35V SMD |
325 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 680 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
UKL1V152KHDCAP ALUM 1500UF 10% 35V RADIAL |
297 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 1500 µF | ±10% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 1.5985 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
100ZLJ390M18X20CAP ALUM 390UF 20% 100V RADIAL |
178 |
|
Datasheet |
ZLJ | Bulk | Active | 390 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.249 A @ 120 Hz | 2.27 A @ 100 kHz | 45 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
.jpg)
|
B43305A2337M000CAP ALUM 330UF 20% 200V SNAP TH |
557 |
|
Datasheet |
B43305 | Bulk | Not For New Designs | 330 µF | ±20% | 200 V | 380mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | - | 520 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400HXW82MEFR10X60CAP ALUM 82UF 20% 400V RADIAL TH |
460 |
|
Datasheet |
HXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.17 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
381LX271M200J012CAP ALUM 270UF 20% 200V SNAP TH |
1,271 |
|
Datasheet |
381LX | Bulk | Active | 270 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
860160478035CAP ALUM 2700UF 20% 25V RADIAL |
380 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 2700 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.796 A @ 120 Hz | 2.85 A @ 100 kHz | 50 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
35YXS3900MEFC18X35.5CAP ALUM 3900UF 20% 35V RADIAL |
198 |
|
Datasheet |
YXS | Bulk | Active | 3900 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.996 A @ 120 Hz | 4.28 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EEU-EE2V680SCAP ALUM 68UF 20% 350V RADIAL TH |
170 |
|
Datasheet |
EE-A | Bulk | Active | 68 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 465.5 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPJ1K821MHDCAP ALUM 820UF 20% 80V RADIAL TH |
123 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 820 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 1.89 A @ 10 kHz | 49 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

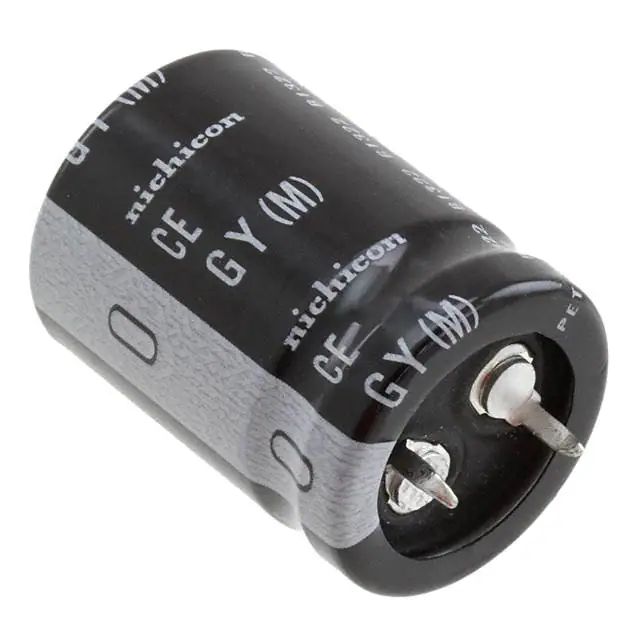

LGY1K122MELZ30CAP ALUM 1200UF 20% 80V SNAP TH |
592 |
|
Datasheet |
LGY | Bulk | Active | 1200 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UBY1K621MHL6TNCAP ALUM 620UF 20% 80V RADIAL TH |
250 |
|
Datasheet |
UBY | Cut Tape (CT) | Active | 620 µF | ±20% | 80 V | 48mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.175 A @ 120 Hz | 2.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
ESMQ401VSN121MP25SCAP ALUM 120UF 20% 400V SNAP TH |
213 |
|
Datasheet |
SMQ | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.459 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215099012E3CAP ALUM 470UF 20% 35V SMD |
894 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 905 mA @ 100 kHz | 77 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|
UPA1V272MHD6TNCAP ALUM 2700UF 20% 35V RADIAL |
510 |
|
Datasheet |
UPA | Cut Tape (CT) | Active | 2700 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.423 A @ 120 Hz | 2.85 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole |
