Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450BXW56MEFR12.5X40CAP ALUM 56UF 20% 450V RADIAL TH |
349 |
|
Datasheet |
BXW | Bulk | Active | 56 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 1.35 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UBY1E752MHLCAP ALUM 7500UF 20% 25V RADIAL |
300 |
|
Datasheet |
UBY | Bulk | Active | 7500 µF | ±20% | 25 V | 20mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.086 A @ 120 Hz | 3.63 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEU-HD1C682BCAP ALUM 6800UF 20% 16V RADIAL |
258 |
|
Datasheet |
HD | Cut Tape (CT) | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.047 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EPAG201ELL391MM35SCAP ALUM 390UF 20% 200V RADIAL |
250 |
|
Datasheet |
PAG | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.86 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS1J272MELZCAP ALUM 2700UF 20% 63V SNAP TH |
234 |
|
Datasheet |
LLS | Bulk | Active | 2700 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

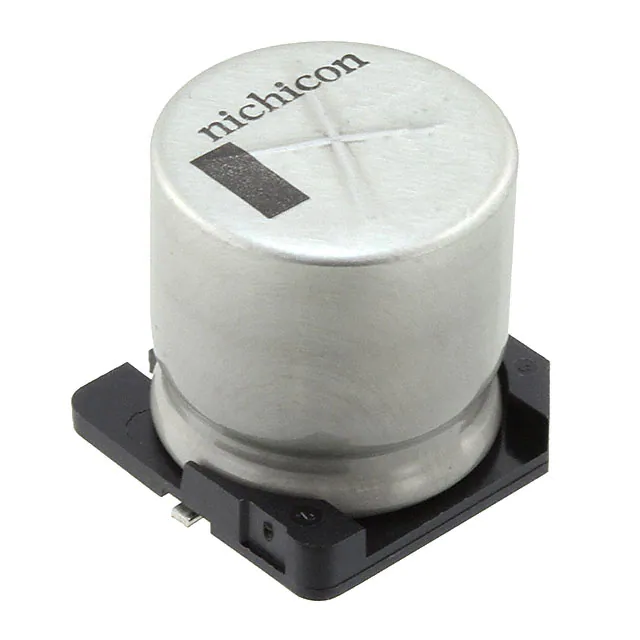

UCX1H561MNS1MSCAP ALUM 560UF 20% 50V SMD |
200 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 560 µF | ±20% | 50 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
860011381011CAP ALUM 68UF 20% 400V RADIAL TH |
136 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 581.4 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EGXF500ELL162ML30SCAP ALUM 1600UF 20% 50V RADIAL |
500 |
|
Datasheet |
GXF | Bulk | Active | 1600 µF | ±20% | 50 V | 23mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.89 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UBX1H471MHL1TOCAP ALUM 470UF 20% 50V RADIAL TH |
488 |
|
Datasheet |
UBX | Cut Tape (CT) | Active | 470 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 480 mA @ 120 Hz | 960 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UPW1A153MHDCAP ALUM 15000UF 20% 10V RADIAL |
188 |
|
Datasheet |
UPW | Bulk | Not For New Designs | 15000 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 3.23 A @ 120 Hz | 3.8 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
865080463017CAP ALUM 2200UF 20% 25V SMD |
121 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 812.5 mA @ 120 Hz | 1.25 A @ 100 kHz | 52 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
400LXW68MEFR14.5X25CAP ALUM 68UF 20% 400V RADIAL TH |
440 |
|
Datasheet |
LXW | Bulk | Active | 68 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 1.298 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAQ2D561MELZ45CAP ALUM 560UF 20% 200V SNAP TH |
238 |
|
Datasheet |
LAQ | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UVR2V101MHDCAP ALUM 100UF 20% 350V RADIAL |
132 |
|
Datasheet |
UVR | Bulk | Active | 100 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 944 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215099515E3CAP ALUM 2200UF 20% 16V SMD |
1,407 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 945 mA @ 100 Hz | - | 50 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
|
MAL215099014E3CAP ALUM 1000UF 20% 35V SMD |
600 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 1000 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 877.5 mA @ 100 Hz | - | 50 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | Surface Mount | |
|
|
420LXW56MEFR14.5X25CAP ALUM 56UF 20% 420V RADIAL TH |
499 |
|
Datasheet |
LXW | Bulk | Active | 56 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-TP1V122CAP ALUM 1200UF 20% 35V RADIAL |
519 |
|
Datasheet |
TP-A | Bulk | Active | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.904 A @ 120 Hz | 1.985 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

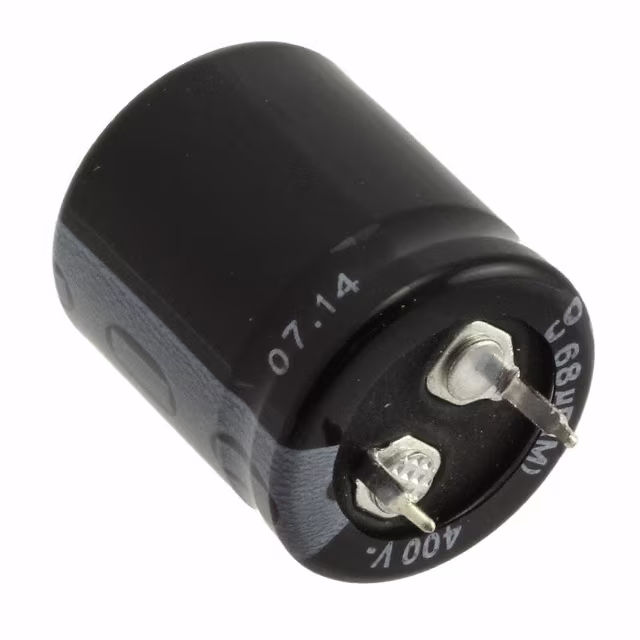

B43254A9686M000CAP ALUM 68UF 20% 400V SNAP TH |
101 |
|
Datasheet |
B43254 | Bulk | Not For New Designs | 68 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGN2Z471MELZ30CAP ALUM 470UF 20% 180V SNAP TH |
251 |
|
Datasheet |
LGN | Bulk | Active | 470 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
