Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860010481026CAP ALUM 5600UF 20% 25V RADIAL |
184 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 5600 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.816 A @ 120 Hz | 3.60448 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ECE-A1AN472UCAP ALUM 4700UF 20% 10V RADIAL |
1,993 |
|
Datasheet |
SU | Bulk | Active | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.04 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UPH2W470MHDCAP ALUM 47UF 20% 450V RADIAL TH |
343 |
|
Datasheet |
UPH | Bulk | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|

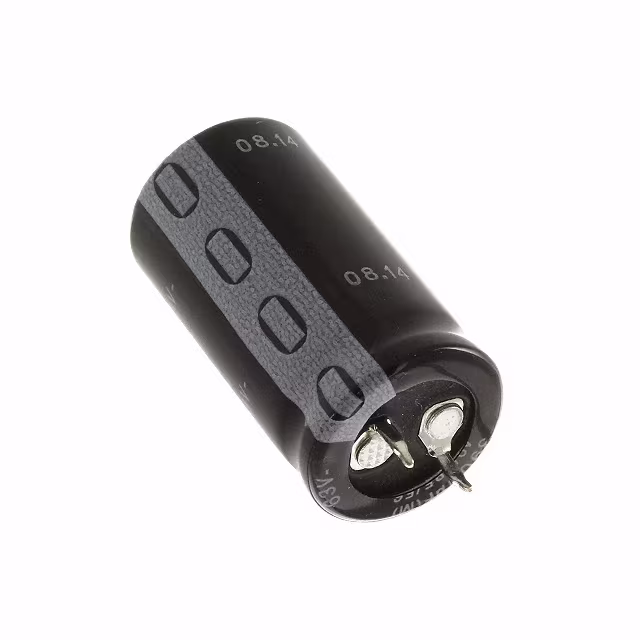

B41231A8398M000CAP ALUM 3900UF 20% 63V SNAP TH |
170 |
|
Datasheet |
B41231 | Bulk | Active | 3900 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ECA-1AHG153CAP ALUM 15000UF 20% 10V RADIAL |
131 |
|
Datasheet |
NHG-A | Bulk | Active | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
EEU-TP1E182SCAP ALUM 1800UF 20% 25V RADIAL |
290 |
|
Datasheet |
TP-A | Bulk | Active | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.904 A @ 120 Hz | 1.985 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
860040780016CAP ALUM 820UF 20% 63V RADIAL TH |
230 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 820 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | 54 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UCZ1K521MNS1MSCAP ALUM 520UF 20% 80V SMD |
970 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 520 µF | ±20% | 80 V | 110mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
B41252A6398M000CAP ALUM 3900UF 20% 50V SNAP TH |
676 |
|
Datasheet |
B41252 | Bulk | Active | 3900 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
865080163018CAP ALUM 6800UF 20% 6.3V SMD |
105 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 812.5 mA @ 120 Hz | 1.25 A @ 100 kHz | 52 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
400BXW82MEFR14.5X35CAP ALUM 82UF 20% 400V RADIAL TH |
390 |
|
Datasheet |
BXW | Bulk | Active | 82 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 1.675 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-TP1H751MCAP ALUM 750UF 20% 50V SMD |
395 |
|
Datasheet |
TP | Tape & Reel (TR) | Active | 750 µF | ±20% | 50 V | 80mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.5 A @ 120 Hz | 2 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEE-FK1H561AVCAP ALUM 560UF 20% 50V SMD |
382 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 560 µF | ±20% | 50 V | 73mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.2075 A @ 120 Hz | 1.61 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
860160480036CAP ALUM 2700UF 20% 25V RADIAL |
250 |
|
Datasheet |
WCAP-ATLL | Cut Tape (CT) | Active | 2700 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.958 A @ 100 kHz | 46 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
860010281029CAP ALUM 12000UF 20% 10V RADIAL |
200 |
|
Datasheet |
WCAP-ATG8 | Cut Tape (CT) | Active | 12000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.025 A @ 120 Hz | 3.872 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
EEE-FK0J682AVCAP ALUM 6800UF 20% 6.3V SMD |
175 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 6800 µF | ±20% | 6.3 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EKMG160ELL103MMP1SCAP ALUM 10000UF 20% 16V RADIAL |
134 |
|
Datasheet |
KMG | Bulk | Active | 10000 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.2248 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEV-TG1E102MCAP ALUM 1000UF 20% 25V SMD |
1,874 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEV-TG1V681MCAP ALUM 680UF 20% 35V SMD |
1,225 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 680 µF | ±20% | 35 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
B43634B9157M000CAP ALUM 150UF 20% 400V SNAP TH |
1,022 |
|
Datasheet |
B43634 | Bulk | Active | 150 µF | ±20% | 400 V | 720mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | - | 1.1 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
