Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
108LBB080M2BCCAP ALUM 1000UF 20% 80V SNAP TH |
2,127 |
|
Datasheet |
LBB | Bulk | Active | 1000 µF | ±20% | 80 V | 248.68mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215266229E3CAP ALUM 22UF 20% 400V RADIAL TH |
1,000 |
|
Datasheet |
152 RMH | Bulk | Active | 22 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 100 Hz | - | 3.8 Ohms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
50TRV820M18X16.5CAP ALUM 820UF 20% 50V SMD |
862 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.3 A @ 100 kHz | 120 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UPZ2D271MHDCAP ALUM 270UF 20% 200V RADIAL |
294 |
|
Datasheet |
UPZ | Bulk | Active | 270 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
860241181005CAP ALUM 68UF 20% 250V RADIAL TH |
200 |
|
Datasheet |
WCAP-AT1H | Cut Tape (CT) | Active | 68 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|

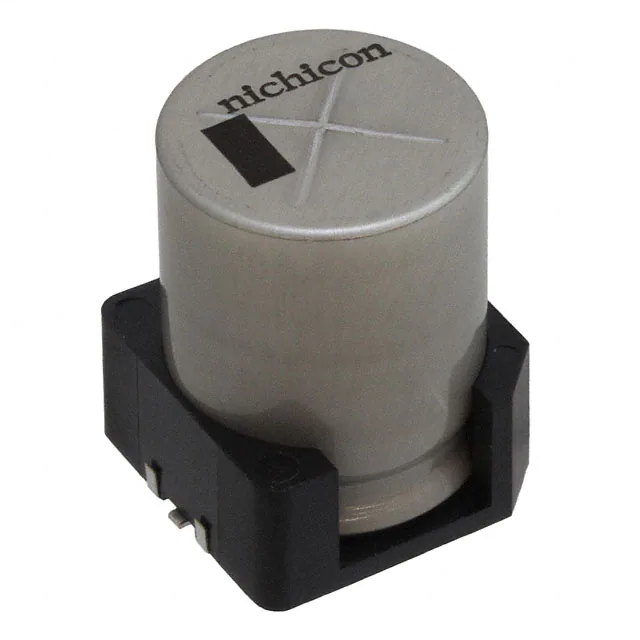

UCX1H102MNS1MSCAP ALUM 1000UF 20% 50V SMD |
174 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 50 V | 50mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 800 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|

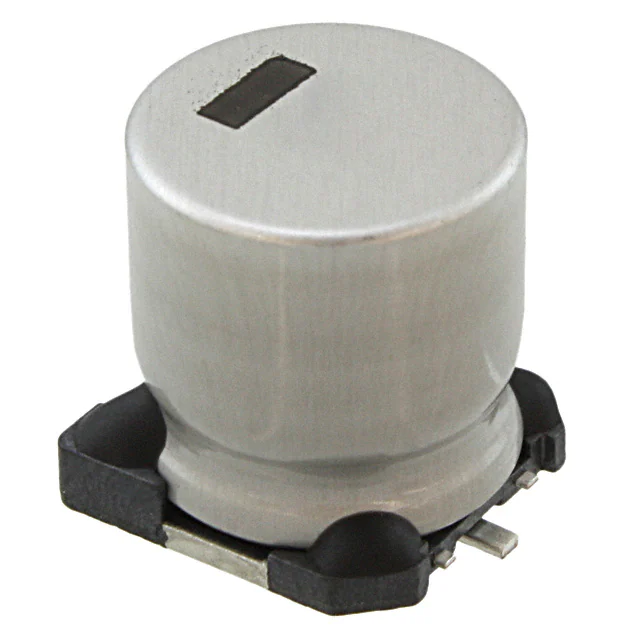

MAL216099702E3CAP ALUM 100UF 20% 80V SMD |
2,292 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 100 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 192 mA @ 100 Hz | - | 650 mOhms | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
UCX1H681MNJ1MSCAP ALUM 680UF 20% 50V SMD |
125 |
|
Datasheet |
UCX | Tape & Reel (TR) | Active | 680 µF | ±20% | 50 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|

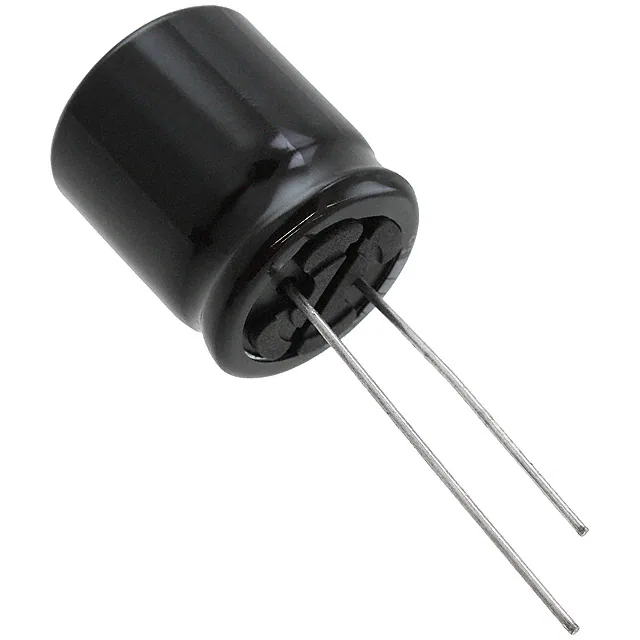

EEU-TP1E222SBCAP ALUM 2200UF 20% 25V RADIAL |
584 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKXJ401EBC820MM25SCAP ALUM 82UF 20% 400V RADIAL TH |
174 |
|
Datasheet |
KXJ | Cut Tape (CT) | Active | 82 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 640 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKHE451ELL101MU40SCAP ALUM 100UF 20% 450V RADIAL |
162 |
|
Datasheet |
KHE | Bulk | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.11 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|

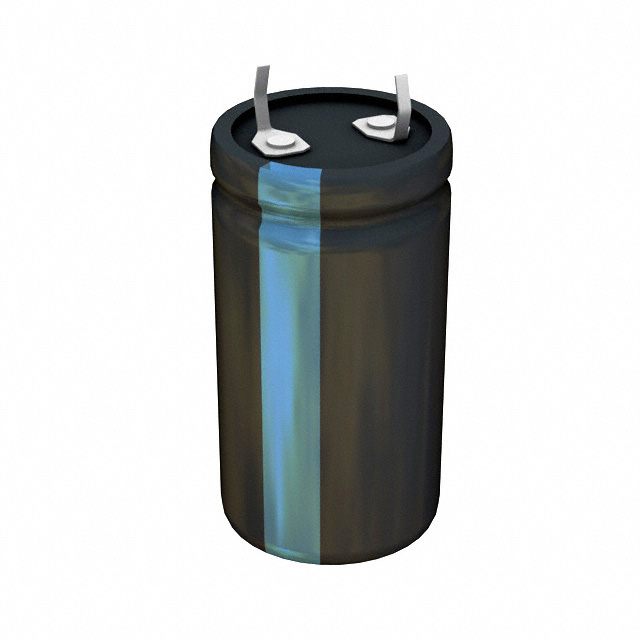

381LX272M063H042CAP ALUM 2700UF 20% 63V SNAP TH |
2,948 |
|
Datasheet |
381LX | Bulk | Active | 2700 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EGXF401ELL510MK40SCAP ALUM 51UF 20% 400V RADIAL TH |
500 |
|
Datasheet |
GXF | Bulk | Active | 51 µF | ±20% | 400 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 507.5 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|

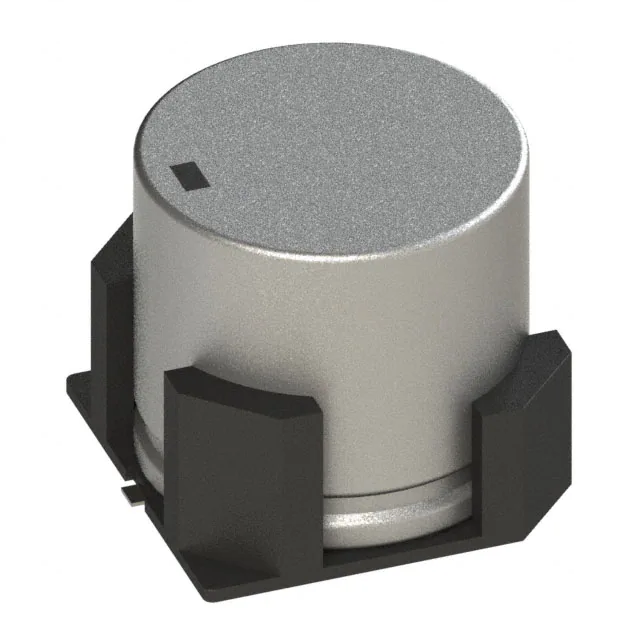

EEE-FK1C472AVCAP ALUM 4700UF 20% 16V SMD |
403 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 4700 µF | ±20% | 16 V | 33mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.673" (17.10mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UBC1H471MNS1MSCAP ALUM 470UF 20% 50V SMD |
270 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 569.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
EEE-FK1E332AVCAP ALUM 3300UF 20% 25V SMD |
265 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | 33mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.673" (17.10mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
EPAG451ELL680ML35SCAP ALUM 68UF 20% 450V RADIAL TH |
483 |
|
Datasheet |
PAG | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 900 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UVY1J222MHDCAP ALUM 2200UF 20% 63V RADIAL |
254 |
|
Datasheet |
UVY | Bulk | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.8975 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
B41252B7129M000CAP ALUM 12000UF 20% 35V SNAP TH |
190 |
|
Datasheet |
B41252 | Bulk | Active | 12000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
160TXW390MEFR16X35CAP ALUM 390UF 20% 160V RADIAL |
408 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 390 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 1.87 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
