Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

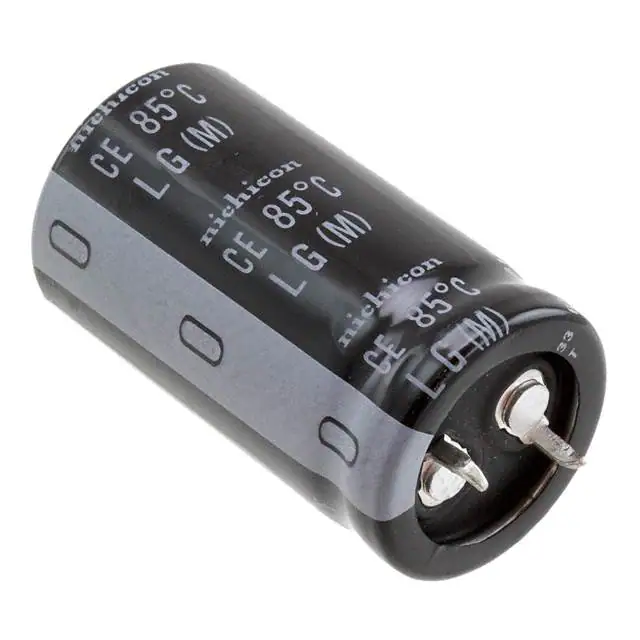

LLG2C122MELZ40CAP ALUM 1200UF 20% 160V SNAP TH |
250 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.575 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400HXW180MEFR18X35CAP ALUM 180UF 20% 400V RADIAL |
198 |
|
Datasheet |
HXW | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.71 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
420LXW120MEFR18X30CAP ALUM 120UF 20% 420V RADIAL |
162 |
|
Datasheet |
LXW | Bulk | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.62 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UVY2W101MHDCAP ALUM 100UF 20% 450V RADIAL |
157 |
|
Datasheet |
UVY | Bulk | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 230 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

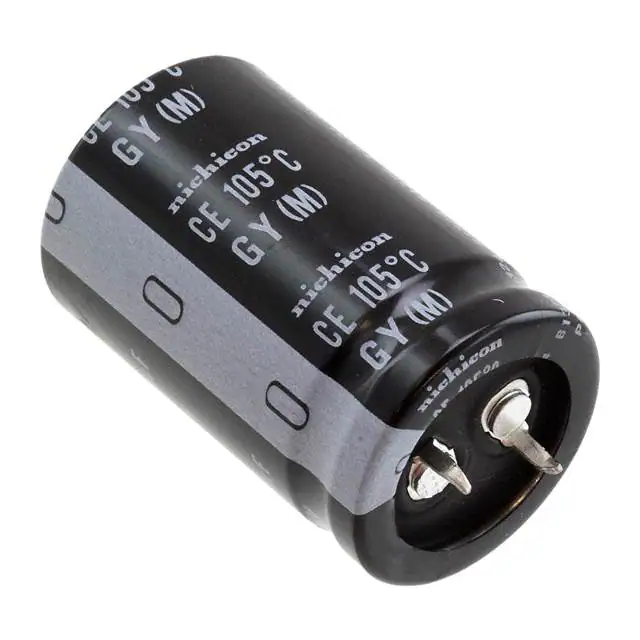

LGY1J392MELA40CAP ALUM 3900UF 20% 63V SNAP TH |
120 |
|
Datasheet |
LGY | Bulk | Active | 3900 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EGXF500ELL332MM40SCAP ALUM 3300UF 20% 50V RADIAL |
199 |
|
Datasheet |
GXF | Bulk | Active | 3300 µF | ±20% | 50 V | 58mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.888 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
450MXG150MEFCSN25X30CAP ALUM 150UF 20% 450V SNAP TH |
109 |
|
Datasheet |
MXG | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.554 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

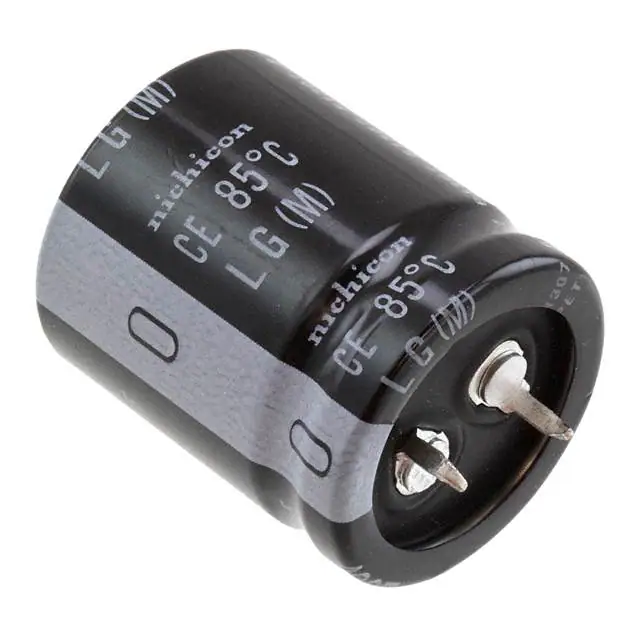

LLG2G221MELA30CAP ALUM 220UF 20% 400V SNAP TH |
1,730 |
|
Datasheet |
LLG | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

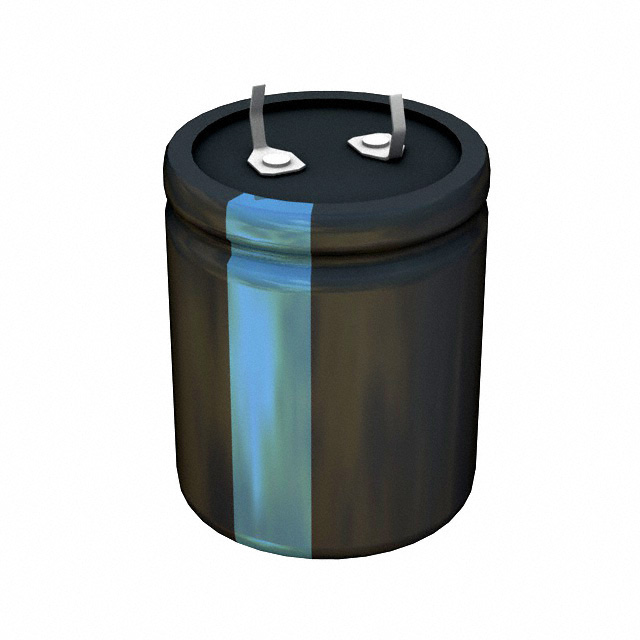

381LX102M200K032CAP ALUM 1000UF 20% 200V SNAP TH |
1,118 |
|
Datasheet |
381LX | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALT22A472AB040CAP ALUM 4700UF 20% 40V SNAP TH |
915 |
|
Datasheet |
ALT22 | Box | Active | 4700 µF | ±20% | 40 V | - | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL211890013E3CAP ALUM 22UF 20% 200V AXIAL TH |
482 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 22 µF | ±20% | 200 V | 3.17Ohm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 210 mA @ 100 Hz | - | 2.22 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
30D257G012DF5ACAP ALUM 250UF 12V AXIAL TH |
339 |
|
Datasheet |
30D | Bulk | Active | 250 µF | -10%, +75% | 12 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
LLG2C102MELA30CAP ALUM 1000UF 20% 160V SNAP TH |
130 |
|
Datasheet |
LLG | Bulk | Active | 1000 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

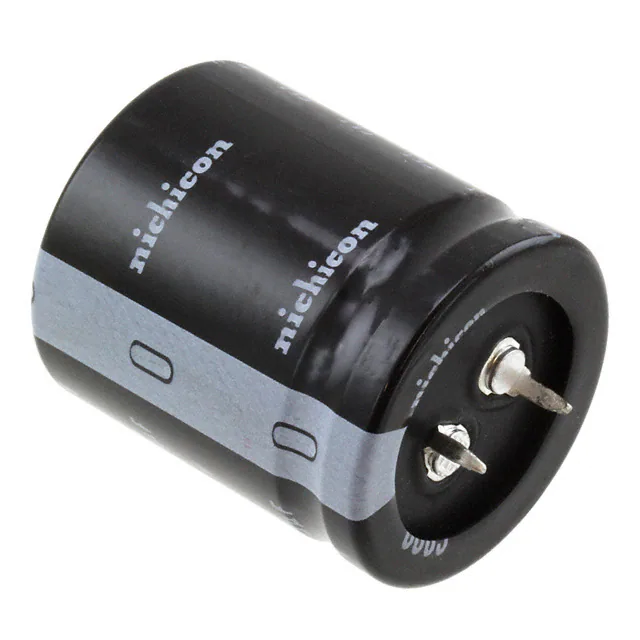

LLS1J562MELBCAP ALUM 5600UF 20% 63V SNAP TH |
102 |
|
Datasheet |
LSS | Bulk | Active | 5600 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43504A9107M000CAP ALUM 100UF 20% 400V SNAP TH |
594 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 880mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 100 Hz | - | 1.09 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMH500VSN682MA30SCAP ALUM 6800UF 20% 50V SNAP TH |
606 |
|
Datasheet |
KMH | Bulk | Active | 6800 µF | ±20% | 50 V | 49mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 3.51 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELG108M200AS4AACAP ALUM 1000UF 20% 200V SNAP TH |
472 |
|
Datasheet |
ELG | Bulk | Active | 1000 µF | ±20% | 200 V | 90mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
200USG1000MEFCSN25X35CAP ALUM 1000UF 20% 200V SNAP TH |
345 |
|
Datasheet |
USG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EPAG421ELL151MM40SCAP ALUM 150UF 20% 420V RADIAL |
236 |
|
Datasheet |
PAG | Bulk | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU1C333MELBCAP ALUM 33000UF 20% 16V SNAP TH |
222 |
|
Datasheet |
LGU | Bulk | Active | 33000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 4.945 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
