Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXV500ELL152MM30SCAP ALUM 1500UF 20% 50V RADIAL |
248 |
|
Datasheet |
LXV | Bulk | Active | 1500 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.404 A @ 120 Hz | 2.34 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
SK221M100STCAP ALUM 220UF 20% 100V RADIAL |
2,937 |
|
Datasheet |
SK | Bulk | Active | 220 µF | ±20% | 100 V | 480mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
380LX151M250H012CAP ALUM 150UF 20% 250V SNAP TH |
2,083 |
|
Datasheet |
380LX | Bulk | Active | 150 µF | ±20% | 250 V | 1.22Ohm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420LXW47MEFR10X35CAP ALUM 47UF 20% 420V RADIAL TH |
453 |
|
Datasheet |
LXW | Bulk | Active | 47 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 968 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400HXW68MEFR14.5X25CAP ALUM 68UF 20% 400V RADIAL TH |
384 |
|
Datasheet |
HXW | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 930 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|

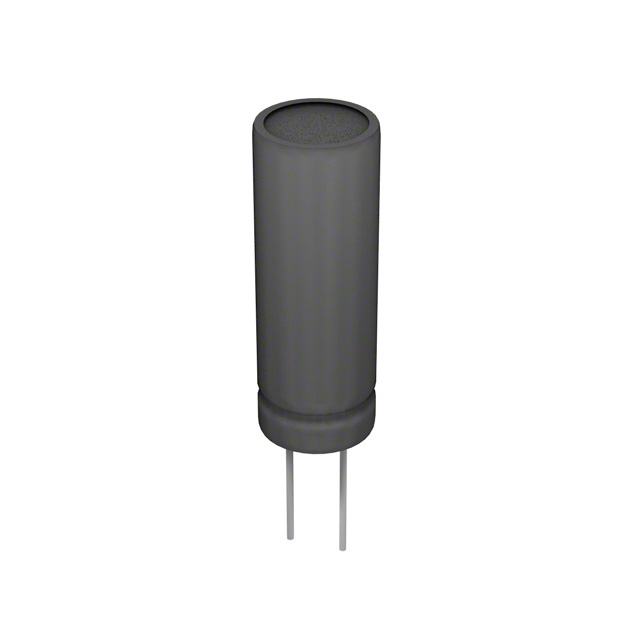

SK471M063STCAP ALUM 470UF 20% 63V RADIAL TH |
3,657 |
|
Datasheet |
SK | Bulk | Active | 470 µF | ±20% | 63 V | 250mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.102" (28.00mm) | - | Through Hole | |
|
LP122M063C1P3CAP ALUM 1200UF 20% 63V SNAP TH |
971 |
|
Datasheet |
LP | Bulk | Active | 1200 µF | ±20% | 63 V | 210mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.188 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
MAL214097111E3CAP ALUM 220UF 20% 50V SMD |
791 |
|
Datasheet |
140 CRH | Bulk | Active | 220 µF | ±20% | 50 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 450 mA @ 100 Hz | - | 230 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
860131280008CAP ALUM 33UF 20% 350V RADIAL TH |
174 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 33 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 275.4 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
400BXW56MEFR14.5X25CAP ALUM 56UF 20% 400V RADIAL TH |
152 |
|
Datasheet |
BXW | Bulk | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 495 mA @ 120 Hz | 1.238 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKZE630ELL152MMP1SCAP ALUM 1500UF 20% 63V RADIAL |
467 |
|
Datasheet |
KZE | Bulk | Active | 1500 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.4 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
63RX301500M18X40CAP ALUM 1500UF 20% 63V RADIAL |
144 |
|
Datasheet |
RX30 | Bulk | Active | 1500 µF | ±20% | 63 V | - | 4000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 1.763 A @ 120 Hz | 2.35 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EEU-FK1A682SCAP ALUM 6800UF 20% 10V RADIAL |
952 |
|
Datasheet |
FK | Bulk | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.112 A @ 120 Hz | 2.64 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL214699602E3CAP ALUM 330UF 20% 25V SMD |
901 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 630 mA @ 100 Hz | 900 mA @ 100 kHz | 97 mOhms | - | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
EEE-HD1V182AMCAP ALUM 1800UF 20% 35V SMD |
365 |
|
Datasheet |
HD | Tape & Reel (TR) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.45 A @ 120 Hz | 1.813 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
80ZLJ470M18X20CAP ALUM 470UF 20% 80V RADIAL TH |
345 |
|
Datasheet |
ZLJ | Bulk | Active | 470 µF | ±20% | 80 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.249 A @ 120 Hz | - | 45 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCY2V680MHD6TNCAP ALUM 68UF 20% 350V RADIAL TH |
228 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 68 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.38 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
860040381018CAP ALUM 4700UF 20% 16V RADIAL |
199 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 3 A @ 100 kHz | 20 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
336CKS450MCAP ALUM 33UF 20% 450V RADIAL TH |
187 |
|
Datasheet |
CKS | Bulk | Active | 33 µF | ±20% | 450 V | 12.0572Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 280 mA @ 120 Hz | 504 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UEP1J331MHDCAP ALUM 330UF 20% 63V RADIAL TH |
144 |
|
Datasheet |
UEP | Bulk | Not For New Designs | 330 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 535 mA @ 120 Hz | 802.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole |
