Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMR401VSN391MA25SCAP ALUM 390UF 20% 400V SNAP TH |
208 |
|
Datasheet |
SMR | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.9315 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
SLPX472M035C1P3CAP ALUM 4700UF 20% 35V SNAP TH |
2,900 |
|
Datasheet |
SLPX | Bulk | Active | 4700 µF | ±20% | 35 V | 113mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.04 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ELXZ350ELL272ML35SCAP ALUM 2700UF 20% 35V RADIAL |
500 |
|
Datasheet |
LXZ | Bulk | Active | 2700 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.3625 A @ 120 Hz | 3.15 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
LLS2W680MELYCAP ALUM 68UF 20% 450V SNAP TH |
448 |
|
Datasheet |
LLS | Bulk | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.0153 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EEV-FK1C332VCAP ALUM 3300UF 20% 16V SMD |
377 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
EEV-FK1A682VCAP ALUM 6800UF 20% 10V SMD |
285 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | 33 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
LLS2V151MELZCAP ALUM 150UF 20% 350V SNAP TH |
233 |
|
Datasheet |
LLS | Bulk | Active | 150 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450HXW56MEFR10X45CAP ALUM 56UF 20% 450V RADIAL TH |
974 |
|
Datasheet |
HXW | Bulk | Active | 56 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UPM1H152MHD6CAP ALUM 1500UF 20% 50V RADIAL |
297 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 1500 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 120 Hz | 2.34 A @ 10 kHz | 29 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UBY1J751MHL6TNCAP ALUM 750UF 20% 63V RADIAL TH |
170 |
|
Datasheet |
UBY | Cut Tape (CT) | Active | 750 µF | ±20% | 63 V | 53mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.284 A @ 120 Hz | 2.14 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
688LBA025M2CCCAP ALUM 6800UF 20% 25V SNAP TH |
189 |
|
Datasheet |
LBA | Bulk | Active | 6800 µF | ±20% | 25 V | 109.71mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.1875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGU2Z221MELYCAP ALUM 220UF 20% 180V SNAP TH |
114 |
|
Datasheet |
LGU | Bulk | Active | 220 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EEE-TK1K101AMCAP ALUM 100UF 20% 80V SMD |
406 |
|
Datasheet |
TK | Tape & Reel (TR) | Active | 100 µF | ±20% | 80 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 262.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
UPJ1H182MHDCAP ALUM 1800UF 20% 50V RADIAL |
295 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 1800 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 2.46 A @ 10 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

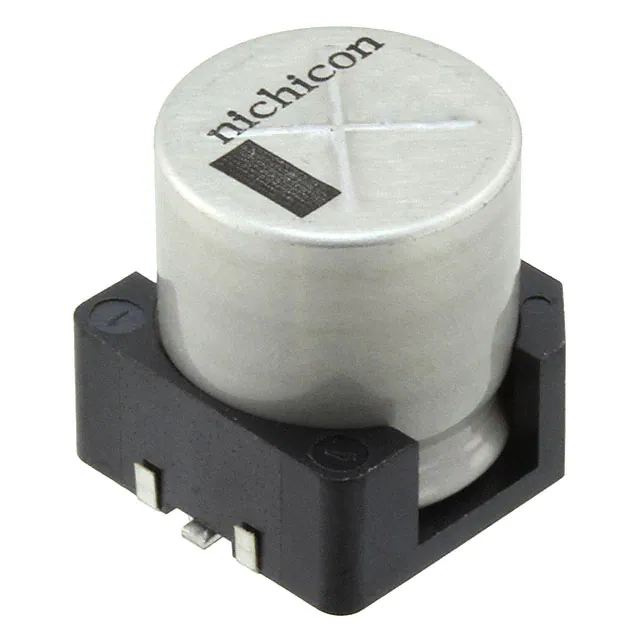

UCX1E102MNS1MSCAP ALUM 1000UF 20% 25V SMD |
3,700 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 25 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
SK102M063STCAP ALUM 1000UF 20% 63V RADIAL |
2,000 |
|
Datasheet |
SK | Bulk | Active | 1000 µF | ±20% | 63 V | 120mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
ELXV101ELL471ML40SCAP ALUM 470UF 20% 100V RADIAL |
450 |
|
Datasheet |
LXV | Bulk | Active | 470 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.1 A @ 120 Hz | 2.2 A @ 100 kHz | 41 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
25PX6800MEFC16X35.5CAP ALUM 6800UF 20% 25V RADIAL |
189 |
|
Datasheet |
PX | Bulk | Active | 6800 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.1965 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UVY2G680MHDCAP ALUM 68UF 20% 400V RADIAL TH |
231 |
|
Datasheet |
UVY | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 276 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
LGY1E562MELZ30CAP ALUM 5600UF 20% 25V SNAP TH |
158 |
|
Datasheet |
LGY | Bulk | Active | 5600 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole |
