Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IWAS4532AGEB140KF1WIRELESS CHARGING RECEIVE COIL |
990 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm Max | 24 @ 100kHz | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
|
|
WRSR-12R0K-13WIRELESE CHARGE COIL 12.0UH 6.0A |
452 |
|
Datasheet |
WRSR | Bulk | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm Max | 33 @ 125kHz | 3A | 6A | - | -25°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|

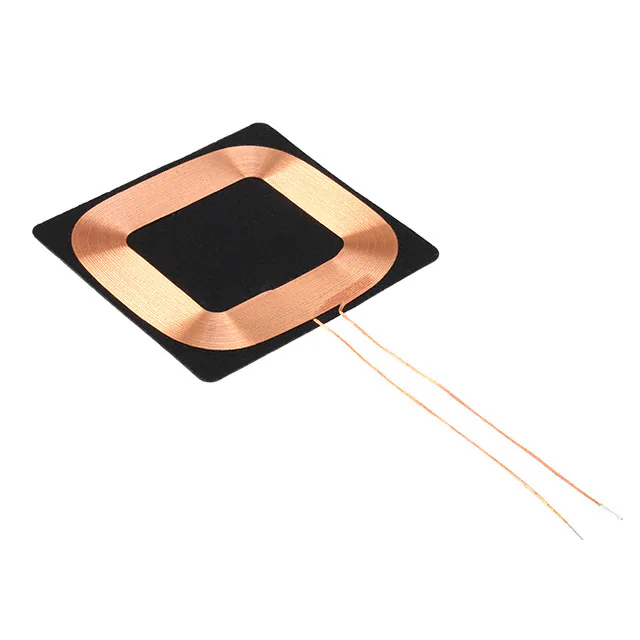

WR444030-16F3-GRX 1 COIL 1 LYR 19UH |
518 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 19µH | - | 700mOhm | - | - | - | - | - | 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.6mm) |
|
|
WRSR-16R7K-11WIRELESE CHARGE COIL 16.7UH 4.0A |
405 |
|
Datasheet |
WRSR | Bulk | Active | Receiver | 1 Coil, 1 Layer | 16.7µH | ±10% | 430mOhm Max | 32 @ 125kHz | 2.5A | 4A | - | -25°C ~ 105°C | 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) |
|
WR555540-16K2-FS2RX 1 COIL 2 LYR 15.8UH |
544 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 15.8µH | - | 100mOhm | 98 @ 100kHz | - | - | - | - | 2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm) |
|
WT505090-10F2-LP-G1TX 1 COIL, 1 LYR 6.3UH |
115 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 2.02" Dia x 0.13" H (51.4mm x 3.4mm) |
|

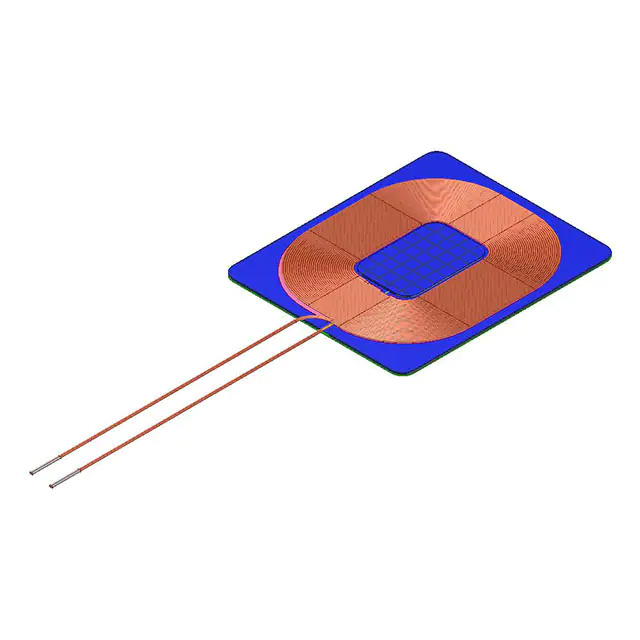

WR383245-17F5-GRX 1 COIL, 1 LYR 13.9UH |
286 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 13.9µH | - | 310mOhm | 28 @ 100kHz | - | - | - | - | 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm) |
|
WT545490-11K2-FSTX 1 COIL 2 LYR 8.9UH |
136 |
|
Datasheet |
WT | Tray | Not For New Designs | Transmitter | 1 Coil, 2 Layer | 8.9µH | - | 60mOhm | 104 @ 100kHz | - | - | - | - | 2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm) |
|
WT282890-16F2-GTX 1 COIL 2 LYR 7.4UH |
139 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 7.4µH | - | 110mOhm | - | - | - | - | - | 1.12" Dia x 0.10" H (28.4mm x 2.4mm) |
|

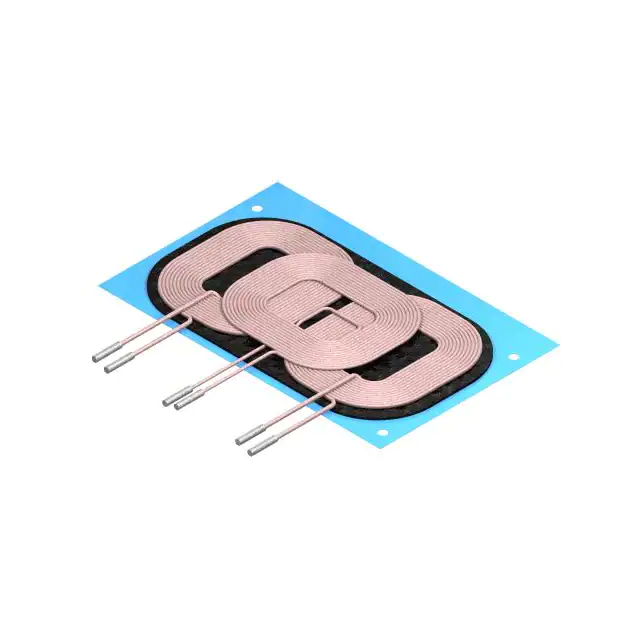

WT1005690-12F2-A6-G1TX COIL UNIT |
148 |
|
Datasheet |
WT | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
760308110TX 1 COIL 2 LAYER 24UH 6A |
103 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 180 @ 125kHz | 6A | 10A | 5MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
|

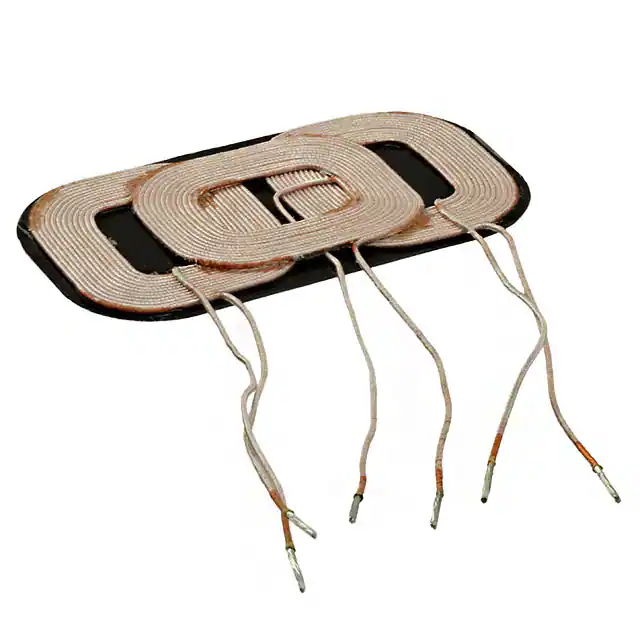

WT1005690-12K2-A6-GTX 3 COIL 1 LAYER 11.5 - 12.5UH |
103 |
|
- |
WT | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 11.5 ~ 12.5µH | - | 80mOhm | - | - | - | - | - | 3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm) |
|
|
IWTX5050DZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
232 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | 90 @ 100kHz | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|
WR464650-10K2-FS3RX 1 COIL, 1 LYR 7.3UH |
133 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | - | 70mOhm | - | - | - | - | - | 1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm) |
|
WR444025-17M6-GRX 1 COIL, 1 LYR 16.7UH |
237 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.7µH | - | 650mOhm | - | - | - | - | - | 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm) |
|
|
IWTX5050FEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
1,300 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.26" H (50.0mm x 6.5mm) |
|
|
IWAS3222CZEB190JR1WIRELESS CHARGE RX RECT 19.6UH 1 |
425 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 28.5 @ 200kHz | 1.2A | 2.4A | - | -40°C ~ 105°C | 1.26" L x 0.87" W x 0.12" H (32.0mm x 22.0mm x 3.0mm) |
|
|
IWTX47R0DAEB6R3JR1WIRELESS CHARGE TX ROUND 6.3UH 7 |
231 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 40mOhm | 190 @ 200kHz | 7A | 22A | - | -40°C ~ 105°C | 1.85" Dia x 0.17" H (47.0mm x 4.2mm) |
|
|
IWTX47R0EBEB240JR1WIRELESS CHARGE TX ROUND 24UH 6A |
229 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±5% | 75mOhm | 200 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.85" Dia x 0.21" H (47.0mm x 5.3mm) |
|
|
IWTX4646DCEB240JR1WIRELESS CHARGE TX SQUARE 24UH 6 |
219 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
