Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1571987-3SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
SRC2-1A-DC-1-GLSWITCH ROCKER SPST 21A 14V |
986 |
|
Datasheet |
SRC2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | cURus |
|
SRC2-1A-DC-1-ALSWITCH ROCKER SPST 21A 14V |
498 |
|
Datasheet |
SRC2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | cURus |
|
|
4-1571986-1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
RA5-1A-DC-2-RLSWITCH ROCKER SPST 20A 14V |
938 |
|
Datasheet |
RA5 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Paddle - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RE2-1F-DC-1-BSWITCH ROCKER SPDT 15A 125V |
455 |
|
Datasheet |
RE2 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20 (AC), 16 (DC) | 125 V | 12 V | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cURus |
|
SRC2-1A-DC-1-ULSWITCH ROCKER SPST 21A 14V |
492 |
|
Datasheet |
SRC2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Blue | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | cURus |
|
RA1-2G-DC-2-BSWITCH ROCKER DPDT 10A 125V |
1,748 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
R13244BNAARocker Switches SWITCH R13-244B |
2,029 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KTG2CNB1BBNNNNSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
KT | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Convex (Reverse V) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.20mm | -20°C ~ 85°C | - |
|
C1572ATAAASWITCH ROCKER MOM-OFF-MOM |
365 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

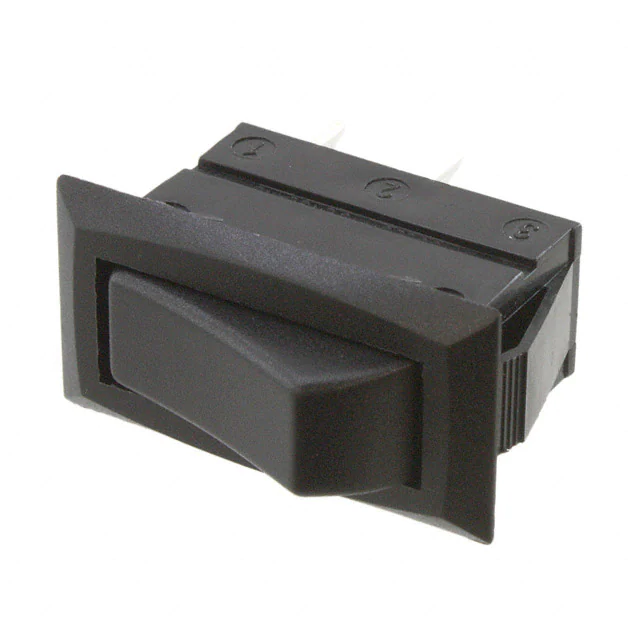

C1300ARBBSWITCH ROCKER SPST 20A 250V |
331 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
|
C1510XLBBRSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
|
C1520AAWWSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
C5503ATBA7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Incandescent, Amber | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 11.60mm | - | CSA, UL |
|
|
C5503ATBG3SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 11.60mm | - | CSA, UL |
|
RA4-2A-DC-2-BSWITCH ROCKER DPST 10A 125V |
339 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
C5503ARBR2SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
|
H5503AABR7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
RA1-2A-DC-2-B-1SWITCH ROCKER DPST 10A 125V |
234 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
