Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRB1-1D-DC-1-NNSWITCH ROCKER SPDT 10A 125V |
961 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
V2D2S00B-GZCAD-100-XACT1SWITCH ROCKER SPST-NO 20A 12V |
346 |
|
Datasheet |
Contura® V | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

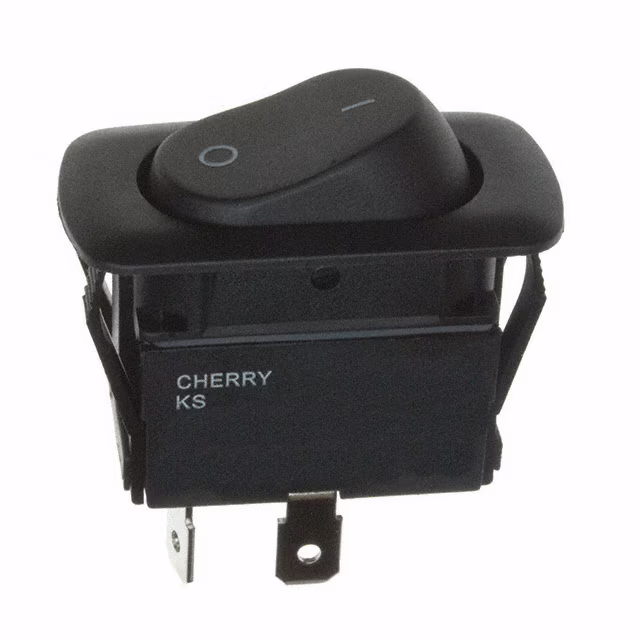

KSF2ANB1BBDSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
KS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
|
C1551SPALBWSWITCH ROCKER DPST-NO 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
H8660VBBB-065WSWITCH ROCKER DPDT 10A 277V |
0 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 277 V | - | Concave (Curved) | Black | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|

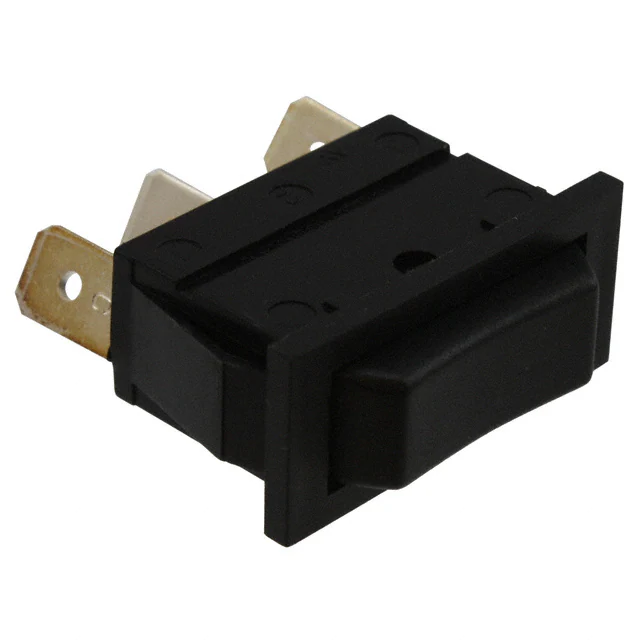

C1520AABB-BSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
GRB263A0BBNNSWITCH ROCKER SPST 16A 125V |
380 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|

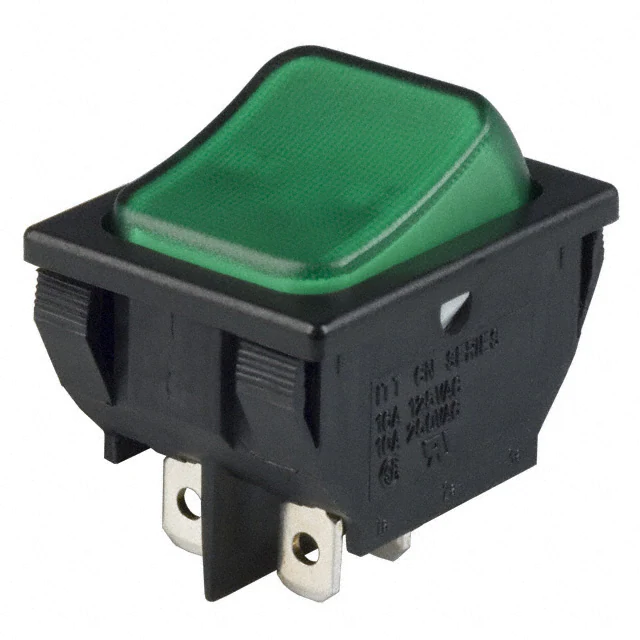

CN202J3GS215Q7SWITCH ROCKER DPST 16A 125V |
317 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
|
2-1571987-7SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
|
RA4-2A-DC-2-RLSWITCH ROCKER DPST 20A 14V |
878 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Red | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
RA4-2A-DC-2-GLSWITCH ROCKER DPST 20A 14V |
861 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Green | No Marking | LED, Green | 14 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|

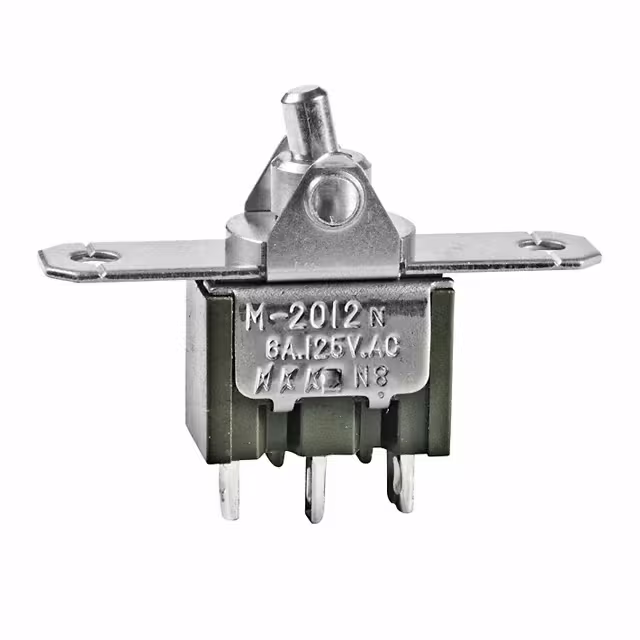

M2012TNW01SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
C1550WABW-464BSWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
SRB2-1A-DC-1-RNLSWITCH ROCKER SPST 21A 14V |
460 |
|
Datasheet |
SRB2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
SRB1-1E-DC-1-NNSWITCH ROCKER SPDT 10A 125V |
990 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|

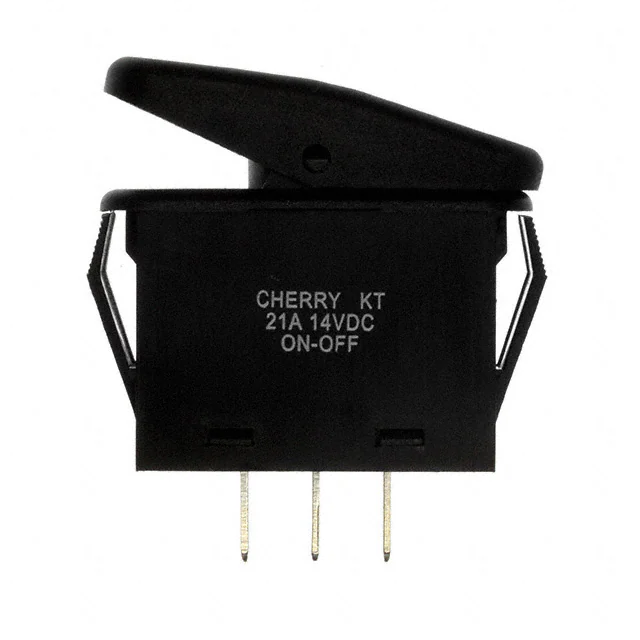

KTG2AMB2BBBRN1SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
KT | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.20mm | -20°C ~ 85°C | - |
|
|
C1570ARBBSWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|
SRB1-1H-DC-1-NNSWITCH ROCKER SPDT 10A 125V |
774 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
GRB292N101BBNN1SWITCH ROCKER SPST-NO 21A 14V |
223 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 21A (DC) | - | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.00mm | -25°C ~ 85°C | - |
|
SRB1-1G-DC-1-NNSWITCH ROCKER SPDT 10A 125V |
646 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
