Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAS1R102VS2RESSWITCH ROCKER SPDT 0.4VA 20V |
499 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
|
1634202-6SWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
PRG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.250" (6.3mm) | Dust Proof | - | Rectangular - 30.20mm x 11.20mm | -20°C ~ 85°C | ENEC, UL |
|
RG1-1A-DC-1-GLSWITCH ROCKER SPST 16A 12V |
2,813 |
|
Datasheet |
RG1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
RG1-1A-DC-1-ALSWITCH ROCKER SPST 16A 12V |
2,049 |
|
Datasheet |
RG1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Amber | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
RG1-1A-DC-1-RLSWITCH ROCKER SPST 16A 12V |
914 |
|
Datasheet |
RG1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
CN22J3AS215PQ8SWITCH ROCKER DPST 16A 125V |
790 |
|
Datasheet |
CN | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
CN22J3RS215PQ8SWITCH ROCKER DPST 16A 125V |
712 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
RA2-1A-DC-2-ULSWITCH ROCKER SPST 20A 14V |
1,925 |
|
Datasheet |
RA2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Blue | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RA2-1A-DC-2-GLSWITCH ROCKER SPST 20A 14V |
956 |
|
Datasheet |
RA2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|

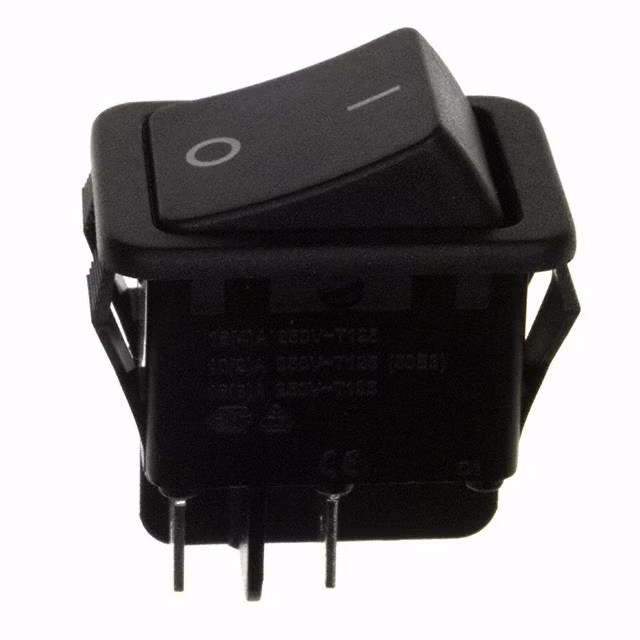

YRM32F2FBBNNSWITCH ROCKER DPST 20A 125V |
107 |
|
Datasheet |
YR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | 0°C ~ 85°C | - |
|
SRC1-1A-DC-1-BSWITCH ROCKER SPST 21A 125V |
984 |
|
Datasheet |
SRC1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20 (AC), 20 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | - |
|
|
H8500XBBBR-ASWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
C1353ALNAFSWITCH ROCKER DPST 16A 250V |
335 |
|
Datasheet |
1350 | - | Active | - | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 22.00mm x 30.00mm | - | CSA, UL |
|
CN201J11S215QSWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
CN | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|

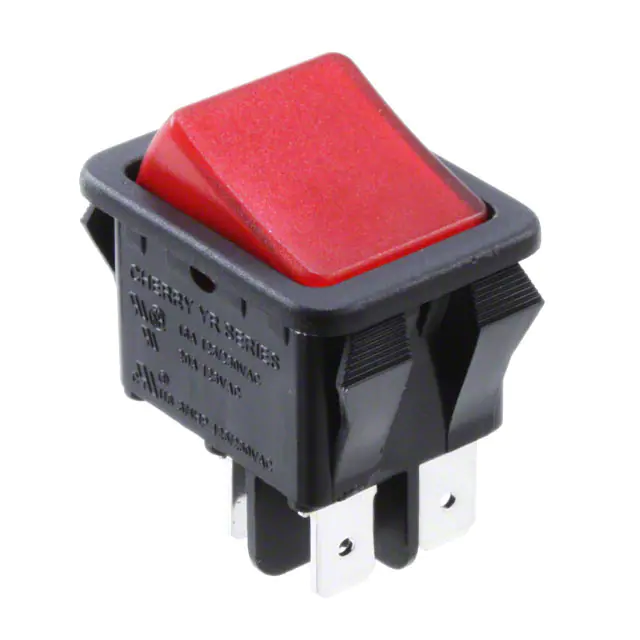

YRM32F2BBRLNSWITCH ROCKER DPST 20A 125V |
0 |
|
- |
YR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | 0°C ~ 85°C | - |
|
|
H8650SPVBBBSWITCH ROCKER DPST 10A 277V |
0 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|
RA4-1A-DC-2-BSWITCH ROCKER SPST 10A 125V |
948 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
H8500VBBR-551WSWITCH ROCKER SPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
H1520AABRSPDT ROCKER SWITCH |
500 |
|
Datasheet |
1500 | Box | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC), 10A (DC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
RG2-1A-DC-1-ALSWITCH ROCKER SPST 16A 12V |
471 |
|
Datasheet |
RG2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
