Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG2-1A-DC-1-GLSWITCH ROCKER SPST 16A 12V |
464 |
|
Datasheet |
RG2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
RG2-1A-DC-1-RLSWITCH ROCKER SPST 16A 12V |
340 |
|
Datasheet |
RG2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
R13135CBBSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
RF3-1D-DC-2-BSWITCH ROCKER SPDT 10A 125V |
2,708 |
|
Datasheet |
RF3 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16 (AC), 16 (DC) | 125 V | 12 V | Flat | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
|
C1520ARBBCL073WSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | MAN O AUTO | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
|
C1520ABBB-730WSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|

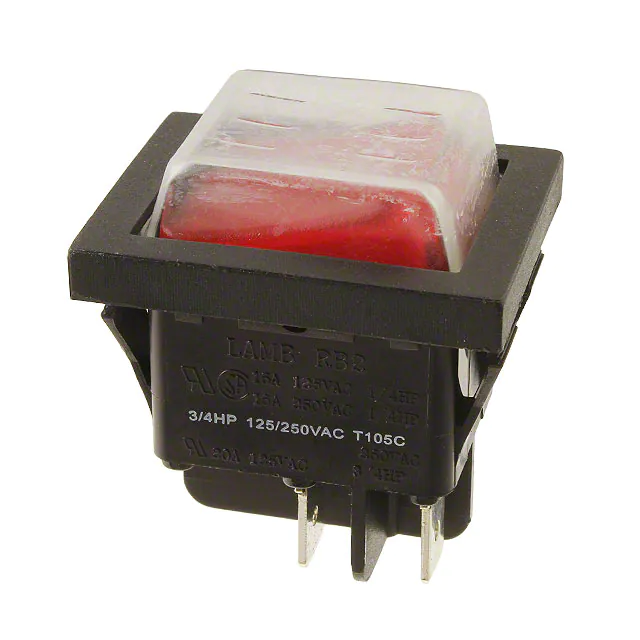

RB242D1021-116/ACC-F02-1SWITCH ROCKER DPST 20A 125V |
640 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
RA1-2F-DC-2-BSWITCH ROCKER DPDT 10A 125V |
920 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
1571987-4SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
SRC1-1B-DC-1-BSWITCH ROCKER SPST-NO 10A 125V |
630 |
|
Datasheet |
SRC1 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 20 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | - |
|
RA901-VB-B-9-WSWITCH ROCKER SPST 16A 125V |
120 |
|
Datasheet |
R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, White | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
GRB238D801BBZSWITCH ROCKER SPDT 16A 125V |
956 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC), 10A (DC) | 125 V | 28 V | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cULus, ENEC |
|
|
C1500WBBB-389WSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
RA1-2F-DC-2-B-5SWITCH ROCKER DPDT 10A 125V |
523 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | - O = | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
H8550VBBB-080WSWITCH ROCKER DPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
RA4-1A-DC-2-ALSWITCH ROCKER SPST 20A 14V |
547 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Amber | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
RA4-1A-DC-2-GLSWITCH ROCKER SPST 20A 14V |
413 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Green | No Marking | LED, Green | 14 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
A105J61ZQ0004SWITCH ROCKER SPDT |
244 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RA4-1A-DC-2-RLSWITCH ROCKER SPST 20A 14V |
212 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Red | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
RBS1R202MZRESSWITCH ROCKER SPDT 0.4VA 20V |
248 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
