Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA1-2A-DC-2-B-2SWITCH ROCKER DPST 10A 125V |
143 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
RA1-2A-DC-2-BSWITCH ROCKER DPST 10A 125V |
109 |
|
Datasheet |
RA1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|

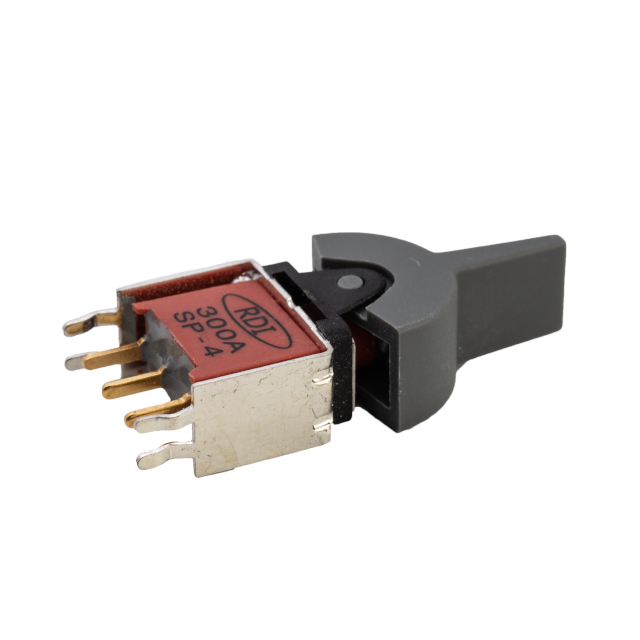

R-3AS4JVS-2M2RE-C-G-NLSWITCH ROCKER SPDT 0.4VA 20V |
475 |
|
Datasheet |
- | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Gray | No Marking | - | - | PC Pin | - | - | - | - | - |
|
R-3AS4JVS-2M2RE-C-P-NLSWITCH ROCKER SPDT 0.4VA 20V |
400 |
|
Datasheet |
- | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | - | No Marking | - | - | PC Pin | - | - | - | - | - |
|
SRB1-1A-DC-1-NNSWITCH ROCKER SPST 10A 125V |
1,346 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
D202J12S202PQASWITCH ROCKER DPST 4A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
RE2-1A-DC-1-RLSWITCH ROCKER SPST 25A 14V |
192 |
|
Datasheet |
RE2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 14 V | Flat - Illuminated | Red | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cURus |
|
1571100-2SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
C6003ALBR3SWITCH ROCKER SPST 20A 277V |
0 |
|
Datasheet |
6000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
RE2-1A-DC-1-GLSWITCH ROCKER SPST 25A 14V |
351 |
|
Datasheet |
RE2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 14 V | Flat - Illuminated | Green | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cURus |
|
RE2-1A-DC-1-ALSWITCH ROCKER SPST 25A 14V |
240 |
|
Datasheet |
RE2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 14 V | Flat - Illuminated | Amber | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cURus |
|
H8550VBBB-BSWITCH ROCKER DPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Antimicrobial | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
SRB1-1B-DC-1-NNSWITCH ROCKER SPST-NO 10A 125V |
907 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
RD2-1A-DC-1-ULSWITCH ROCKER SPST 30A 12V |
1,169 |
|
Datasheet |
RD2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RC-1A-DC-1-ULSWITCH ROCKER SPST 25A 12V |
230 |
|
Datasheet |
RC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Round - Illuminated | Black | No Marking | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 24.00mm Dia | -20°C ~ 65°C | - |
|
|
C5503ABBG3602AWSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
|
R13244ABB-602AWSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
H1522AABRSWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
5-1571986-9SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
|
SRA1-1A-DC-1-NN-2SWITCH ROCKER SPST 10A 125V |
728 |
|
Datasheet |
SRA1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
