Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB2-1A-DC-2-RLSWITCH ROCKER SPST 20A 14V |
3,220 |
|
Datasheet |
RB2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | - |
|
RA2-1A-DC-2-RLSWITCH ROCKER SPST 20A 14V |
1,837 |
|
Datasheet |
RA2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RA2-1A-DC-2-ALSWITCH ROCKER SPST 20A 14V |
1,713 |
|
Datasheet |
RA2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RB2-1A-DC-2-GLSWITCH ROCKER SPST 20A 14V |
1,454 |
|
Datasheet |
RB2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | - |
|
RB2-1A-DC-2-ALSCRW MOUNT OFF-ON AMBER LEDDC |
1,439 |
|
Datasheet |
RB2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | - |
|

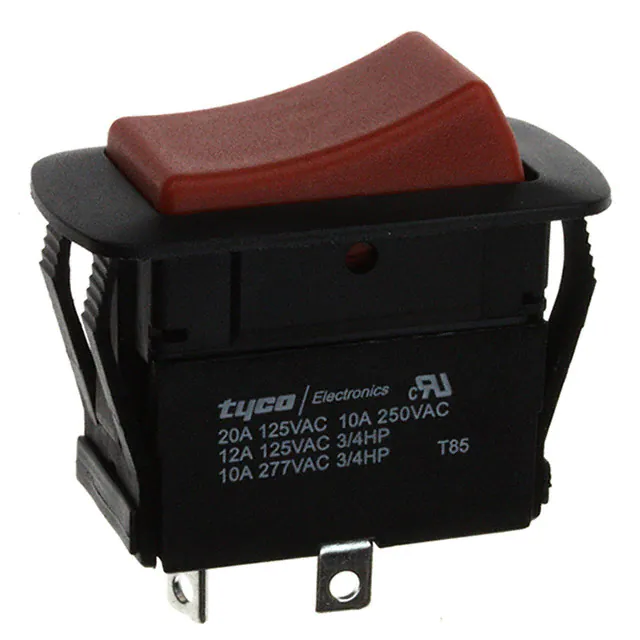

1571095-8SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder Lug | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
C1353ALNAESWITCH ROCKER DPST 16A 250V |
116 |
|
Datasheet |
1350 | - | Active | - | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 22.00mm x 30.00mm | - | CSA, UL |
|
RF3-1A-DC-2-BSWITCH ROCKER SPST 10A 125V |
305 |
|
Datasheet |
RF3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16 (AC), 16 (DC) | 125 V | 12 V | Flat | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.20mm x 13.00mm | -25°C ~ 85°C | CSA, cURus, ENEC |
|
RAD1R102M2QESSWITCH ROCKER DPDT 3A 120V |
339 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
|
D502J12S205PQASWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

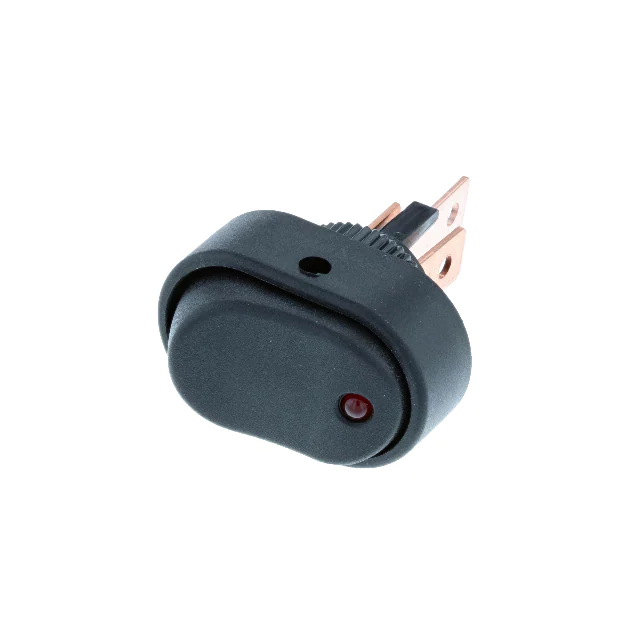

RD2-1A-DC-1-RLSWITCH ROCKER SPST 30A 12V |
1,656 |
|
Datasheet |
RD2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RD2-1A-DC-1-GLSWITCH ROCKER SPST 30A 12V |
762 |
|
Datasheet |
RD2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RD2-1A-DC-1-ALSWITCH ROCKER SPST 30A 12V |
756 |
|
Datasheet |
RD2 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 30A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -25°C ~ 85°C | - |
|
RB1-1B-DC-2-BSWITCH ROCKER SPST-NO 10A 125V |
677 |
|
Datasheet |
RB1 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST-NO | Off-Mom | 16 (AC), 20 (DC) | 125 V | 14 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
H8553VBNACSWITCH ROCK ON-OFF DP ILLUM |
910 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1634201-6SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
PRF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Yellow | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
|
C1500ABWWSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
RA3-1A-DC-2-ALSWITCH ROCKER SPST 20A 14V |
967 |
|
Datasheet |
RA3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|
RA3-1A-DC-2-GLSWITCH ROCKER SPST 20A 14V |
704 |
|
Datasheet |
RA3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
|

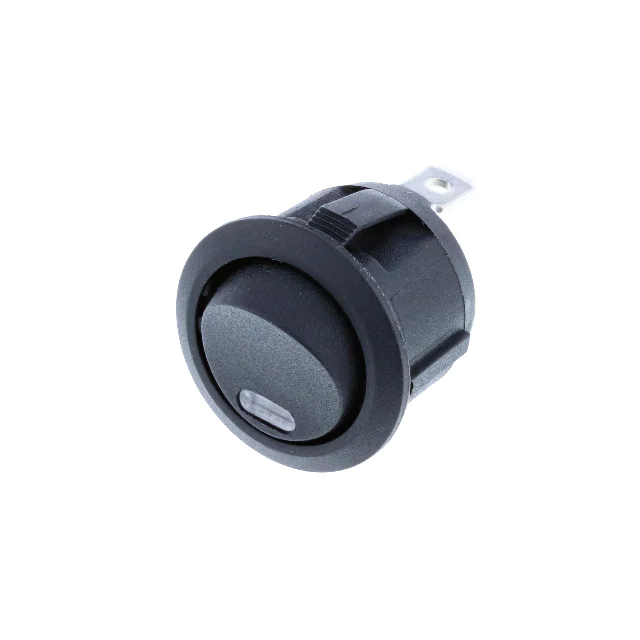

RA3-1A-DC-2-RLSWITCH ROCKER SPST 20A 14V |
507 |
|
Datasheet |
RA3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 14 V | Round - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -25°C ~ 85°C | - |
