Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RE2-1A-DC-1-ULSWITCH ROCKER SPST 25A 14V |
453 |
|
Datasheet |
RE2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 14 V | Flat - Illuminated | Blue | No Marking | LED, Blue | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cURus |
|
C6050ALBW-1197B-G72SWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | White | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | Sealing Boot | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
SRB1-2A-DC-1-NNSWITCH ROCKER DPST 10A 125V |
984 |
|
Datasheet |
SRB1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
|
C1501AABBSWITCH ROCKER SPST-NO 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
C1501WABBSWITCH ROCKER SPST-NO 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|

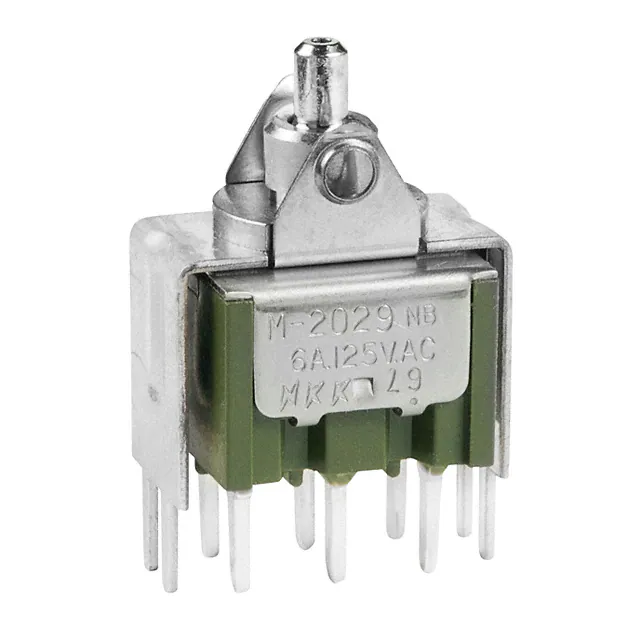

M2029TXW13SWITCH ROCKER DPDT 6A 125V |
1,100 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
C5503AABR7SWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
RA4-2D-DC-2-BSWITCH ROCKER DPDT 10A 125V |
340 |
|
Datasheet |
RA4 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16 (AC), 10 (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cURus, ENEC |
|
|
T1330ALBB-602AWSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
RAD1R102M7RESSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C | - |
|
M2013TNW01SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

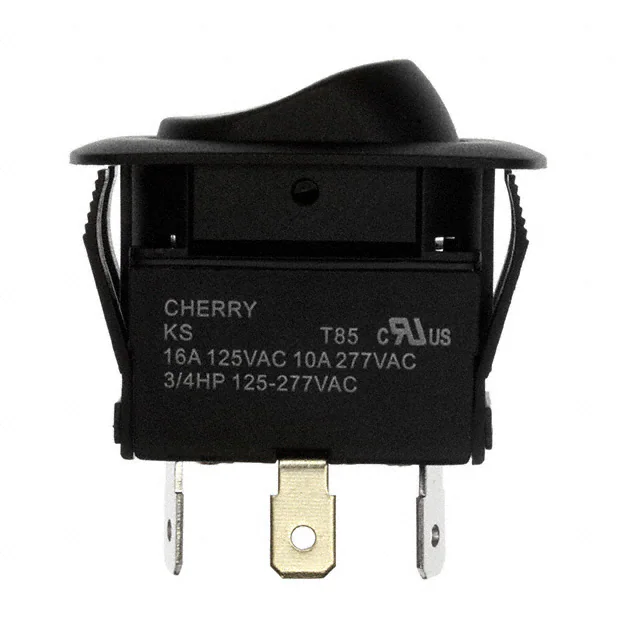

KSF2BNB1BBBSWITCH ROCKER SPDT 16A 125V |
0 |
|
- |
KS | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
GRB238B801BRRL1ZSWITCH ROCKER SPST 16A 12V |
896 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Flat - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.60mm x 13.80mm | -25°C ~ 85°C | cULus, ENEC |
|

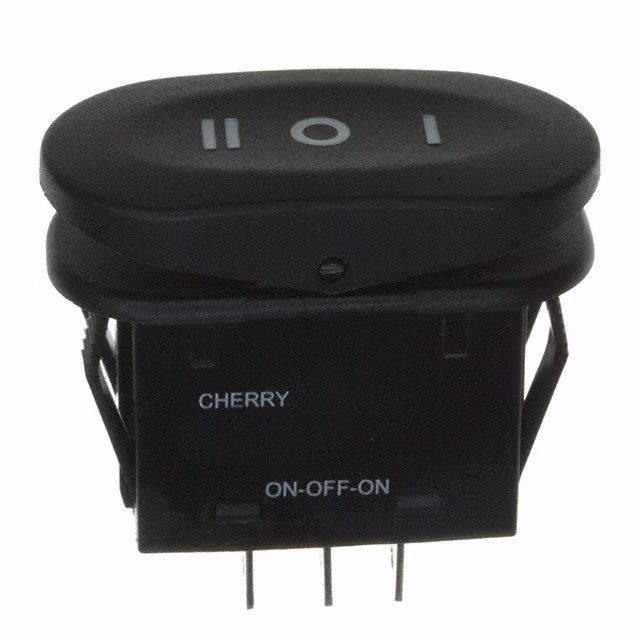

KMD2CNB1BBNNNNSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
KM | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Flat | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|

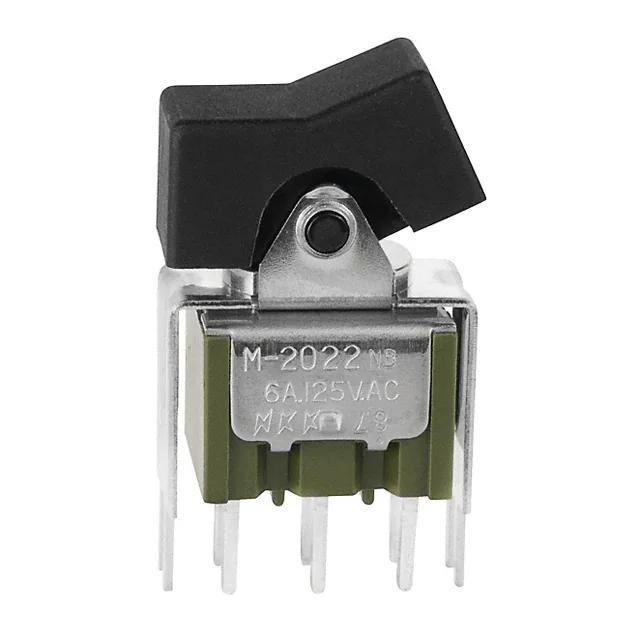

M2022TXW13-DASWITCH ROCKER DPDT 6A 125V |
831 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
1-1571988-3SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
AE | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

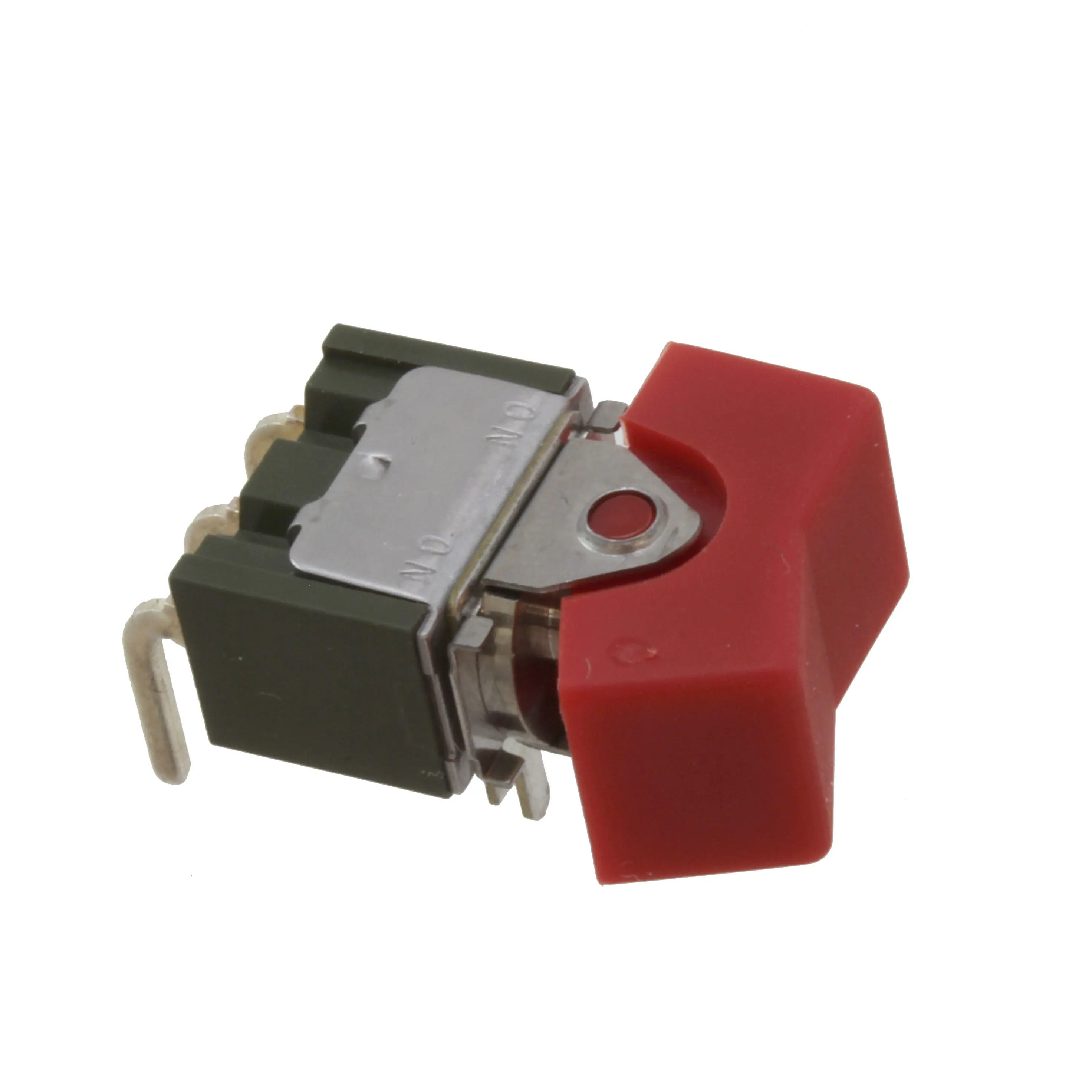

M2012TXW30-DCSWITCH ROCKER SPDT 6A 125V |
1 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
C1570ALBBXED1SWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
SRD2-1A-DC-1-RNNSWITCH ROCKER SPST 21A 125V |
3,281 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-1A-DC-1-BNNSWITCH ROCKER SPST 21A 125V |
861 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
