RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE113NS2186-SRF FILTER BANDSTOP 113MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 113MHz Center | 10MHz | Band Stop | - | 1dB | Chassis Mount | 2.700" L x 1.970" W (68.58mm x 50.04mm) | 0.992" (25.19mm) |
|
AE3550B11506RF FILTER BAND PASS 3.55GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.55GHz Center | 80MHz | Band Pass | - | 1dB | Chassis Mount | 5.040" L x 2.440" W (128.02mm x 61.98mm) | 1.650" (41.91mm) |
|
AE1250B9971RF FILTER BAND PASS 1.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.25GHz Center | 500MHz | Band Pass | - | 2dB | Chassis Mount | 1.750" L x 0.500" W (44.45mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE8000B1386RF FILTER BAND PASS 8GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 8GHz Center | 4GHz | Band Pass | 0.5dB | 1.5dB | Chassis Mount | 2.008" L x 0.945" W (51.00mm x 24.00mm) | 0.433" (11.00mm) |
|
|
AE8016B6879RF FILTER BAND PASS 8.016GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.016GHz Center | 720MHz | Band Pass | - | 1dB | Chassis Mount | 2.750" L x 0.500" W (69.85mm x 12.70mm) | 0.500" (12.70mm) |
|
AE136H9874RF FILTER HI PASS 136MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 136MHz (Cutoff) | 1.864GHz | High Pass | - | 1.5dB | Chassis Mount | 3.820" L x 2.000" W (97.03mm x 50.80mm) | 1.500" (38.10mm) |
|
|
AB802B1251RF FILTER BANDPASS 802MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 802MHz Center | 8MHz | Band Pass | 0.2dB | -1.5dB | Chassis Mount | 8.750" L x 4.750" W (222.25mm x 120.65mm) | 2.100" (53.34mm) |
|
AE5S2038RF FILTER BAND STOP 5MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 5MHz Center | 4MHz | Band Stop | - | 1dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.400" (35.56mm) |
|
|
AB802B1251-SRF FILTER BANDPASS 802MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 802MHz Center | 8MHz | Band Pass | 0.2dB | -1.5dB | Chassis Mount | 8.750" L x 4.750" W (222.25mm x 120.65mm) | 2.100" (53.34mm) |
|

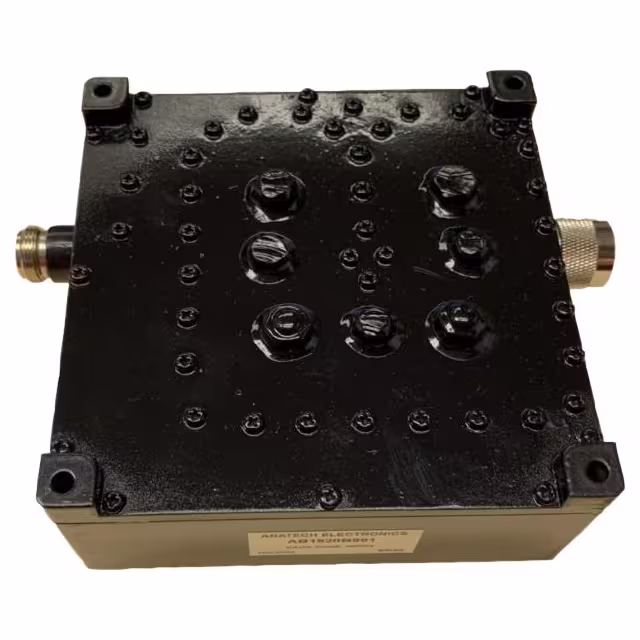

AB1920B991RF FILTER BAND PASS 1.92GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.92GHz Center | 140MHz | Band Pass | - | 0.25dB | Chassis Mount | 4.600" L x 4.600" W (116.84mm x 116.84mm) | 1.862" (47.30mm) |
|
AE10500SSH6605RF FILTER HIGH PASS 10.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10.5GHz (Cutoff) | 17.5GHz | High Pass | - | 2dB | Chassis Mount | 0.591" L x 0.500" W (15.00mm x 12.70mm) | 0.394" (10.00mm) |
|
|
AE976H9922RF FILTER HI PASS 976MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 976MHz (Cutoff) | 1.274GHz | High Pass | - | 3dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.762" (19.35mm) |
|
|
AB2250B738RF FILTER BAND PASS 2.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.25GHz Center | 100MHz | Band Pass | - | 2dB | Chassis Mount | 6.732" L x 1.161" W (171.00mm x 29.50mm) | 0.787" (20.00mm) |
|
|
AE8250B10755RF FILTER BAND PASS 8.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.25GHz Center | 600MHz | Band Pass | - | 1dB | Chassis Mount | 2.295" L x 0.583" W (58.30mm x 14.80mm) | 0.748" (19.00mm) |
|
AE9500SSH6565RF FILTER HI PASS 9.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 9.5GHz (Cutoff) | 14GHz | High Pass | - | 2dB | Chassis Mount | 1.142" L x 0.866" W (29.00mm x 22.00mm) | 0.394" (10.00mm) |
|
|
AE7500B10926RF FILTER BANDPASS 7.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.5GHz Center | 550MHz | Band Pass | - | 0.5dB | Chassis Mount | 4.090" L x 0.820" W (103.89mm x 20.83mm) | 0.422" (10.71mm) |
|
AE1542B9506RF FILTER BAND PASS 1.542GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.542GHz Center | 36MHz | Band Pass | - | 0.7dB | Chassis Mount | 6.000" L x 2.250" W (152.40mm x 57.15mm) | 1.250" (31.75mm) |
|
|
AE902N2246RF FILTER BANDSTOP 902MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 902MHz Center | 20MHz | Band Stop | - | 0.75dB | Chassis Mount | 10.157" L x 3.346" W (258.00mm x 85.00mm) | 2.579" (65.50mm) |
|
|
AE3150B11713RF FILTER BAND PASS 3.15GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 3.15GHz Center | 500MHz | Band Pass | - | 1dB | Chassis Mount | - | - |
|
|
AE2350B11606RF FILTER BAND PASS 2.35GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.35GHz Center | 302MHz | Band Pass | - | 1.2dB | Chassis Mount | 5.020" L x 5.000" W (127.50mm x 127.00mm) | 1.457" (37.00mm) |
