RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

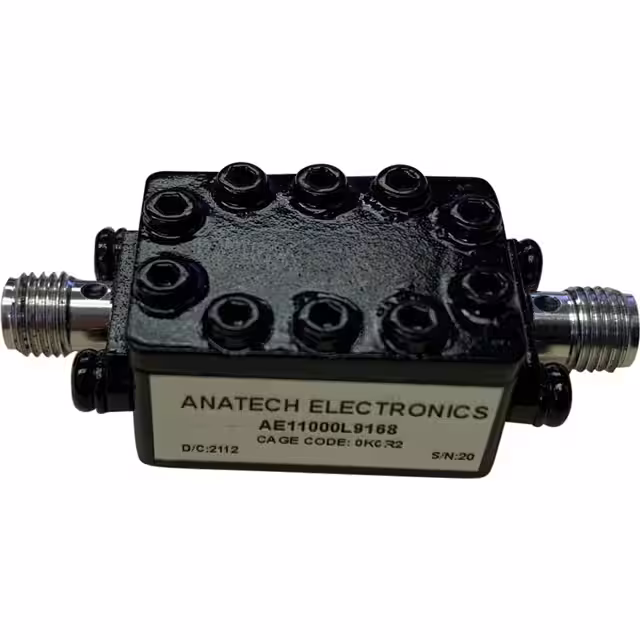

AE11000L9168RF FILTER LOW PASS 11GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 11GHz (Cutoff) | - | Low Pass | 0.2dB | 1dB | Chassis Mount | 1.000" L x 0.701" W (25.40mm x 17.80mm) | 0.512" (13.00mm) |
|
AE9550B11507RF FILTER BANDPASS 9.55GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 9.55GHz Center | 1.6GHz | Band Pass | - | 1dB | Chassis Mount | 4.700" L x 0.900" W (119.38mm x 22.86mm) | 0.700" (17.78mm) |
|
|
AE3900N2230RF FILTER BANDSTOP 3.9GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.9GHz Center | 50MHz | Band Stop | - | 1.5dB | Chassis Mount | 5.551" L x 0.945" W (141.00mm x 24.00mm) | 0.642" (16.30mm) |
|
|
AB5350B742RF FILTER BAND PASS 5.35GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.35GHz Center | 500MHz | Band Pass | - | 2dB | Chassis Mount | 4.724" L x 2.835" W (120.00mm x 72.00mm) | 1.260" (32.00mm) |
|
|
AB2067B624RF FILTER BANDPASS 2.0675GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.0675GHz Center | 12MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 10.071" L x 1.496" W (255.80mm x 38.00mm) | 0.984" (25.00mm) |
|
|
AB1485B1305RF FILTER BAND PASS 1.485GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.485GHz Center | 40MHz | Band Pass | - | 1dB | Chassis Mount | 4.724" L x 2.240" W (120.00mm x 56.90mm) | 1.693" (43.00mm) |
|
AE942WN2287RF FILTER BANDSTOP 942MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 942MHz Center | 35MHz | Band Stop | - | 1.5dB | Chassis Mount | 8.701" L x 3.091" W (221.00mm x 78.50mm) | 1.102" (28.00mm) |
|
|
AB2325B995RF FILTER BAND PASS 2.325GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.325GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.181" L x 5.512" W (157.00mm x 140.00mm) | 1.575" (40.00mm) |
|

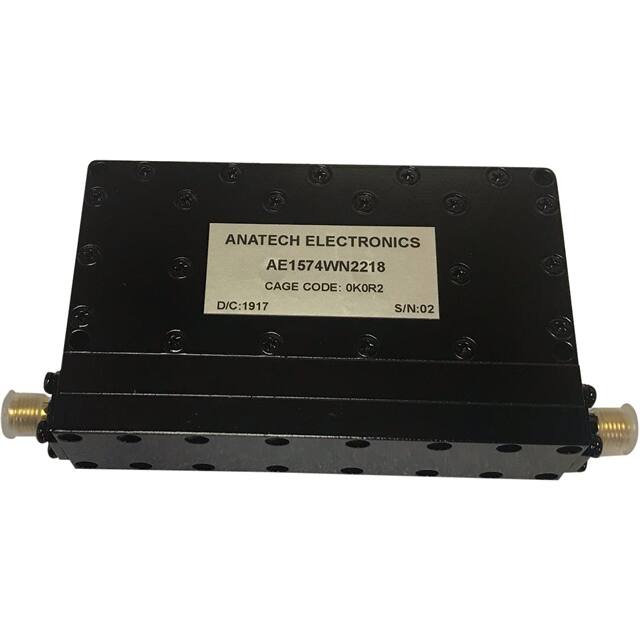

AE1574WN2218RF FILTER BAND STOP 1.574GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.574GHz Center | 19MHz | Band Stop | - | 1.2dB | Chassis Mount | 3.346" L x 2.067" W (85.00mm x 52.50mm) | 0.799" (20.30mm) |
|
|
AB2593B765RF FILTER BAND PASS 2.593GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.593GHz Center | 240MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.181" (30.00mm) |
|
|
AB1795B1225RF FILTER BAND PASS 1.795GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.795GHz Center | - | Band Pass | - | 1.5dB | Chassis Mount | 2.350" L x 2.000" W (59.70mm x 50.80mm) | 1.654" (42.00mm) |
|
|
AB1575B1272RF FILTER BAND PASS 1.575GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 1.575GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 4.606" L x 2.402" W (117.00mm x 61.00mm) | 1.693" (43.00mm) |
|
AE18500SSL1063RF FILTER LOWPASS 18.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 18.5GHz (Cutoff) | - | Low Pass | - | 3dB | Chassis Mount | 0.709" L x 0.669" W (18.00mm x 17.00mm) | 0.394" (10.00mm) |
|
|
AE3B9987RF FILTER BAND PASS 3.1MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 3.1MHz Center | - | Band Pass | - | 8dB | Chassis Mount | 2.500" L x 1.500" W (63.50mm x 38.10mm) | 0.750" (19.05mm) |
|
AB2250B1153RF FILTER BAND PASS 2.25GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.25GHz Center | 100MHz | Band Pass | 0.4dB | 0.8dB | Chassis Mount | 4.567" L x 2.520" W (116.00mm x 64.00mm) | 1.575" (40.00mm) |
|
AE28000B11560RF FILTER BAND PASS 28.5GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 28.5GHz Center | 7GHz | Band Pass | - | 1dB | Chassis Mount | 1.772" L x 0.669" W (45.00mm x 17.00mm) | 0.276" (7.00mm) |
|
|
AB897B599RF FILTER BANDPSS 896.752MHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 896.752MHz Center | 10MHz | Band Pass | - | 1dB | Chassis Mount | 6.575" L x 3.500" W (167.00mm x 88.90mm) | 1.811" (46.00mm) |
|
|
AB8500B1078RF FILTER BANDPASS 8.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.5GHz Center | 1GHz | Band Pass | - | 2dB | Chassis Mount | 6.976" L x 0.630" W (177.20mm x 16.00mm) | 0.984" (25.00mm) |
|
|
AE564B11153RF FILTER BANDPASS 564MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 564MHz Center | 52.4MHz | Band Pass | - | 1dB | Chassis Mount | 6.238" L x 3.253" W (158.45mm x 82.63mm) | 3.079" (78.21mm) |
|
|
AE564B11154RF FILTER BANDPASS 564MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 564MHz Center | 52.4MHz | Band Pass | - | 0.75dB | Chassis Mount | 6.238" L x 3.253" W (158.45mm x 82.63mm) | 3.079" (78.21mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
