RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB1650B518RF FILTER BAND PASS 1.65GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.65GHz Center | 20MHz | Band Pass | - | 2.5dB | Chassis Mount | 6.457" L x 3.307" W (164.00mm x 84.00mm) | 2.244" (57.00mm) |
|
|
AB1937B1352RF FILTER BANDPASS 1.9375GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.9375GHz Center | 15MHz | Band Pass | - | 0.7dB | Chassis Mount | 3.307" L x 1.961" W (84.00mm x 49.80mm) | 1.260" (32.00mm) |
|
AE2441WN2246RF FILTER BAND STOP 2.441GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.441GHz Center | 83.5MHz | Band Stop | - | 1.5dB | Chassis Mount | 14.803" L x 1.673" W (376.00mm x 42.50mm) | 1.417" (36.00mm) |
|
|
AE2450WN2236RF FILTER BAND STOP 2.45GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.45GHz Center | 100MHz | Band Stop | - | 2dB | Chassis Mount | 7.677" L x 1.535" W (195.00mm x 39.00mm) | 0.866" (22.00mm) |
|
AE3300N2253RF FILTER BANDSTOP 3.3GHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 3.3GHz Center | 50MHz | Band Stop | - | - | Chassis Mount | - | - |
|
AE2441WN2246-NFRF FILTER BAND STOP 2.441GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 2.441GHz Center | 83.5MHz | Band Stop | - | 2dB | Chassis Mount | 14.803" L x 1.673" W (376.00mm x 42.50mm) | 1.417" (36.00mm) |
|
|
AB1300B1339RF FILTER BANDPASS 1.3GHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 1.3GHz Center | 800MHz | Band Pass | - | 1dB | Chassis Mount | 5.370" L x 2.874" W (136.40mm x 73.00mm) | 0.945" (24.00mm) |
|
|
AE14615B11495RF FILTER BANDPASS 14.615GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 14.615GHz Center | 430MHz | Band Pass | 0.5dB | 0.7dB | Chassis Mount | 5.984" L x 0.937" W (152.00mm x 23.80mm) | 0.512" (13.00mm) |
|
AE4650B11712RF FILTER BAND PASS 4.65GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 4.65GHz Center | 620MHz | Band Pass | - | 1.5dB | Chassis Mount | 4.200" L x 4.040" W (106.68mm x 102.62mm) | 2.480" (62.99mm) |
|
|
AE539B11611RF FILTER BAND PASS 539MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 539MHz Center | 138MHz | Band Pass | - | 1.5dB | Chassis Mount | 7.992" L x 2.500" W (203.00mm x 63.50mm) | 1.508" (38.30mm) |
|
|
AB1800B492-SRF FILTER BANDPASS 1.8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.8GHz Center | 100MHz | Band Pass | - | 0.25dB | Chassis Mount | 4.600" L x 4.600" W (116.84mm x 116.84mm) | 1.862" (47.30mm) |
|
|
AE238.55B10492RF FILTER BANDPASS 238.55MHZ MOD |
100 |
|
- |
- | Module | Box | Active | 238.55MHz Center | 1.19MHz | Band Pass | - | 2.5dB | Chassis Mount | 5.000" L x 3.250" W (127.00mm x 82.55mm) | 1.500" (38.10mm) |
|
|
AB1780B716RF FILTER BAND PASS 1.78GHZ HEX |
100 |
|
Datasheet |
- | HEX In-Line Module | Box | Active | 1.78GHz Center | 110MHz | Band Pass | - | 1dB | Chassis Mount | 6.378" L x 5.000" W (162.00mm x 127.00mm) | 1.732" (44.00mm) |
|
|
AB8016B871RF FILTER BAND PASS 8.016GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.016GHz Center | 720MHz | Band Pass | - | 1dB | Chassis Mount | 2.750" L x 0.500" W (69.85mm x 12.70mm) | 0.500" (12.70mm) |
|
AE220N2268RF FILTER BANDSTOP 220MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 220MHz Center | 10MHz | Band Stop | - | - | Chassis Mount | 2.700" L x 1.970" W (68.58mm x 50.04mm) | 0.980" (24.89mm) |
|
AE120N2267RF FILTER BANDSTOP 120MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 120MHz Center | 10MHz | Band Stop | - | - | Chassis Mount | 2.700" L x 1.970" W (68.58mm x 50.04mm) | 0.980" (24.89mm) |
|

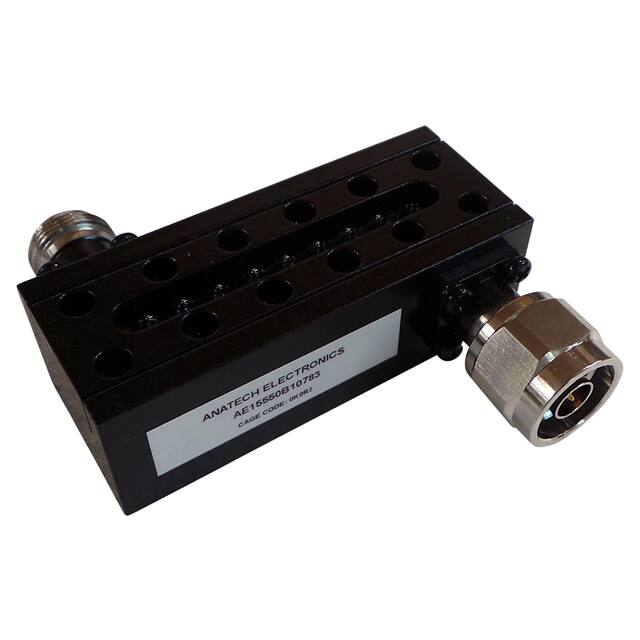

AE15550B10783RF FILTER BAND PASS 15.55GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 15.55GHz Center | 400MHz | Band Pass | 0.5dB | 1dB | Chassis Mount | 3.150" L x 1.252" W (80.00mm x 31.80mm) | 1.012" (25.70mm) |
|
|
AE3540WN2290RF FILTER BAND STOP 3.54GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.54GHz Center | 120MHz | Band Stop | - | 3dB | Chassis Mount | 7.756" L x 1.339" W (197.00mm x 34.00mm) | 0.433" (11.00mm) |
|
|
AE400H9824RF FILTER HI PASS 400MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 400MHz (Cutoff) | 2.1GHz | High Pass | - | 2dB | Chassis Mount | 2.500" L x 0.750" W (63.50mm x 19.05mm) | 0.500" (12.70mm) |
|
AB2515B977RF FILTER BAND PASS 2.515GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.515GHz Center | 30MHz | Band Pass | - | 0.9dB | Chassis Mount | 9.547" L x 4.843" W (242.50mm x 123.00mm) | 1.476" (37.50mm) |
