RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE15250B11496RF FILTER BAND PASS 15.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 15.25GHz Center | 200MHz | Band Pass | 0.25dB | 1dB | Chassis Mount | 5.984" L x 0.937" W (152.00mm x 23.80mm) | 0.512" (13.00mm) |
|
|
AE7347B1383RF FILTER BAND PASS 7.347GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.347GHz Center | 30MHz | Band Pass | - | 2dB | Chassis Mount | 5.220" L x 0.980" W (132.59mm x 24.89mm) | 0.660" (16.76mm) |
|
|
AE123.425B10493RF FILTER BANDPSS 123.425MHZ MOD |
100 |
|
- |
- | Module | Box | Active | 123.425MHz Center | - | Band Pass | - | 1dB | Chassis Mount | 8.500" L x 3.250" W (215.90mm x 82.55mm) | 1.500" (38.10mm) |
|
AE1050B10544RF FILTER BAND PASS 1.05GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.05GHz Center | 500MHz | Band Pass | - | 1dB | Chassis Mount | 5.250" L x 3.500" W (133.35mm x 88.90mm) | 1.250" (31.75mm) |
|

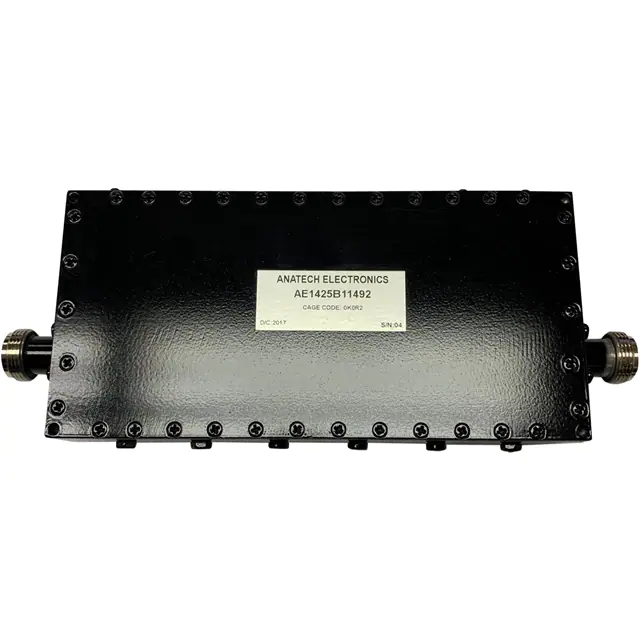

AE1425B11492RF FILTER BAND PASS 1.425GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 1.425GHz Center | 550MHz | Band Pass | 0.25dB | 0.6dB | Chassis Mount | 5.906" L x 2.874" W (150.00mm x 73.00mm) | 0.866" (22.00mm) |
|
AE47000B11572RF FILTER BAND PASS 47GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 47GHz Center | 6GHz | Band Pass | - | 1.7dB | Chassis Mount | 1.575" L x 0.630" W (40.00mm x 16.00mm) | 0.433" (11.00mm) |
|
|
AE128.475B11577RF FILTER BANDPSS 128.475MHZ MOD |
100 |
|
- |
- | Module | Box | Active | 128.475MHz Center | 1MHz | Band Pass | - | 6dB | Chassis Mount | 8.500" L x 3.250" W (215.90mm x 82.55mm) | 1.500" (38.10mm) |
|
|
AE1955B10877RF FILTER BAND PASS 1.955GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.955GHz Center | 490MHz | Band Pass | - | 1dB | Chassis Mount | 7.200" L x 1.900" W (182.88mm x 48.26mm) | 1.030" (26.16mm) |
|
AE8600NS2211RF FILTER 8.6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8.6GHz Center | 500MHz | - | - | 3dB | Chassis Mount | 3.150" L x 0.710" W (80.01mm x 18.03mm) | 0.790" (20.07mm) |
|
|
AB6500B1076RF FILTER BANDPASS 6.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.5GHz Center | 1GHz | Band Pass | - | 1.8dB | Chassis Mount | 5.827" L x 0.669" W (148.00mm x 17.00mm) | 0.984" (25.00mm) |
|
|
AB836B1180-NRF FILTER BAND PASS 836.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 836.5MHz Center | 25MHz | Band Pass | - | 2dB | Chassis Mount | 8.268" L x 3.453" W (210.00mm x 87.70mm) | 2.126" (54.00mm) |
|
AB836B1180RF FILTER BAND PASS 836.5MHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 836.5MHz Center | 25MHz | Band Pass | - | 2dB | Chassis Mount | 8.268" L x 3.453" W (210.00mm x 87.70mm) | 2.126" (54.00mm) |
|
AE7407B1384RF FILTER BAND PASS 7.407GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.407GHz Center | 30MHz | Band Pass | - | 2dB | Chassis Mount | 5.810" L x 0.980" W (147.57mm x 24.89mm) | 0.630" (16.00mm) |
|
AE7205B1382RF FILTER BAND PASS 7.205GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.205GHz Center | 45MHz | Band Pass | - | 2dB | Chassis Mount | 5.220" L x 0.980" W (132.59mm x 24.89mm) | 0.660" (16.76mm) |
|
AE890NS2195RF FILTER 890MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 890MHz Center | 60MHz | - | - | 3dB | Chassis Mount | 7.362" L x 2.756" W (187.00mm x 70.00mm) | 1.114" (28.30mm) |
|

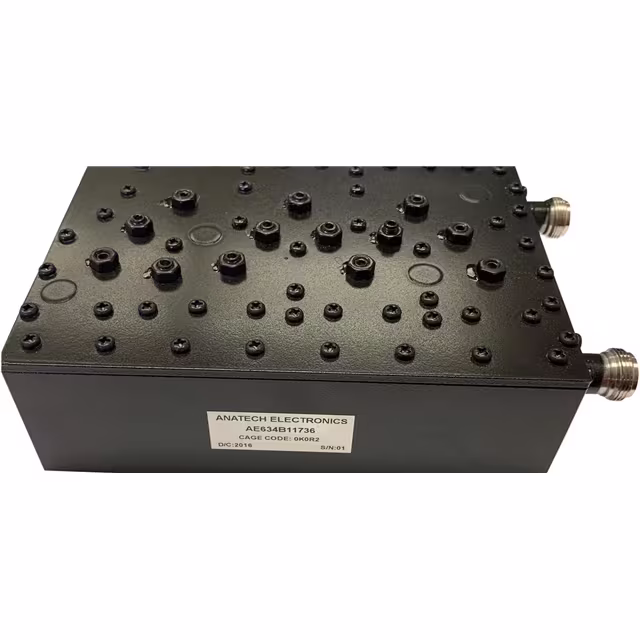

AE634B11736RF FILTER BANDPASS 634MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 634MHz Center | 35MHz | Band Pass | - | 1dB | Chassis Mount | 6.299" L x 4.331" W (160.00mm x 110.00mm) | 2.295" (58.30mm) |
|
|
AE5787WN2245RF FILTER BAND STOP 5.787GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.787GHz Center | 125MHz | Band Stop | - | 3dB | Chassis Mount | 5.394" L x 1.102" W (137.00mm x 28.00mm) | 0.433" (11.00mm) |
|
AE1600N2231RF FILTER BANDSTOP 1.6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.6GHz Center | 5MHz | Band Stop | - | 1.2dB | Chassis Mount | 8.898" L x 1.654" W (226.00mm x 42.00mm) | 1.980" (50.30mm) |
|
|
AB948B940RF FILTER BANDPASS 948MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 948MHz Center | 8MHz | Band Pass | - | 1dB | Chassis Mount | 7.875" L x 4.362" W (200.03mm x 110.80mm) | 3.075" (78.11mm) |
|
|
AE1795B10088RF FILTER BAND PASS 1.795GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.795GHz Center | 130MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 7.940" L x 3.000" W (201.68mm x 76.20mm) | 1.163" (29.54mm) |
