RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE847B11457RF FILTER BANDPASS 847MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 847MHz Center | 30MHz | Band Pass | 0.8dB | 2dB | Chassis Mount | 4.488" L x 2.362" W (114.00mm x 60.00mm) | 1.850" (47.00mm) |
|
|
AB1927B1197RF FILTER BANDPASS 1.9275GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.9275GHz Center | 455MHz | Band Pass | - | 0.5dB | Chassis Mount | 5.492" L x 2.205" W (139.50mm x 56.00mm) | 1.417" (36.00mm) |
|
|
AB2097B1349RF FILTER BANDPASS 2.0975GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.0975GHz Center | 12MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 8.890" L x 1.496" W (225.80mm x 38.00mm) | 0.984" (25.00mm) |
|
|
AB1621B863RF FILTER BANDPSS 1.62175GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.62175GHz Center | 11.5MHz | Band Pass | - | 0.75dB | Chassis Mount | 6.457" L x 3.307" W (164.00mm x 84.00mm) | 1.969" (50.00mm) |
|
|
AE17000B1378RF FILTER BAND PASS 17GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 17GHz Center | 2.7GHz | Band Pass | - | 1dB | Chassis Mount | 2.264" L x 0.551" W (57.50mm x 14.00mm) | 0.413" (10.50mm) |
|
|
AE18070B11071RF FILTER BAND PASS 18.07GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 18.07GHz Center | 4.14GHz | Band Pass | - | 2.4dB | Chassis Mount | 1.220" L x 0.580" W (30.99mm x 14.73mm) | 0.320" (8.13mm) |
|
|
AB18000B1147RF FILTER BAND PASS 18GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 18GHz Center | 4GHz | Band Pass | - | 2dB | Chassis Mount | 1.055" L x 0.500" W (26.80mm x 12.70mm) | 0.500" (12.70mm) |
|
|
AE1950B11529RF FILTER BAND PASS 1.95GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.95GHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 6.693" L x 2.795" W (170.00mm x 71.00mm) | 1.654" (42.00mm) |
|
|
AE30B11034RF FILTER BAND PASS 30MHZ 10DIP |
100 |
|
Datasheet |
- | 10-DIP Module | Box | Active | 30MHz Center | 15MHz | Band Pass | - | 1.5dB | Through Hole | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.600" (15.24mm) |
|
AE6000H9873RF FILTER HIGH PASS 6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6GHz (Cutoff) | 12GHz | High Pass | 0.1dB | 1dB | Chassis Mount | 0.075" L x 0.625" W (1.91mm x 15.88mm) | 0.500" (12.70mm) |
|
AE4000SSH6593RF FILTER HIGH PASS 4GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4GHz (Cutoff) | 19GHz | High Pass | - | 1.5dB | Chassis Mount | 0.984" L x 0.630" W (25.00mm x 16.00mm) | 0.394" (10.00mm) |
|
AE788B6193RF FILTER BANDPASS 788MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 788MHz Center | 375MHz | Band Pass | 0.1dB | 3dB | Chassis Mount | 4.000" L x 1.125" W (101.60mm x 28.58mm) | 0.750" (19.05mm) |
|
AB2140B987RF FILTER BAND PASS 2.14GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.14GHz Center | 60MHz | Band Pass | - | 1.1dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.063" (27.00mm) |
|
AE2000N2232RF FILTER BAND STOP 2GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2GHz Center | 5MHz | Band Stop | - | 1.2dB | Chassis Mount | 8.898" L x 1.654" W (226.00mm x 42.00mm) | 1.980" (50.30mm) |
|
|
AB4500B1054RF FILTER BANDPASS 4.5GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 4.5GHz Center | 1GHz | Band Pass | - | 1dB | Chassis Mount | 4.252" L x 3.386" W (108.00mm x 86.00mm) | 1.181" (30.00mm) |
|
|
AB3500B1053RF FILTER BANDPASS 3.5GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 3.5GHz Center | 1GHz | Band Pass | - | 1dB | Chassis Mount | 5.197" L x 3.909" W (132.00mm x 99.30mm) | 1.181" (30.00mm) |
|
|
AB2500B1055RF FILTER BANDPASS 2.5GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 2.5GHz Center | 1GHz | Band Pass | - | 1dB | Chassis Mount | 5.197" L x 3.150" W (132.00mm x 80.00mm) | 1.181" (30.00mm) |
|

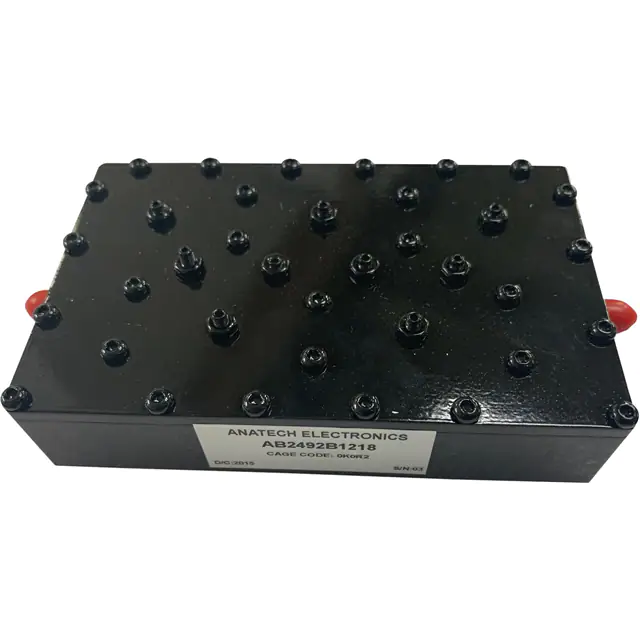

AB2492B1218RF FILTER BANDPSS 2.49202GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.49202GHz Center | 16.5MHz | Band Pass | 0.4dB | 0.8dB | Chassis Mount | 4.370" L x 2.717" W (111.00mm x 69.00mm) | 0.906" (23.00mm) |
|
AB815B899RF FILTER BANDPASS 812MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 812MHz Center | 24MHz | Band Pass | 0.6dB | 1.1dB | Chassis Mount | 4.460" L x 2.240" W (113.28mm x 56.90mm) | 2.325" (59.06mm) |
|
AE16500B11053RF FILTER BAND PASS 16.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 16.5GHz Center | 400MHz | Band Pass | 0.5dB | 3dB | Chassis Mount | 1.600" L x 0.710" W (40.64mm x 18.03mm) | 0.470" (11.94mm) |
