RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE400L8988RF FILTER LOW PASS 400MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 400MHz (Cutoff) | 400MHz | Low Pass | - | 0.3dB | Chassis Mount | 7.500" L x 1.000" W (190.50mm x 25.40mm) | 1.000" (25.40mm) |
|
|
PE8701RF FILTER BAND PASS 2.45GHZ MOD |
71 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2.45GHz Center | 100MHz | Band Pass | - | 1dB | Chassis Mount | 1.799" L x 1.059" W (45.70mm x 26.90mm) | 0.531" (13.50mm) |
|
AE430B11306RF FILTER BANDPASS 430MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 430MHz Center | 50MHz | Band Pass | - | 2dB | Chassis Mount | 4.690" L x 3.190" W (119.13mm x 81.03mm) | 2.760" (70.10mm) |
|
|
AE845N2245RF FILTER BANDSTOP 845MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 845MHz Center | 20MHz | Band Stop | - | 0.75dB | Chassis Mount | 10.157" L x 3.346" W (258.00mm x 85.00mm) | 2.579" (65.50mm) |
|
|
AE718N2244RF FILTER BANDSTOP 718MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 718MHz Center | 20MHz | Band Stop | - | 0.75dB | Chassis Mount | 10.157" L x 3.346" W (258.00mm x 85.00mm) | 2.579" (65.50mm) |
|

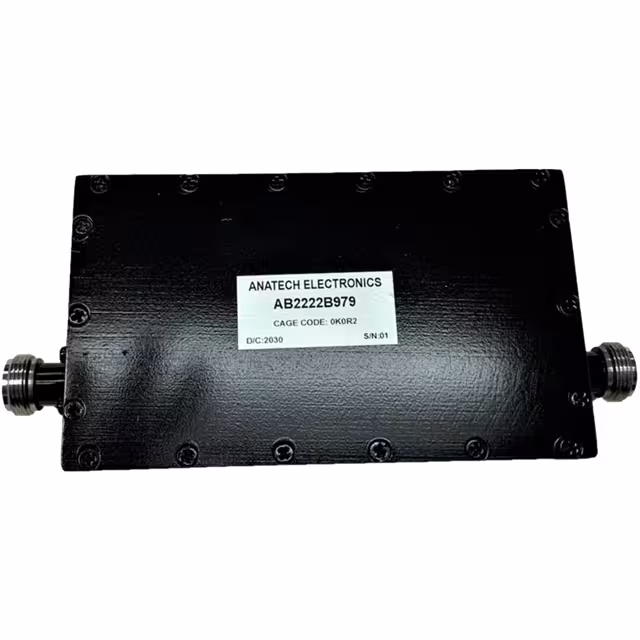

AB2222B979RF FILTER BAND PASS 2.222GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.222GHz Center | 22MHz | Band Pass | - | 2dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|
|
AE930L8812RF FILTER LOW PASS 930MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 930MHz (Cutoff) | 930MHz | Low Pass | - | 0.3dB | Chassis Mount | 7.500" L x 1.000" W (190.50mm x 25.40mm) | 1.000" (25.40mm) |
|

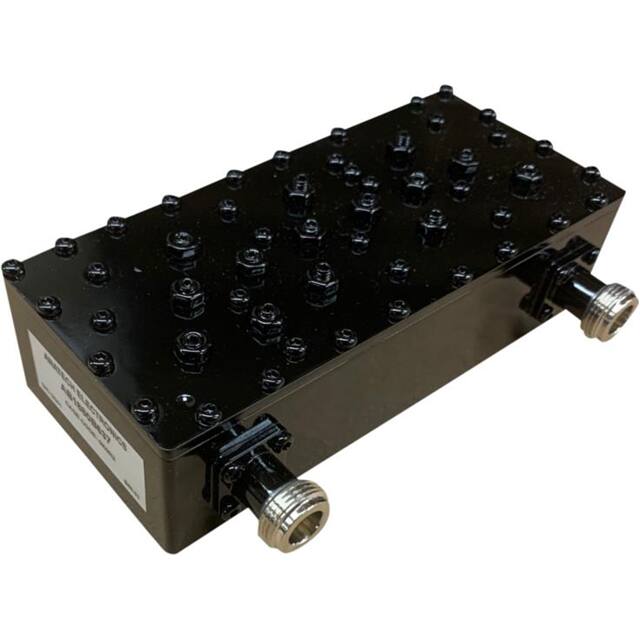

AB1880B637RF FILTER BAND PASS 1.88GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 1.88GHz Center | 60MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 5.512" L x 2.480" W (140.00mm x 63.00mm) | 1.654" (42.00mm) |
|
|
AE512B11151RF FILTER BANDPASS 512MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 512MHz Center | 49.5MHz | Band Pass | - | 1.5dB | Chassis Mount | 7.638" L x 2.949" W (194.00mm x 74.90mm) | 2.677" (68.00mm) |
|
AE3300B10367RF FILTER BANDPASS 3.3GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.3GHz Center | 410MHz | Band Pass | 0.5dB | 1dB | Chassis Mount | 3.500" L x 1.750" W (88.90mm x 44.45mm) | 0.512" (13.00mm) |
|
|
AE2600N2229RF FILTER BANDSTOP 2.6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.6GHz Center | 50MHz | Band Stop | - | 1.5dB | Chassis Mount | 6.496" L x 1.496" W (165.00mm x 38.00mm) | 0.866" (22.00mm) |
|
AB864B1214RF FILTER BAND PASS 864.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 864.5MHz Center | 59MHz | Band Pass | - | 1.5dB | Chassis Mount | 6.181" L x 3.189" W (157.00mm x 81.00mm) | 2.087" (53.00mm) |
|
AB935B903RF FILTER BANDPASS 935MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 935MHz Center | 26MHz | Band Pass | - | 1.5dB | Chassis Mount | 4.724" L x 2.362" W (120.00mm x 60.00mm) | 1.890" (48.00mm) |
|
AB2535B861RF FILTER BAND PASS 2.535GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.535GHz Center | 70MHz | Band Pass | - | 1dB | Chassis Mount | 5.472" L x 2.677" W (139.00mm x 68.00mm) | 1.181" (30.00mm) |
|
AE350B9834RF FILTER BANDPASS 350MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 350MHz Center | 293MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.125" W (101.60mm x 28.58mm) | 0.750" (19.05mm) |
|
AB838B904RF FILTER BANDPASS 838MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 838MHz Center | 67MHz | Band Pass | - | 1dB | Chassis Mount | 6.969" L x 3.583" W (177.00mm x 91.00mm) | 1.969" (50.00mm) |
|
|
AB3412B1253RF FILTER BANDPASS 3.4125GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 3.4125GHz Center | 25MHz | Band Pass | - | 1.6dB | Chassis Mount | 5.157" L x 2.382" W (131.00mm x 60.50mm) | 1.181" (30.00mm) |
|
|
AB2250B1057RF FILTER BAND PASS 2.25GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.25GHz Center | 100MHz | Band Pass | 0.4dB | 0.8dB | Chassis Mount | 4.567" L x 2.520" W (116.00mm x 64.00mm) | 1.587" (40.30mm) |
|
|
AB707B1061RF FILTER BANDPASS 707MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 707MHz Center | 18MHz | Band Pass | - | 2dB | Chassis Mount | 4.724" L x 2.362" W (120.00mm x 60.00mm) | 1.929" (49.00mm) |
|
AB2242B981RF FILTER BAND PASS 2.242GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.242GHz Center | 22MHz | Band Pass | - | 2dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
