RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB2049B1114RF FILTER BANDPASS 2.0495GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.0495GHz Center | 20MHz | Band Pass | 0.5dB | 2.5dB | Chassis Mount | 10.071" L x 1.496" W (255.80mm x 38.00mm) | 0.984" (25.00mm) |
|
AE1250SSH6582RF FILTER HIGH PASS 1.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.25GHz (Cutoff) | 10.75GHz | High Pass | - | 1.5dB | Chassis Mount | 2.047" L x 0.807" W (52.00mm x 20.50mm) | 0.394" (10.00mm) |
|
|
AB1780B912RF FILTER BAND PASS 1.78GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.78GHz Center | 110MHz | Band Pass | - | 1.2dB | Chassis Mount | 5.906" L x 4.134" W (150.00mm x 105.00mm) | 1.732" (44.00mm) |
|

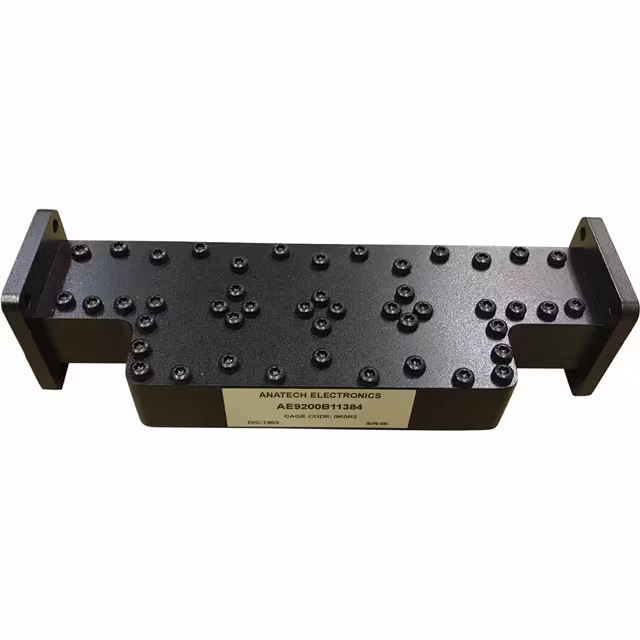

AE9200B11384RF FILTER BANDPASS 9.2GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 9.2GHz Center | 600MHz | Band Pass | - | 0.8dB | Chassis Mount | 6.693" L x 2.360" W (170.00mm x 59.95mm) | 0.806" (20.46mm) |
|
|
AE420B11449RF FILTER BANDPASS 420MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 420MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 4.390" L x 3.602" W (111.50mm x 91.50mm) | 2.913" (74.00mm) |
|
|
AE456B11450RF FILTER BAND PASS 456.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 456.5MHz Center | 11MHz | Band Pass | - | 1dB | Chassis Mount | 4.390" L x 3.602" W (111.50mm x 91.50mm) | 2.913" (74.00mm) |
|
AB1737B1159RF FILTER BANDPASS 1.7375GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.7375GHz Center | 235MHz | Band Pass | - | 1dB | Chassis Mount | 4.724" L x 1.220" W (120.00mm x 31.00mm) | 0.957" (24.30mm) |
|
|
AE806WN2233RF FILTER BANDSTOP 806MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 806MHz Center | 30MHz | Band Stop | - | 1dB | Chassis Mount | 9.409" L x 3.484" W (239.00mm x 88.50mm) | 1.102" (28.00mm) |
|
|
AE5B11035RF FILTER BAND PASS 5MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5MHz Center | 4MHz | Band Pass | - | 1dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AB1200B1243RF FILTER BANDPASS 1.2GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 1.2GHz Center | 400MHz | Band Pass | - | 2dB | Chassis Mount | 4.055" L x 2.087" W (103.00mm x 53.00mm) | 1.102" (28.00mm) |
|
AE8000SSH6601RF FILTER HIGH PASS 8GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 8GHz (Cutoff) | 20GHz | High Pass | - | 1.5dB | Chassis Mount | 0.748" L x 0.591" W (19.00mm x 15.00mm) | 0.394" (10.00mm) |
|
|
AE803NS2120RF FILTER BANDSTOP 803MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 803MHz Center | 10MHz | Band Stop | - | 3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE250-731NS2119RF FILTER BANDSTOP 534MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 534MHz Center | 10MHz | Band Stop | - | 3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE1350N2257RF FILTER BAND STOP 1.35GHZ MOD |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1.35GHz Center | 100MHz | Band Stop | - | - | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE7500SSH6562RF FILTER HI PASS 7.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.5GHz (Cutoff) | 17GHz | High Pass | - | 2dB | Chassis Mount | 1.181" L x 0.827" W (30.00mm x 21.00mm) | 0.394" (10.00mm) |
|
|
AE1747B11459RF FILTER BANDPASS 1.7475GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.7475GHz Center | 75MHz | Band Pass | 0.8dB | 2dB | Chassis Mount | 3.701" L x 1.969" W (94.00mm x 50.00mm) | 0.917" (23.30mm) |
|
|
AE1621B11345-NRF FILTER BANDPASS 1.621GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 1.621GHz Center | 10.5MHz | Band Pass | - | 1dB | Chassis Mount | 2.244" L x 2.244" W (57.00mm x 57.00mm) | 1.654" (42.00mm) |
|
|
AE1621B11345-SRF FILTER BANDPASS 1.621GHZ TNC |
99 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 1.621GHz Center | 10.5MHz | Band Pass | - | 1dB | Chassis Mount | 2.244" L x 2.244" W (57.00mm x 57.00mm) | 1.654" (42.00mm) |
|
|
AE480B11318RF FILTER BANDPASS 480MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 480MHz Center | 40MHz | Band Pass | - | 3dB | Chassis Mount | 5.709" L x 2.953" W (145.00mm x 75.00mm) | 2.677" (68.00mm) |
|
|
AE113NS2186RF FILTER BANDSTOP 113MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 113MHz Center | 10MHz | Band Stop | - | 1dB | Chassis Mount | 2.700" L x 1.970" W (68.58mm x 50.04mm) | 0.992" (25.19mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
