RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE28889B11676RF FILTER BANDPASS 28.889GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 28.889GHz Center | 14.222GHz | Band Pass | - | 2.5dB | Chassis Mount | 2.004" L x 0.748" W (50.90mm x 19.00mm) | 0.327" (8.30mm) |
|
AE187B10495RF FILTER BAND PASS 187.5MHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 187.5MHz Center | 3MHz | Band Pass | - | 2dB | Chassis Mount | 4.000" L x 1.125" W (101.60mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AE3500SSH6591RF FILTER HI PASS 3.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.5GHz (Cutoff) | 19.5GHz | High Pass | - | 1.5dB | Chassis Mount | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
AE2275B10976RF FILTER BAND PASS 2.275GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.275GHz Center | 50MHz | Band Pass | - | 2dB | Chassis Mount | 10.098" L x 1.512" W (256.50mm x 38.40mm) | 0.750" (19.05mm) |
|
AB2350B490-NFRF FILTER BAND PASS 2.35GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.35GHz Center | 100MHz | Band Pass | - | 1.7dB | Chassis Mount | 3.543" L x 1.811" W (90.00mm x 46.00mm) | 0.827" (21.00mm) |
|
|
AB2355B992RF FILTER BAND PASS 2.355GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.355GHz Center | 10MHz | Band Pass | - | 1dB | Chassis Mount | 6.693" L x 5.512" W (170.00mm x 140.00mm) | 2.126" (54.00mm) |
|
|
AB2350B490-TFRF FILTER BANDPASS 2.35GHZ TNC |
100 |
|
Datasheet |
- | TNC In-Line Module | Box | Active | 2.35GHz Center | 100MHz | Band Pass | - | 1.7dB | Chassis Mount | 3.543" L x 1.811" W (90.00mm x 46.00mm) | 1.063" (27.00mm) |
|
|
AB2592B763-NFRF FILTER BAND PASS 2.592GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.592GHz Center | 195MHz | Band Pass | 0.2dB | 0.35dB | Chassis Mount | 2.205" L x 2.205" W (56.00mm x 56.00mm) | 1.181" (30.00mm) |
|

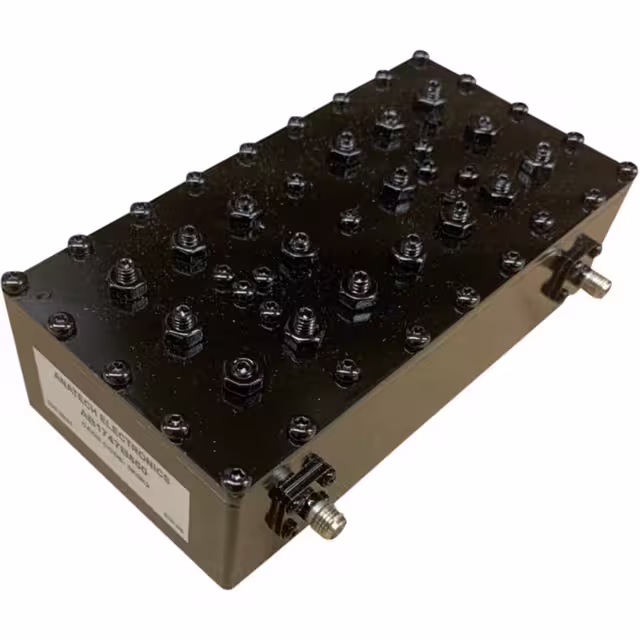

AB1747B850RF FILTER BAND PASS 1.747GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.747GHz Center | 75MHz | Band Pass | - | 0.5dB | Chassis Mount | 4.921" L x 4.685" W (125.00mm x 119.00mm) | 1.654" (42.00mm) |
|
|
AB5550B1208RF FILTER BAND PASS 5.55GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.55GHz Center | 610MHz | Band Pass | - | 1dB | Chassis Mount | 4.173" L x 2.441" W (106.00mm x 62.00mm) | 0.984" (25.00mm) |
|
|
AE25500B11424RF FILTER BAND PASS 25.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 25.5GHz Center | 9GHz | Band Pass | - | 1dB | Chassis Mount | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.315" (8.00mm) |
|
|
AB2350B1256RF FILTER BAND PASS 2.35GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.35GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.693" L x 5.512" W (170.00mm x 140.00mm) | 2.126" (54.00mm) |
|
|
AE10B11036RF FILTER BAND PASS 10MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 10MHz Center | 4MHz | Band Pass | - | 1dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AB1730B866RF FILTER BAND PASS 1.73GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.73GHz Center | 32MHz | Band Pass | - | 2.5dB | Chassis Mount | 6.457" L x 3.307" W (164.00mm x 84.00mm) | 2.244" (57.00mm) |
|
AE15125B11042RF FILTER BANDPASS 15.125GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 15.125GHz Center | 400MHz | Band Pass | - | 2dB | Chassis Mount | 1.810" L x 0.710" W (45.97mm x 18.03mm) | 0.320" (8.13mm) |
|
AE1250B1398RF FILTER BAND PASS 1.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.25GHz Center | 100MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 2.500" L x 0.500" W (63.50mm x 12.70mm) | 0.500" (12.70mm) |
|
|
AB5700B1250RF FILTER BANDPASS 5.7GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 5.7GHz Center | 400MHz | Band Pass | 0.2dB | 0.5dB | Chassis Mount | 4.000" L x 3.449" W (101.60mm x 87.60mm) | 1.260" (32.00mm) |
|
AB722B1198RF FILTER BANDPASS 722MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 722MHz Center | 48MHz | Band Pass | - | 1dB | Chassis Mount | 5.394" L x 3.071" W (137.00mm x 78.00mm) | 1.142" (29.00mm) |
|
|
AB2312B1006RF FILTER BANDPASS 2.3125GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 2.3125GHz Center | 19.2MHz | Band Pass | - | 1dB | Chassis Mount | 6.600" L x 4.450" W (167.64mm x 113.03mm) | 1.520" (38.61mm) |
|
|
AE2250B10760RF FILTER BAND PASS 2.25GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.25GHz Center | 100MHz | Band Pass | - | 2dB | Chassis Mount | 2.992" L x 2.047" W (76.00mm x 52.00mm) | 1.299" (33.00mm) |
