RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE540B10366RF FILTER BANDPASS 540MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 540MHz Center | 50MHz | Band Pass | - | 2.5dB | Chassis Mount | 4.000" L x 0.600" W (101.60mm x 15.24mm) | 0.412" (10.46mm) |
|
AE280B10997-SFRF FILTER BANDPASS 280MHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 280MHz Center | 80MHz | Band Pass | - | 1.5dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.012" (25.70mm) |
|
AE5B9988RF FILTER BAND PASS 5MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 5MHz Center | - | Band Pass | - | 8dB | Chassis Mount | 2.500" L x 1.500" W (63.50mm x 38.10mm) | 0.750" (19.05mm) |
|
AE400L9176RF FILTER LOW PASS 400MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 400MHz (Cutoff) | 400MHz | Low Pass | - | 0.6dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.250" (31.75mm) |
|
|
AB5550B573RF FILTER BANDPASS 5.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.5GHz Center | 1.2GHz | Band Pass | - | 0.8dB | Chassis Mount | 2.894" L x 1.102" W (73.50mm x 28.00mm) | 0.945" (24.00mm) |
|
|
AE1L7825RF FILTER LOW PASS 1MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 1MHz (Cutoff) | - | Low Pass | - | 0.8dB | Chassis Mount | 6.000" L x 2.000" W (152.40mm x 50.80mm) | 1.500" (38.10mm) |
|
|
AB2436B479-NFNMRF FILTER BANDPASS 2.4365GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.4365GHz Center | 70MHz | Band Pass | 0.2dB | 1.1dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|
AB2436B479RF FILTER BANDPASS 2.4365GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.4365GHz Center | 70MHz | Band Pass | 0.2dB | 1.1dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|

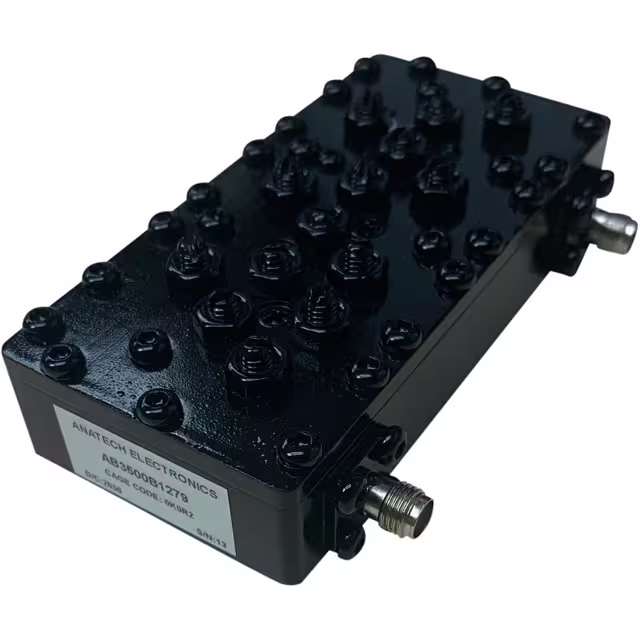

AB3500B1279RF FILTER BANDPASS 3.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.5GHz Center | 200MHz | Band Pass | - | 1dB | Chassis Mount | 3.465" L x 1.654" W (88.00mm x 42.00mm) | 0.984" (25.00mm) |
|
|
AE140B10704RF FILTER BANDPASS 140MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 140MHz Center | 15MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.000" W (101.60mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AE3000B11602RF FILTER BAND PASS 3GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3GHz Center | 1.5GHz | Band Pass | - | 2dB | Chassis Mount | 2.189" L x 1.299" W (55.60mm x 33.00mm) | 0.799" (20.30mm) |
|
|
AB912B847RF FILTER BANDPASS 912MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 912MHz Center | 21MHz | Band Pass | - | 1.5dB | Chassis Mount | 4.724" L x 2.362" W (120.00mm x 60.00mm) | 1.890" (48.00mm) |
|
|
AB1747B850-NRF FILTER BAND PASS 1.747GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.747GHz Center | 75MHz | Band Pass | - | 0.5dB | Chassis Mount | 4.921" L x 4.685" W (125.00mm x 119.00mm) | 1.654" (42.00mm) |
|
|
AE2280B11451RF FILTER BAND PASS 2.28GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.28GHz Center | 30MHz | Band Pass | 1dB | 2dB | Chassis Mount | 2.835" L x 1.969" W (72.00mm x 50.00mm) | 1.299" (33.00mm) |
|
|
AB1175B1271RF FILTER BAND PASS 1.175GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.175GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 4.606" L x 2.402" W (117.00mm x 61.00mm) | 1.693" (43.00mm) |
|
|
AE20500B11422RF FILTER BAND PASS 20.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 20.5GHz Center | 1GHz | Band Pass | - | 1.6dB | Chassis Mount | 2.543" L x 0.591" W (64.60mm x 15.00mm) | 0.354" (9.00mm) |
|
|
AE942N2242RF FILTER BANDSTOP 942MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 942MHz Center | 34.8MHz | Band Stop | - | 2dB | Chassis Mount | 1.630" L x 1.380" W (41.40mm x 35.05mm) | 0.642" (16.30mm) |
|
|
AE880L9288RF FILTER LOW PASS 880MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 880MHz (Cutoff) | 880MHz | Low Pass | - | 0.3dB | Chassis Mount | 7.500" L x 1.000" W (190.50mm x 25.40mm) | 1.000" (25.40mm) |
|
|
AE175L9084RF FILTER LOW PASS 175MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 175MHz (Cutoff) | 174MHz | Low Pass | - | 0.5dB | Chassis Mount | 6.000" L x 1.500" W (152.40mm x 38.10mm) | 1.400" (35.56mm) |
|
AE1370B11585RF FILTER BAND PASS 1.37GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.37GHz Center | 40MHz | Band Pass | - | 1.8dB | Chassis Mount | 4.701" L x 3.252" W (119.40mm x 82.60mm) | 1.890" (48.00mm) |
