RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

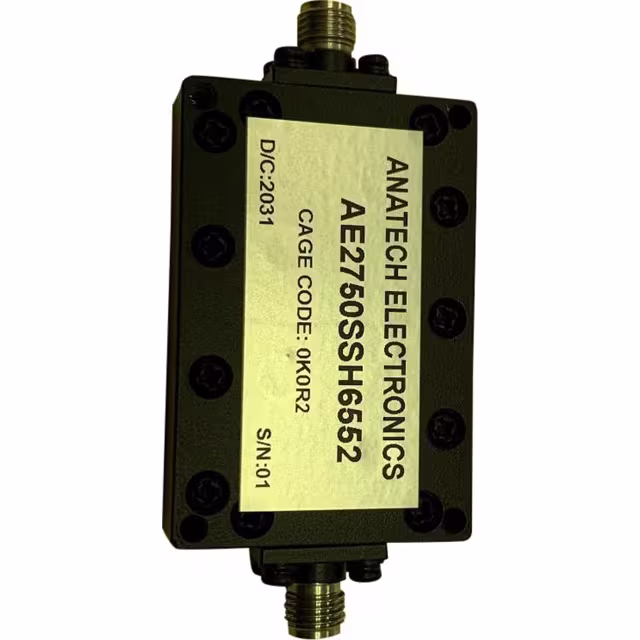

AE2750SSH6552RF FILTER HIGH PASS 2.75GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.75GHz (Cutoff) | 13.25GHz | High Pass | - | 2dB | Chassis Mount | 1.772" L x 1.181" W (45.00mm x 30.00mm) | 0.394" (10.00mm) |
|
AE6500SSH6560RF FILTER HI PASS 6.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.5GHz (Cutoff) | 17.5GHz | High Pass | - | 2dB | Chassis Mount | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 0.394" (10.00mm) |
|
|
AE6000SSH6559RF FILTER HIGH PASS 6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6GHz (Cutoff) | 18GHz | High Pass | - | 2dB | Chassis Mount | 1.260" L x 0.906" W (32.00mm x 23.00mm) | 0.394" (10.00mm) |
|
|
AE1000L7839RF FILTER LOW PASS 1GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 1GHz (Cutoff) | - | Low Pass | - | 0.6dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE6000SSH6598RF FILTER HIGH PASS 6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6GHz (Cutoff) | 18.5GHz | High Pass | - | 1.5dB | Chassis Mount | 0.866" L x 0.630" W (22.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
AB7500B1077RF FILTER BANDPASS 7.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 7.5GHz Center | 1GHz | Band Pass | - | 1.8dB | Chassis Mount | 6.362" L x 0.650" W (161.60mm x 16.50mm) | 0.984" (25.00mm) |
|
|
AE45B5019RF FILTER BAND PASS 45MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 45MHz Center | 28MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 3.750" L x 1.000" W (95.25mm x 25.40mm) | 0.500" (12.70mm) |
|
AB4887B1059RF FILTER BAND PASS 4.887GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 4.887GHz Center | 225MHz | Band Pass | - | 1dB | Chassis Mount | 4.670" L x 3.550" W (118.62mm x 90.17mm) | 0.710" (18.03mm) |
|
AE11500SSH6610RF FILTER HIGH PASS 11.5GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 11.5GHz (Cutoff) | 28.5GHz | High Pass | - | 2dB | Chassis Mount | 0.591" L x 0.500" W (15.00mm x 12.70mm) | 0.394" (10.00mm) |
|
AE6500SSH6599RF FILTER HI PASS 6.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.5GHz (Cutoff) | 18.5GHz | High Pass | - | 1.5dB | Chassis Mount | 0.827" L x 0.591" W (21.00mm x 15.00mm) | 0.394" (10.00mm) |
|
|
AB1932B1347RF FILTER BANDPASS 1.9325GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.9325GHz Center | 445MHz | Band Pass | - | 2.2dB | Chassis Mount | 5.492" L x 2.205" W (139.50mm x 56.00mm) | 1.417" (36.00mm) |
|
|
AB2140B1259RF FILTER BAND PASS 2.14GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.14GHz Center | 59.6MHz | Band Pass | - | 1.3dB | Chassis Mount | 3.417" L x 1.598" W (86.80mm x 40.60mm) | 1.142" (29.00mm) |
|
|
AB2007B1345RF FILTER BANDPASS 2.0075GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 2.0075GHz Center | 485MHz | Band Pass | - | 0.5dB | Chassis Mount | 6.772" L x 1.575" W (172.00mm x 40.00mm) | 1.654" (42.00mm) |
|
|
AB1857B789RF FILTER BAND PASS 1.857GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.857GHz Center | 15MHz | Band Pass | - | 2.5dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|
|
AE930B11464RF FILTER BANDPASS 930MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 930MHz Center | 20MHz | Band Pass | 0.2dB | 1.6dB | Chassis Mount | 8.820" L x 2.090" W (224.03mm x 53.09mm) | 1.470" (37.34mm) |
|
|
AE250B10572RF FILTER BANDPASS 250MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 250MHz Center | 300MHz | Band Pass | - | - | Chassis Mount | 2.380" L x 1.000" W (60.45mm x 25.40mm) | 1.000" (25.40mm) |
|
AE6000H9761RF FILTER HIGH PASS 6GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6GHz (Cutoff) | 12GHz | High Pass | 0.1dB | 1dB | Chassis Mount | 0.750" L x 0.625" W (19.05mm x 15.88mm) | 0.500" (12.70mm) |
|
|
AE2310B11640RF FILTER BAND PASS 2.31GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.31GHz Center | 10MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 6.181" L x 5.512" W (157.00mm x 140.00mm) | 1.587" (40.30mm) |
|

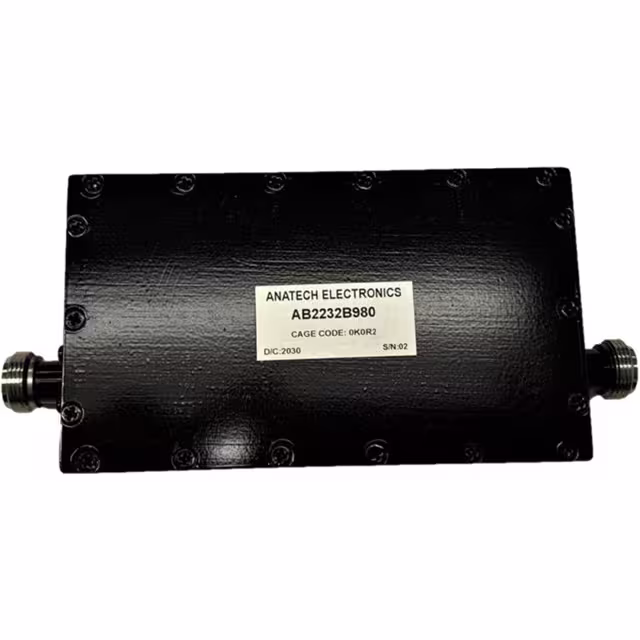

AB2232B980RF FILTER BAND PASS 2.232GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 2.232GHz Center | 22MHz | Band Pass | - | 2dB | Chassis Mount | 4.843" L x 2.795" W (123.00mm x 71.00mm) | 1.240" (31.50mm) |
|
|
AE5700B11310RF FILTER BANDPASS 5.7GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.7GHz Center | 100MHz | Band Pass | - | 0.7dB | Chassis Mount | 4.173" L x 1.811" W (106.00mm x 46.00mm) | 0.945" (24.00mm) |
