Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

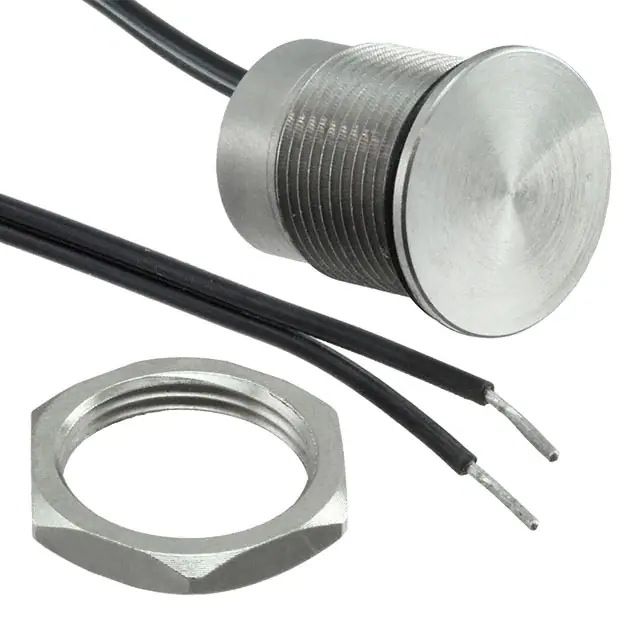

MPZ016/FSWITCH PUSHBUTTON SPST-NO 1A 24V |
67 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|

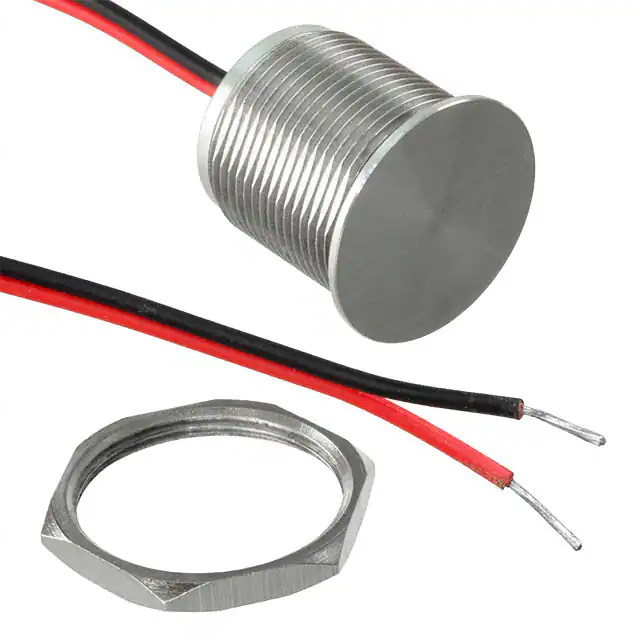

MPZ019/FSWITCH PUSHBUTTON SPST-NO 1A 24V |
27 |
|
Datasheet |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
XB6CE1B1BCOMPLETE ILLUMINATED PUSH BUTTON |
26 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

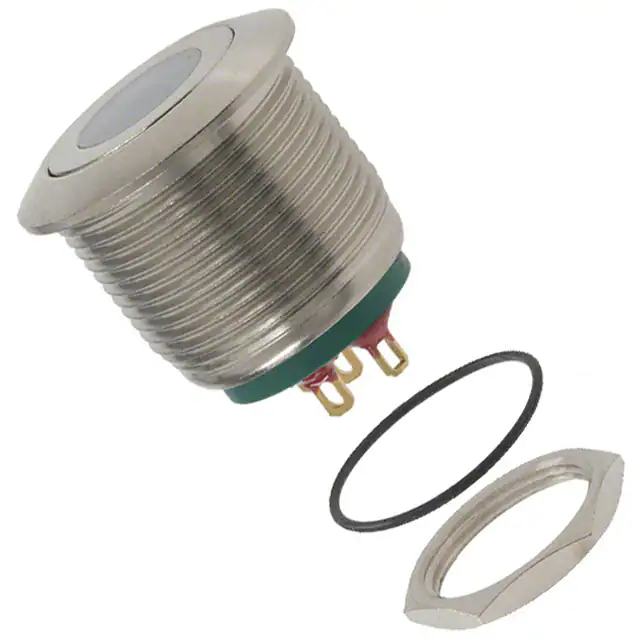

AV09C7L3D2003KSWITCH PUSH SPST-NO 0.05A 24V |
1,047 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
AV09C7L3D2001KSWITCH PUSH SPST-NO 0.05A 24V |
67 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
1.24.100.001/0000E-BOX IO-LINK, 1 ILLUMINATED PUS |
47 |
|
Datasheet |
- | Box | Active | Free Hanging | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | - | - | Round, Button, Flush | No Marking | White | LED, White | - | Connector | IP65 - Dust Tight, Water Resistant | - | - | -30°C ~ 60°C |
|

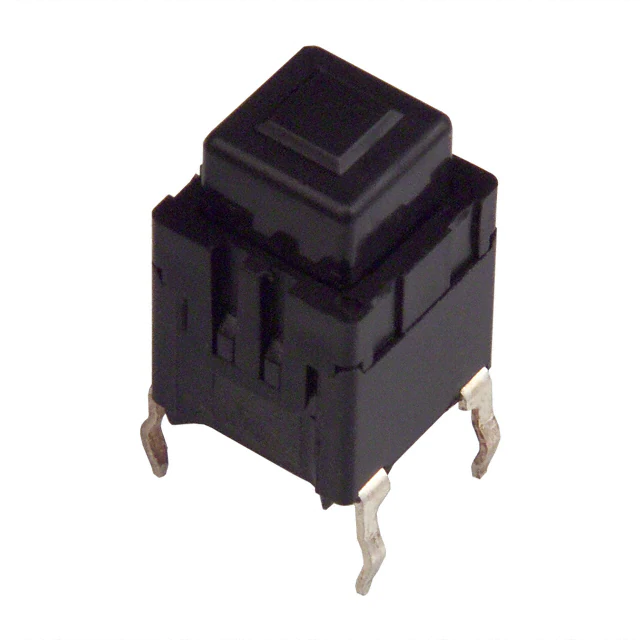

ESE-20D341SWITCH PUSH SPST-NO 0.1A 14V |
1,207 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
MPB01-1B54-SB-CAP-WT-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
712 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
SW-PB9-ABA1RE-7SEALED SUBMINIATIURE PUSHBUTTON |
747 |
|
Datasheet |
SW | Box | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
MD S SG LFSSWITCH PUSH SPST-NO 0.1A 100V |
580 |
|
Datasheet |
MD | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
FP1F-5M-ZSWITCH PUSH SPDT 0.4VA 28V |
228 |
|
Datasheet |
FP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Yellow | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
SW-PB9-BB00AQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
774 |
|
Datasheet |
SW | Box | Active | - | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
5500STDBODY2SWITCH PB SPDT 12MA 24V |
500 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | LED, Green | 2.2 VDC | PC Pin | - | - | - | - |
|
SW-PB9-AB00AQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
429 |
|
Datasheet |
SW | Box | Active | - | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
TL2205EEBPBBSWITCH PUSH DPDT 0.1A 30V |
296 |
|
Datasheet |
TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button | No Marking | Black (White Window) | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
CFPB-1CC-1W6SWITCH PUSH SPST-NO 1MA 20V |
160 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
B3J-4300SWITCH PUSH SPST-NO 0.05A 24V |
261 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-2300SWITCH PUSH SPST-NO 0.05A 24V |
241 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-2400SWITCH PUSH SPST-NO 0.05A 24V |
161 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
MPB01-1C00-S-DSPDT, THROUGH HOLE, 0 MM PUSH, O |
193 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
