Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
31-132.025SWITCH PB 4PST-2NO/2NC 5A 250V |
79 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
A165L-AAM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
72 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AML22CBC2AASWITCH PUSHBUTTON SPDT 3A 125V |
27 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

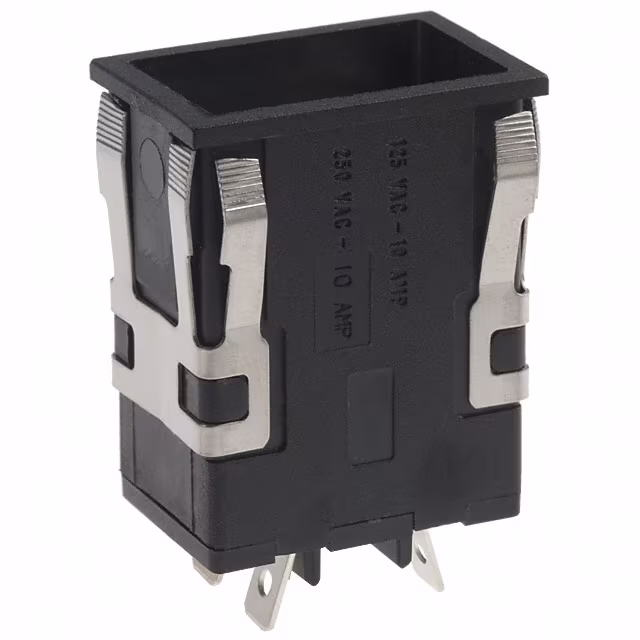

AML31EBA4ADSWITCH PUSH DPST-NO 10A 125V |
41 |
|
Datasheet |
AML31 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
XB7NH35PUSH BUTTON, HARMONY XB7, GREEN |
29 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
3-101-031SWITCH PUSHBUTTON DPST 16A 250V |
50 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|

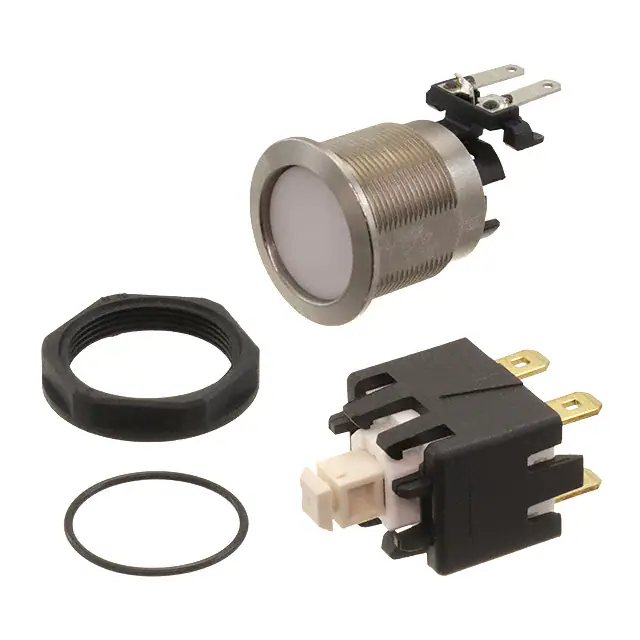

3-101-041SWITCH PUSHBUTTON DPST 16A 250V |
40 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
IXP3W02GRXN9SWITCH PB IP67 SEALED GREEN ROUN |
70 |
|
Datasheet |
IX | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 28 V | Round, Button, Mushroom | No Marking | Black | LED, Green | 4 VDC | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 11.90mm Dia | -40°C ~ 85°C |
|

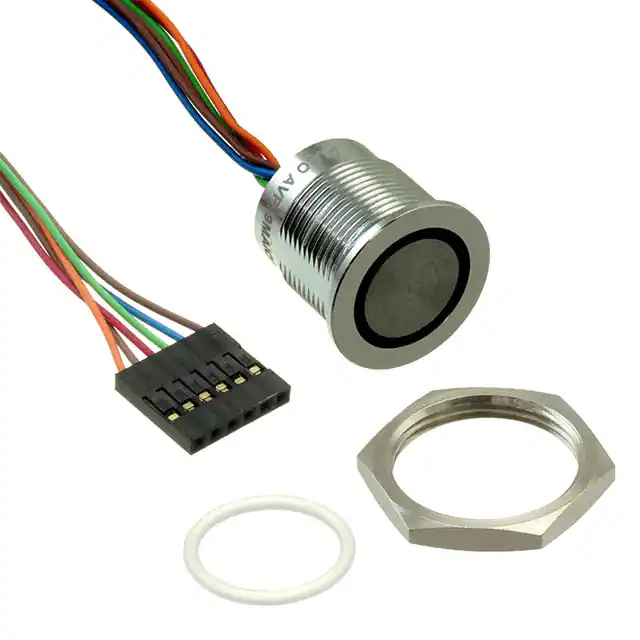

AVP19MAIOCE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
99 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
01-262.025SWITCH PB 4PST-2NO/2NC 5A 250V |
40 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AV1630C940KSWITCH PUSH SPST-NO 0.2A 48V |
187 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
XB5AP42HARMONY XB5, PUSH BUTTON, PLASTI |
49 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

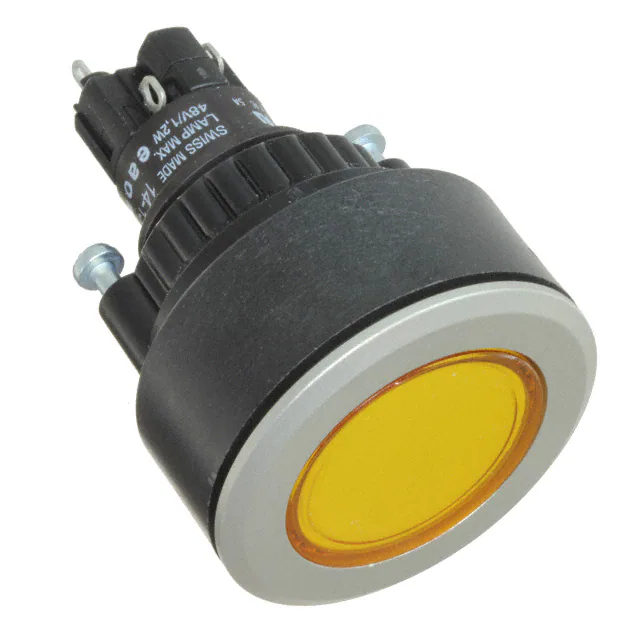

K14-131.221071SWITCH PB DPST-NO/NC 5A 250V |
72 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
AV021003C900KSWITCH PUSH SPST-NO 2A 48V |
60 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 22.20mm Dia | -30°C ~ 70°C |
|

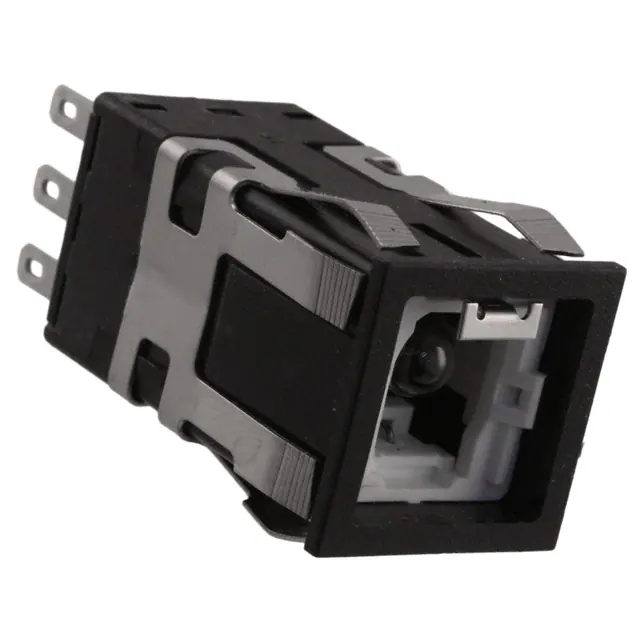

AML21CBE2ABSWITCH PUSHBUTTON SPDT 3A 125V |
72 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AVH1-1C36-RAEASWITCH PB ANTI-VANDAL 5A/OUTPUT |
523 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
AVP22MAIBCE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
9 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
07-22SWITCH PUSH SPST-NC 10A 115V |
28 |
|
Datasheet |
7 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | -40°C ~ 85°C |
|
|
13445A4GX768SWITCH PUSHBUTTON DPDT 4A 125V |
39 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed - Fully | Circular - 12.00mm Dia | -40°C ~ 85°C |
|
AML22CBM2AASWITCH PUSHBUTTON SPDT 3A 125V |
100 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
