Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILR3FAD2L0BSWITCH PUSHBUTTON SPST-NO 2A 24V |
150 |
|
Datasheet |
IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | LED, Blue | 3.2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

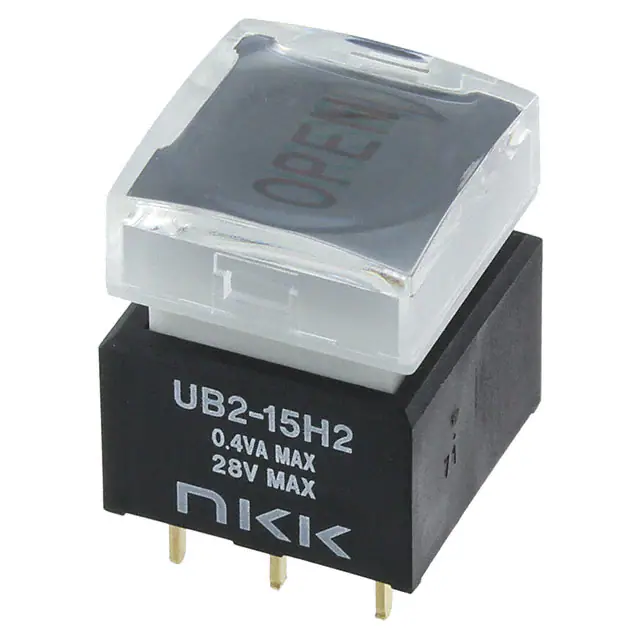

UB215SKG036CF-4JCF14SWITCH PUSHBUTTON SPDT 0.4VA 28V |
120 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
YB216CWCKW01-5D05-EBSWITCH PUSHBUTTON SPDT 3A 125V |
15 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow (White Filter/Diffuser) | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB216CWCKW01-5C05-CBSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB226CWSKW01-5F24-FBSWITCH PUSHBUTTON DPDT 3A 125V |
7 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
3832510VSWITCH PUSHBUTTON SPDT 16A 250V |
127 |
|
Datasheet |
380 | Bulk | Active | Panel Mount, Rear | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 250 V | - | - | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
IPR3FAD2L0GSWITCH PUSH SPST-NO 0.5A 48V |
401 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
14-272.025SWITCH PB 4PST-2NO/2NC 5A 250V |
26 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
3-101-015SWITCH PUSHBUTTON SPST 16A 250V |
39 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
CS4L2FRSWITCH PB SPST 1A 24V |
51 |
|
Datasheet |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|

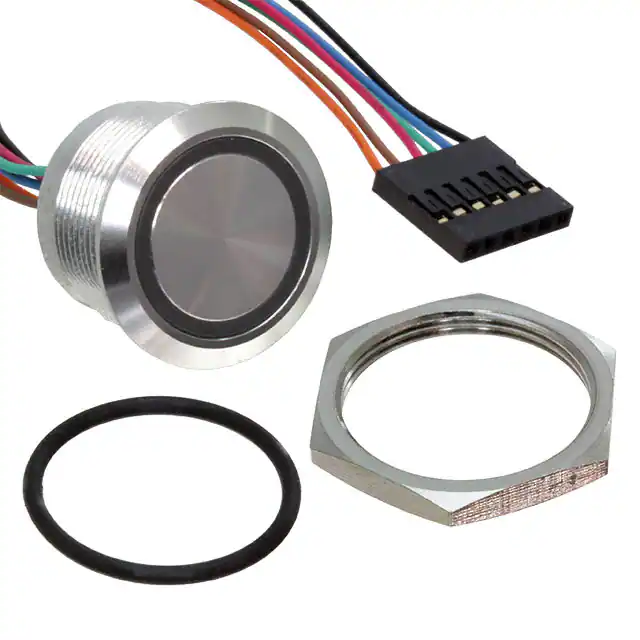

CS7L2FRSWITCH PB SPST 1A 24V |
99 |
|
Datasheet |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
MPI002/TERM/D1SWITCH PUSH SPST-NO 0.05A 24V |
66 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.05, 3.6 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IZPP1F462SWITCH PUSH SPST 0.1A 24V |
86 |
|
Datasheet |
IZ | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|

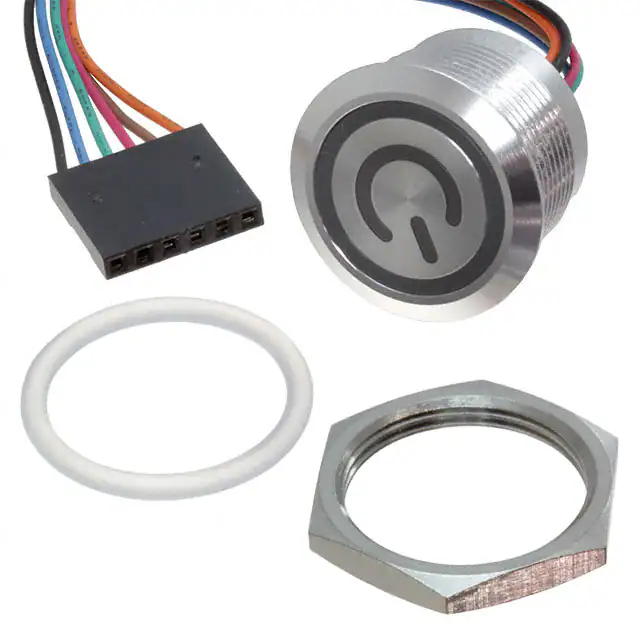

CS4M2FPSWITCH PB SPST 1A 24V |
38 |
|
Datasheet |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
1241.6834.1124000SWITCH PUSHBUTTON DPST 12A 250V |
120 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
IZNR1S42NSWITCH PUSH SPST 0.1A 24V |
157 |
|
Datasheet |
IZ | Tray | Active | Panel Mount, Rear | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -40°C ~ 85°C |
|
MPI002/FL/BL/12SWITCH PUSH SPST-NO 0.05A 24V |
90 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MP0050/2SWITCH PUSHBUTTON DPST 5A 250V |
50 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 28 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 27.70mm Dia | -20°C ~ 70°C |
|
AVC16LS16FE0DT5B04SWITCH PUSHBUTTON SPST 1A |
100 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
AML21CBA2ABSWITCH PUSHBUTTON SPDT 3A 125V |
64 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
