Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB215CWCKW01-5D-EBSWITCH PUSHBUTTON SPDT 3A 125V |
20 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
DH301NBSR24SWITCH PB DPST-NO/NC 2A 125V |
103 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
IAR5F1600SWITCH PUSHBUTTON SPDT 2A 24V |
104 |
|
Datasheet |
IA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
ATPS22SL0000M0SA04GSWITCH ANTIVANDAL W/O LED, 0V, R |
131 |
|
Datasheet |
ATPS22 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 70°C |
|
UB15SKG036B-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
5 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 2.9 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
YB26CKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
16 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
D16EES12KREDREDSWITCH PB DPDT 8A 125V |
159 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | - | Red | LED, Red | 24 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
IPR3SAD2104SWITCH PUSH SPST-NO 0.5A 48V |
524 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
A165-JRM-2SWITCH PUSHBUTTON DPDT 5A 125V |
276 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
IMP7Z462234SWITCH PUSHBUTTON SPDT 3A 28V |
371 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
A165-TBM-1SWITCH PUSHBUTTON SPDT 5A 125V |
733 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
MP0045/3E0NN000SWITCH PUSHBUTTON DPDT 3A 250V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

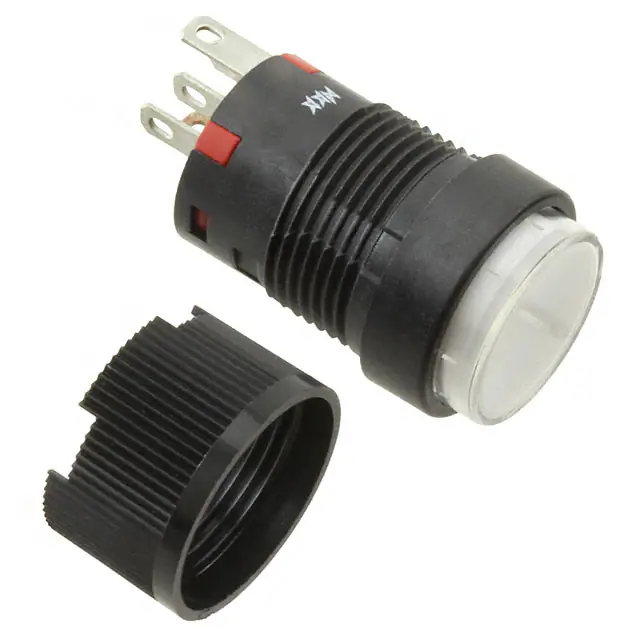

YB15CKG01-6B-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
13 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
46-200 BLKSWITCH PUSH DPDT 0.25A 115V |
23 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
H8351RPSWITCH PUSH DPST-NO 12A 250V |
168 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Rear | Anti-Vandal | DPST-NO | Off-Mom | 12A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | - |
|
IPC3SAD2L0SSWITCH PUSH SPST-NO 0.5A 48V |
618 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Square, Button | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
IPR3SAD6L0SSWITCH PUSH SPST-NO 0.5A 48V |
227 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Red | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
IPR3SAD3L0GSWITCH PUSH SPST-NO 0.5A 48V |
135 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
1825100-7SWITCH PUSHBUTTON SPDT 0.4VA 20V |
722 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

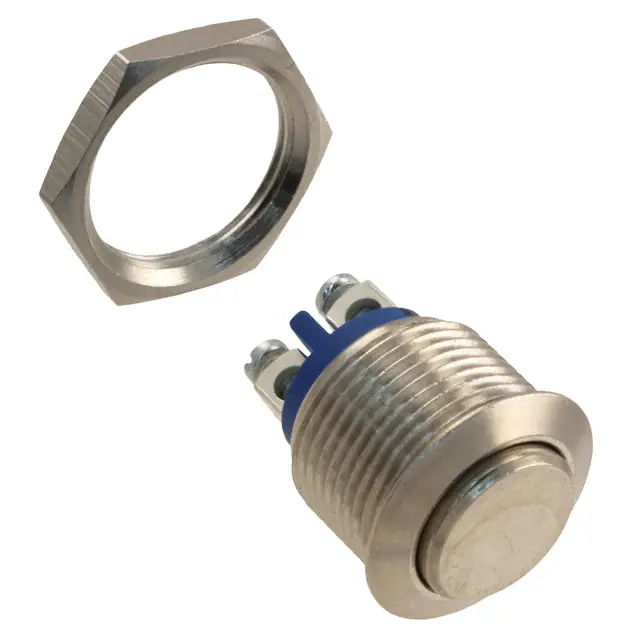

AV0630C900SWITCH PUSH SPST-NO 0.2A 48V |
1,281 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
