Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

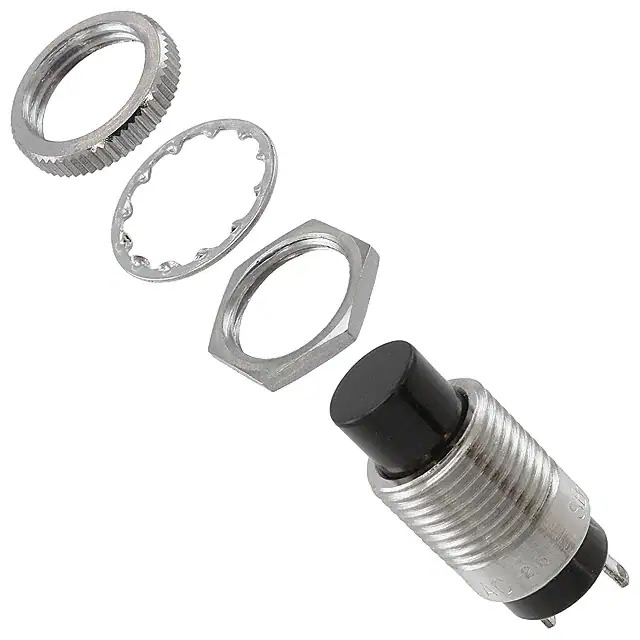

SB4011NOMSWITCH PUSH SPST-NO 3A 125V |
840 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
PV1S640SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
3,530 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PB6B2RS2M1CAL00Y500SWITCH PUSH SPST-NO 125MA 125V |
1,882 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
GPB553A201BBSWITCH PUSH SPST-NO 10A 14V |
713 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
TP11SH9ABESWITCH PUSH SPST-NO 0.4VA 20V |
10,159 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
8533MZQE2SWITCH PUSH SPST-NC 1A 120V |
3,517 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

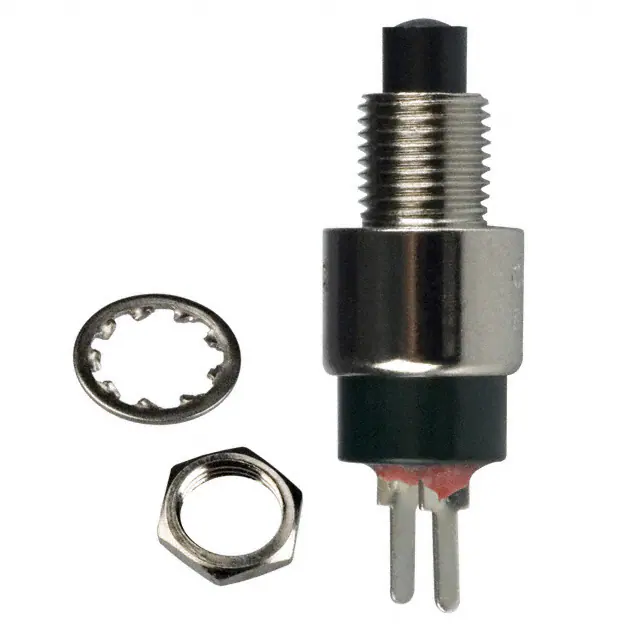

8533MCQE2SWITCH PUSH SPST-NC 1A 120V |
342 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

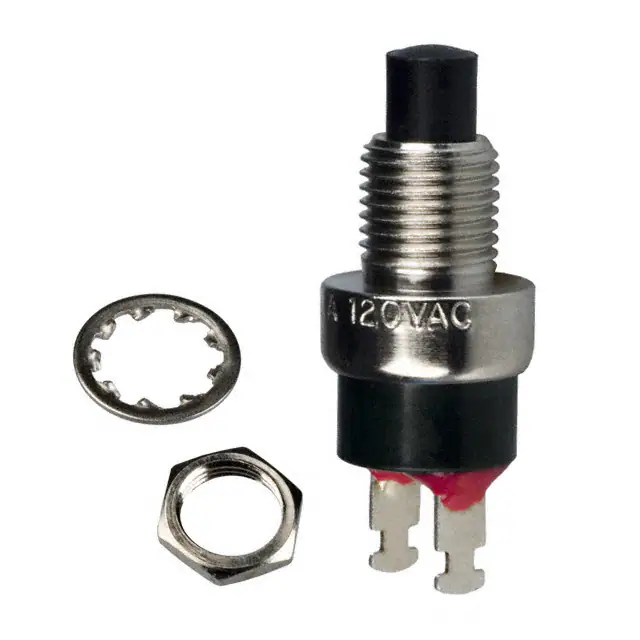

8551MZQE2SWITCH PUSH SPST-NO 3A 120V |
385 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

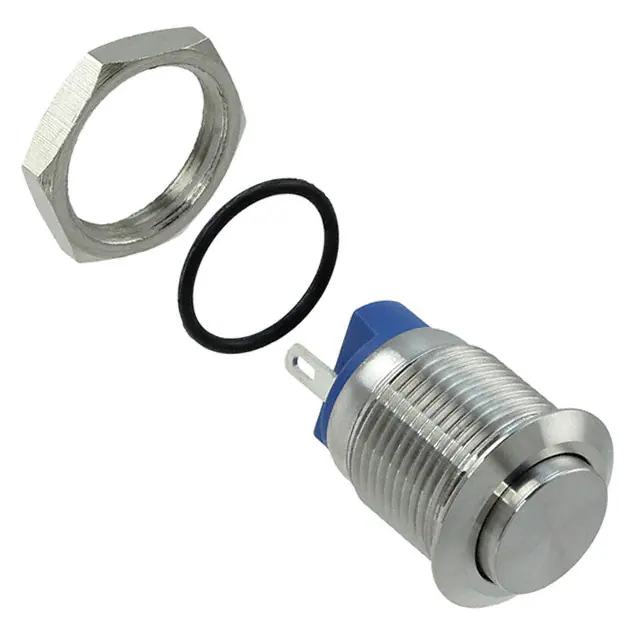

PV0H240SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,095 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
TP11SHZBESWITCH PUSH SPST-NO 0.4VA 20V |
672 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
FP11SPA1B1TP02SWITCH PUSH SPST-NO 0.4VA 28V |
7,647 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
903XSWITCH PUSH SPDT 0.25A 125V |
562 |
|
Datasheet |
903 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
GPB553B2L01BRSWITCH PUSHBUTTON SPST 10A 14V |
568 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
8531MZQE2SWITCH PUSH SPST-NO 1A 120V |
584 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

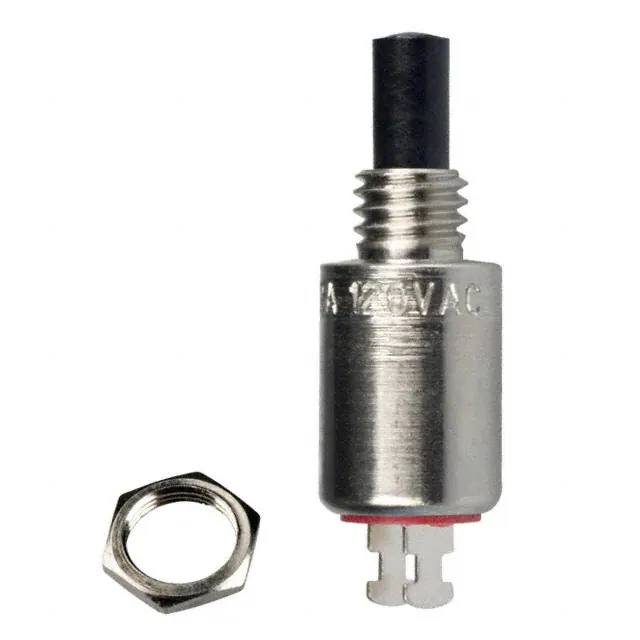

8633ZQE2SWITCH PUSH SPST-NC 0.25A 120V |
12,639 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 250mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
|
8531MCQE2SWITCH PUSH SPST-NO 1A 120V |
693 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
M2B15BA5G13-CGSWITCH PUSH SPDT 0.4VA 28V |
5,387 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
GPB556A05BBSWITCH PUSH SPST-NO 125MA 125V |
12,883 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|
8125SH9CBESWITCH PUSH SPDT 0.4VA 20V |
1,129 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
1241.2800SWITCH PUSH SPST-NO 125MA 48V |
278 |
|
Datasheet |
MCS | Bag | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -20°C ~ 60°C |
