Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40-2388-01SWITCH PUSH SPST-NO 2A 14V |
8,461 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
40-2390-00SWITCH PUSH SPST-NO 2A 14V |
2,523 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Wire Leads | - | - | - | - |
|

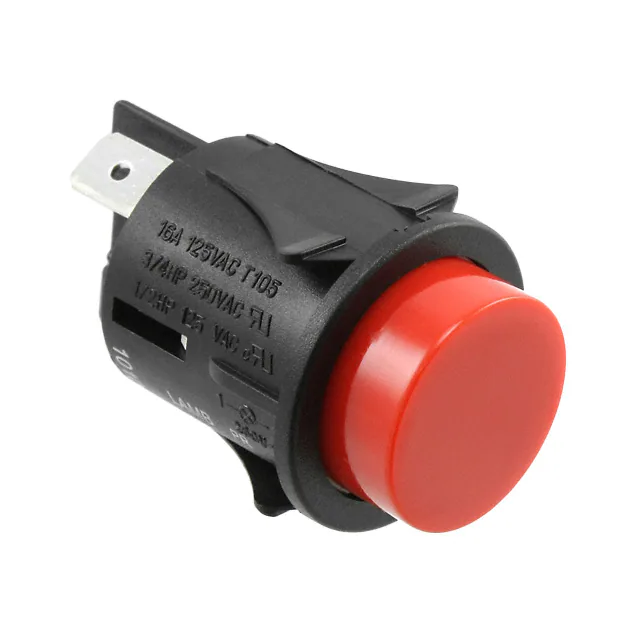

PR144C1900SWITCH PUSH SPST-NO 16A 125V |
2,382 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|

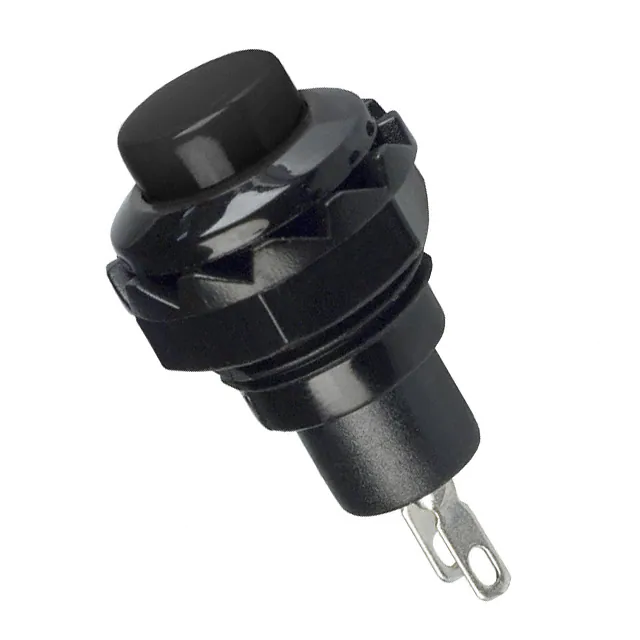

RP3502ABLKSWITCH PUSH SPST-NO 3A 120V |
2,535 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
RP3502AREDSWITCH PUSH SPST-NO 3A 120V |
2,490 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
PVA1 OA H1 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
2,480 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1 OA H4 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
1,396 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1 OA H2 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
1,759 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA2 EE H1 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
1,197 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
40-4314-00SWITCH PUSH SPST-NO 4A 14V |
1,277 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
RP3502MABLKSWITCH PUSH SPST-NO 3A 120V |
11,668 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
K12C 1 5NSWITCH PUSH SPST-NO 0.1A 30V |
3,304 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Rubber Cap | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Tactile Feedback | - | -40°C ~ 85°C |
|

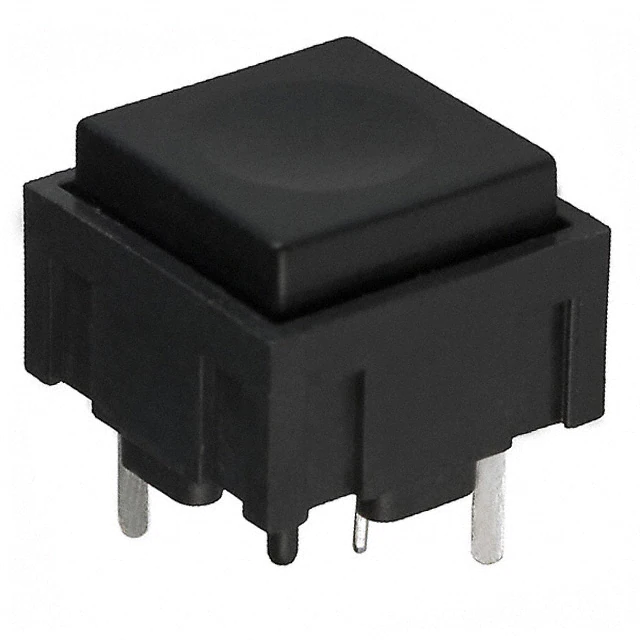

KS12R22CQDSWITCH PUSH SPDT 0.025A 50V |
6,943 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
800SP9B5M2QEHSWITCH PUSH SPST-NO 3A 120V |
2,656 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
LP1OA1ARSWITCH PUSH SPST-NO 0.1A 30V |
1,139 |
|
Datasheet |
LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
|
MDPS LFSSWITCH PUSH SPST-NO 0.1A 100V |
1,675 |
|
Datasheet |
MDP | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
K12GO NT 1.5 3.5-7NSWITCH PUSHBUTTON SPDT 0.1A 30V |
2,926 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | White | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
K12P BK 1 5NSWITCH PUSH SPST-NO 0.1A 30V |
55,950 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
GPB024A05BRSWITCH PUSH SPST-NO 3A 125V |
8,832 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | - |
|

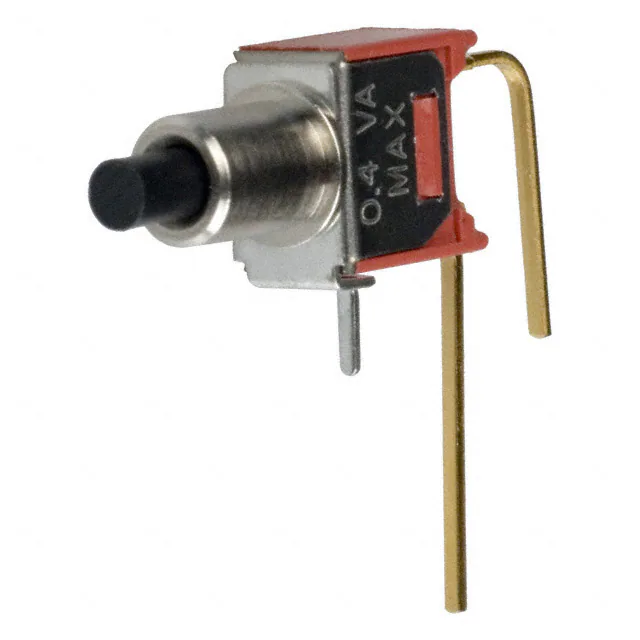

TP11SH9AVBESWITCH PUSH SPST-NO 0.4VA 20V |
5,410 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
