Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FHNABBXSWITCH PB SPST 2A 48V |
504 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
GPB527C2L02BG1SWITCH PUSH SPST-NO 10A 125V |
992 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
1825097-6SWITCH PUSH SPST-NO 0.4VA 20V |
1,647 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
BB16AH-FCSWITCH PUSH SPDT 0.4VA 28V |
1,570 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
EP11SD1CBESWITCH PUSH SPST-NO 0.4VA 20V |
1,533 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

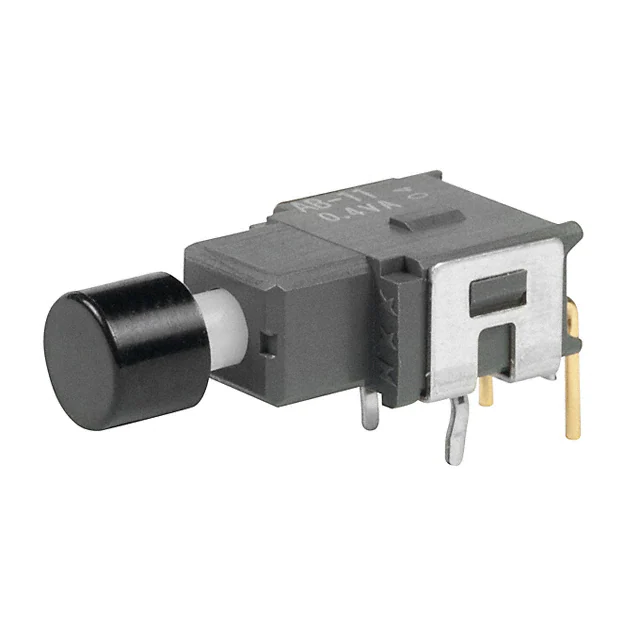

AB11AH-FASWITCH PUSH SPST-NO 0.4VA 28V |
701 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
PV2H240BBSWITCH PUSHBUTTON SPST-NO 2A 48V |
805 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
.jpg)
|
EP12SD1SAPESWITCH PUSH SPDT 0.4VA 20V |
1,716 |
|
Datasheet |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
96-323.837SWITCHING ELEMENT SA 1DC PCB GOL |
617 |
|
Datasheet |
96 | Bulk | Active | Panel Mount, Front | Standard | SPDT | - | - | - | - | Square, Button (Not Included) | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | - |
|
EP11SD1AVBESWITCH PUSH SPST-NO 0.4VA 20V |
1,600 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8R1021-N-ZSWITCH PUSHBUTTON SPDT 3A 125V |
603 |
|
Datasheet |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|
PV1S64011SWITCH PUSHBUTTON SPST-NO 2A 48V |
16,154 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
K12C 1 2.5NSWITCH PUSH SPST-NO 0.1A 30V |
7,756 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Rubber Cap | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Tactile Feedback | - | -40°C ~ 85°C |
|

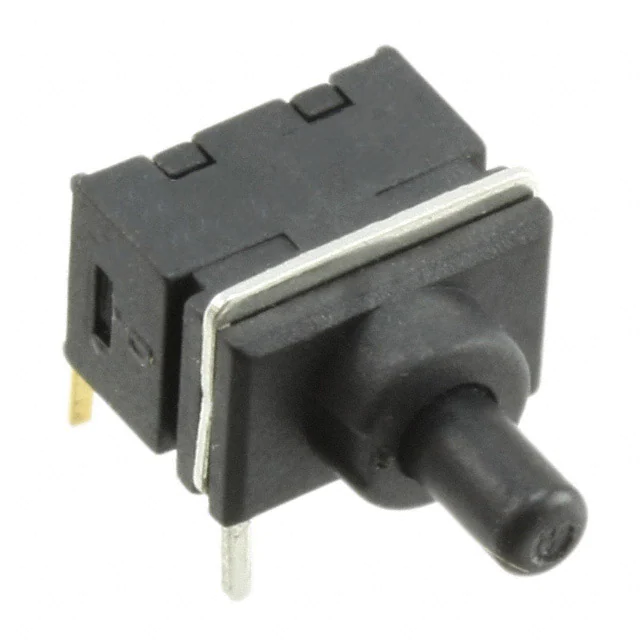

FP11SPA1B1TP00SWITCH PUSH SPST-NO 0.4VA 28V |
37,485 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
TP33W008000SWITCH PUSH SPST-NO 0.4VA 20V |
4,034 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
NE18 2U EE 6AMPSWITCH PUSHBUTTON DPDT 6A 250V |
6,196 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|

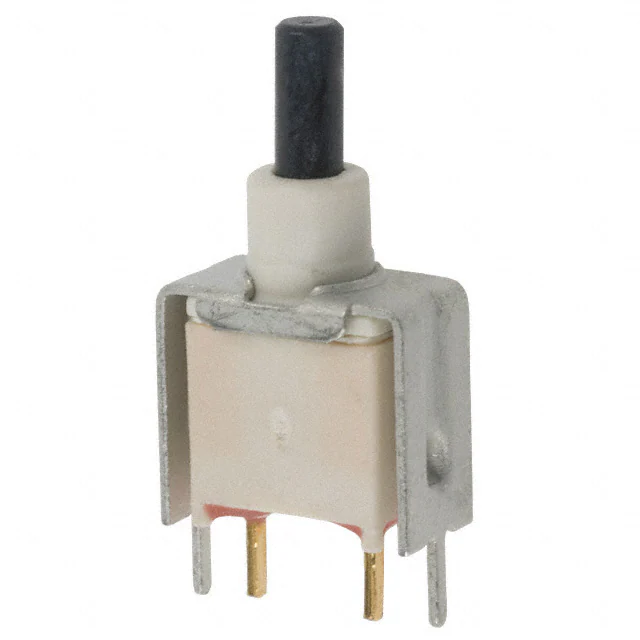

EP11SD1V3BESWITCH PUSH SPST-NO 0.4VA 20V |
235 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
GPB553B2L01BUSWITCH PUSHBUTTON SPST 10A 14V |
4,632 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
PV2F640SSSWITCH PUSH SPST-NO 2A 48V |
777 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

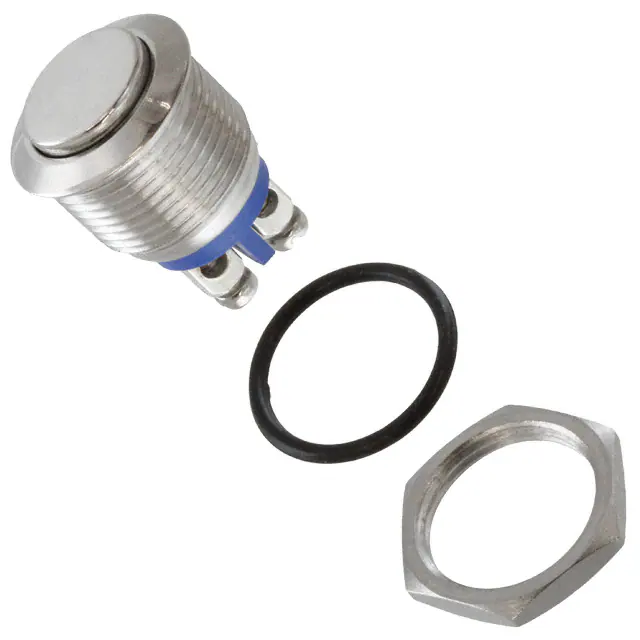

PV2H640SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
484 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
