Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP12SD1AVBESWITCH PUSH SPDT 0.4VA 20V |
1,572 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
39-501 BLKSWITCH PUSH SPST-NO 0.15A 28V |
1,790 |
|
Datasheet |
39 | Tube | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PV6H240SS-331SWITCH PUSH SPST-NO 2A 48V |
3,229 |
|
Datasheet |
PV6, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

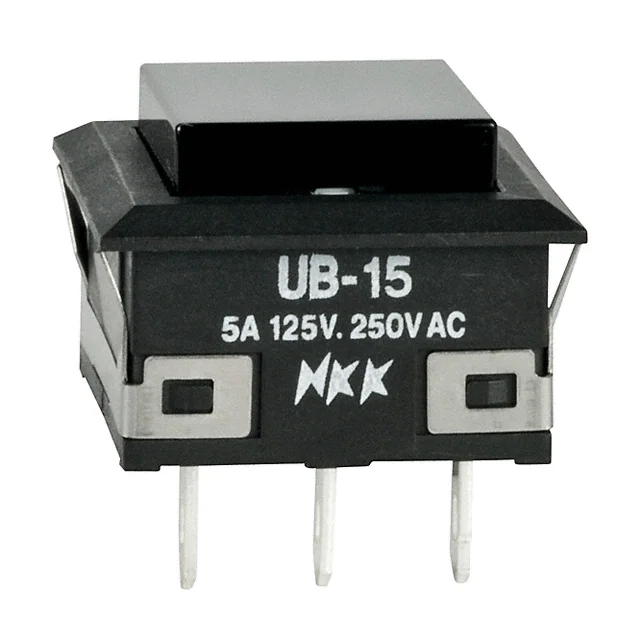

UB15KKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
406 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
1-1825096-0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
980 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
W48-2-RB-N-BK-BPBS 12MM SPST 0.1A 48V MAINTAIN |
329 |
|
Datasheet |
W48 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10mA (AC) | 12 V | - | Round, Button, Domed | - | Black | - | - | Quick Connect - 0.110" (2.8mm), Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 65°C |
|
30-100SWITCH PUSH SPST-NO 0.15A 24V |
9,610 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|
PV2F64011SWITCH PUSH SPST-NO 2A 48V |
609 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
8534MCQE2SWITCH PUSH SPST-NC 1A 120V |
2,917 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
15402SWITCH PUSH 4PST 0.25A 120V |
710 |
|
Datasheet |
Unimec™ | Tube | Active | Through Hole | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 250mA (AC) | 120 V | - | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 160°C |
|
TP32WS83565SWITCH PUSH SPDT 0.4VA 20V |
4,152 |
|
Datasheet |
SMT TP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | - | Washable in solvent or degreaser | - | -40°C ~ 85°C |
|

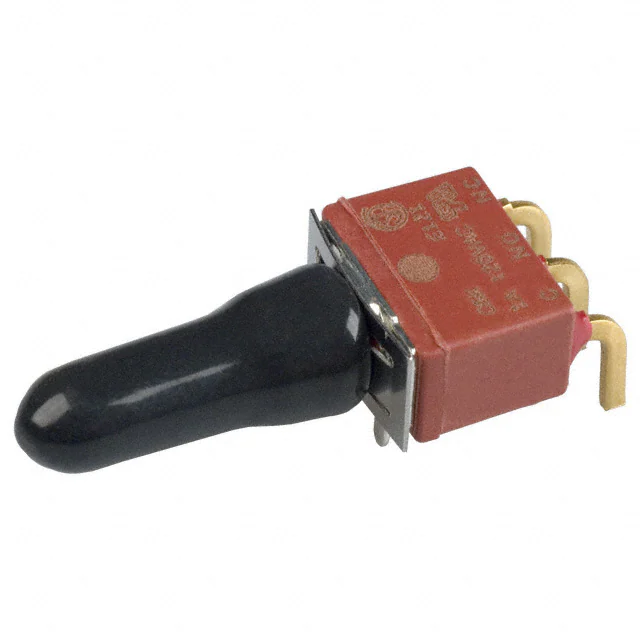

E125SD1ABESWITCH PUSH SPDT 0.4VA 20V |
1,240 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
GPB553A2L01BUSWITCH PUSH SPST-NO 10A 14V |
1,340 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

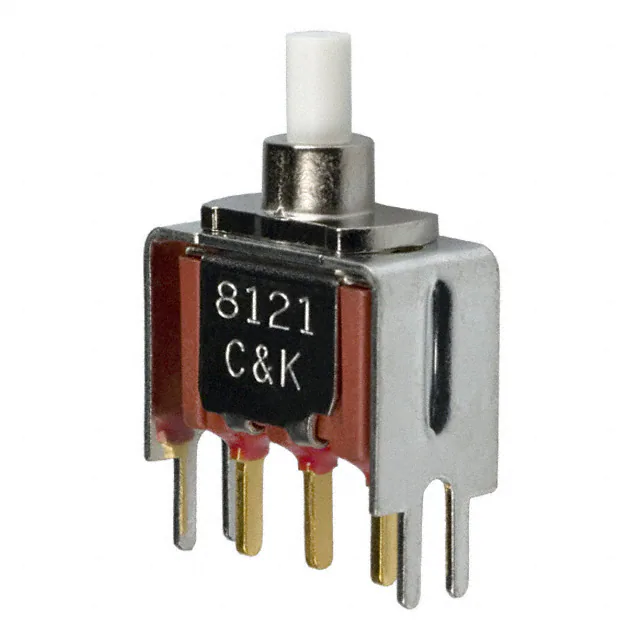

8121SD3V3GESWITCH PUSHBUTTON SPDT 1A 120V |
3,781 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
TP11SH8ABESWITCH PUSH SPST-NO 0.4VA 20V |
2,146 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

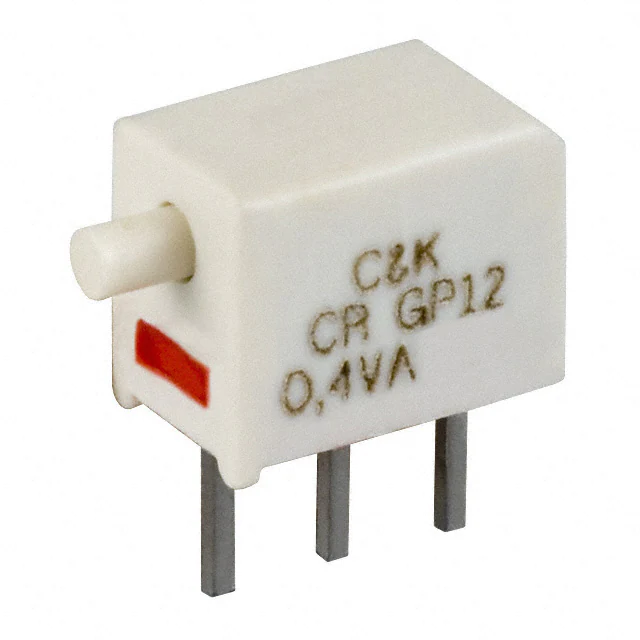

GP12MCBESWITCH PUSH SPDT 0.4VA 20V |
120 |
|
Datasheet |
GP | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PV0H240SS-231SWITCH PUSHBUTTON SPST-NO 2A 48V |
869 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
AV1610P112R04SWITCH PUSHBUTTON SPDT 2A |
4,506 |
|
Datasheet |
AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

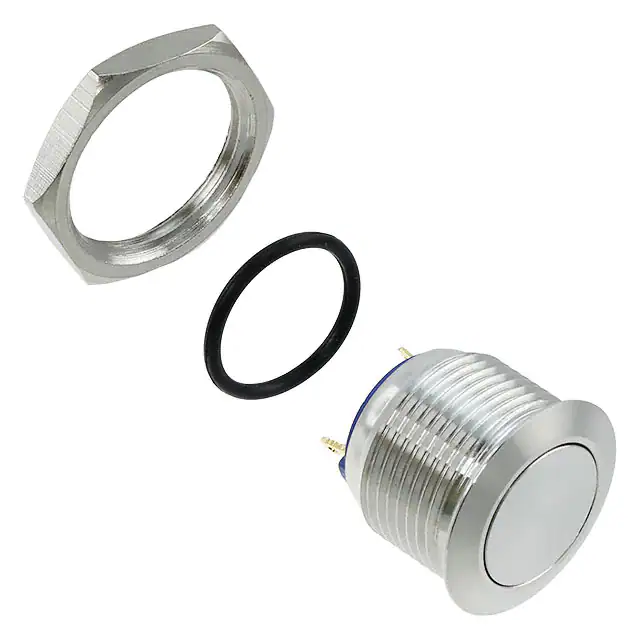

PV6F240SSSWITCH PUSH SPST-NO 2A 48V |
373 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
9633NCDBSWITCH PUSH SPST-NO 0.1A 30V |
3,996 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
