Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

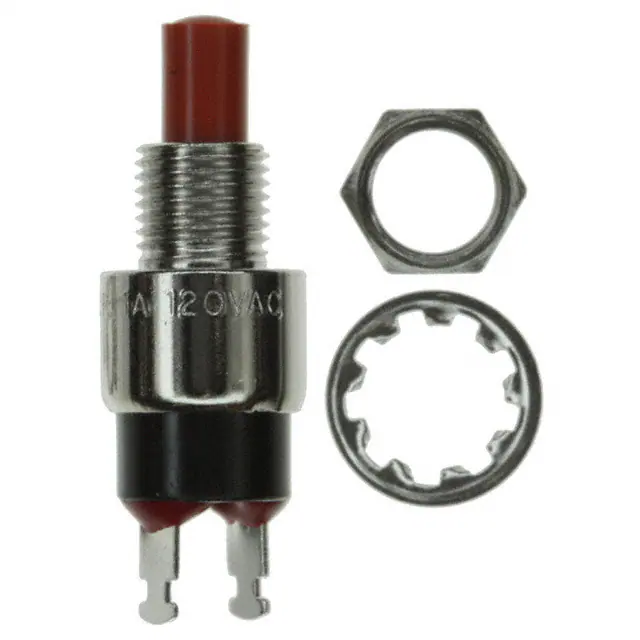

8531SZQE3SWITCH PUSH SPST-NO 1A 120V |
5,111 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
AB15AV-FASWITCH PUSH SPDT 0.4VA 28V |
7,103 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
RP8300B2M1CEBLKBLKNILSWITCH PB SPST-NO 200MA 250V |
4,309 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
SB4011NOHSWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
SB40 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
GB15AV-XCSWITCH PUSH SPDT 0.4VA 28V |
5,750 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

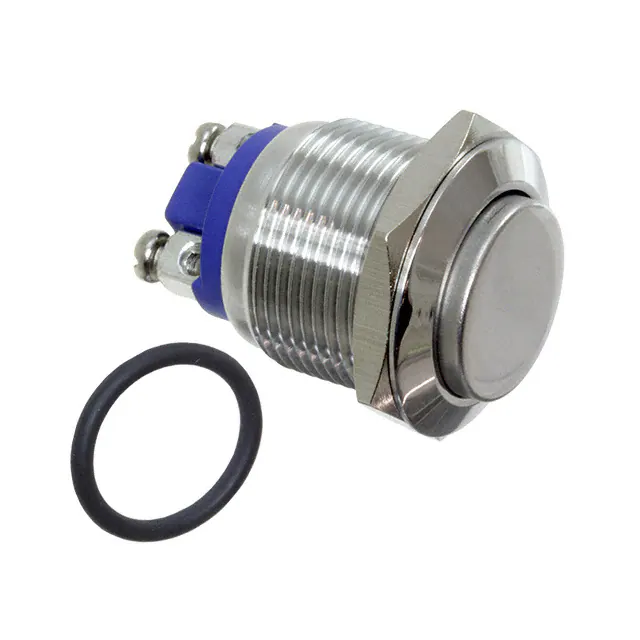

PV1F640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,186 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

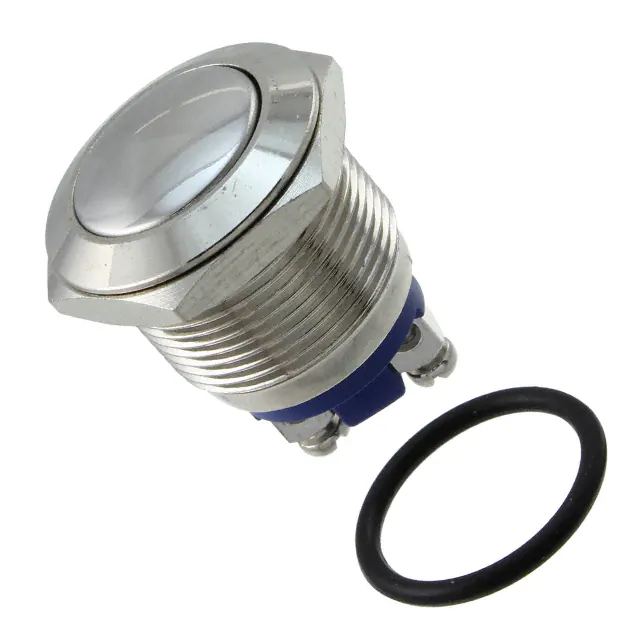

PV1S640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,080 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PB6B2FM2M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
1,214 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
30-3ULSWITCH PUSH SPST-NO 5A 120V |
671 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 5A (AC) | 120 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
PV5S640NNSWITCH PUSH SPST-NO 2A 36V |
374 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
BB15AH-FASWITCH PUSH SPDT 0.4VA 28V |
9,506 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
PV1H240BBSWITCH PUSHBUTTON SPST 2A 48V |
22,446 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
RP8200B2M1CEBLKBLKREDSWITCH PUSH SPST 0.1A 24V |
1,062 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

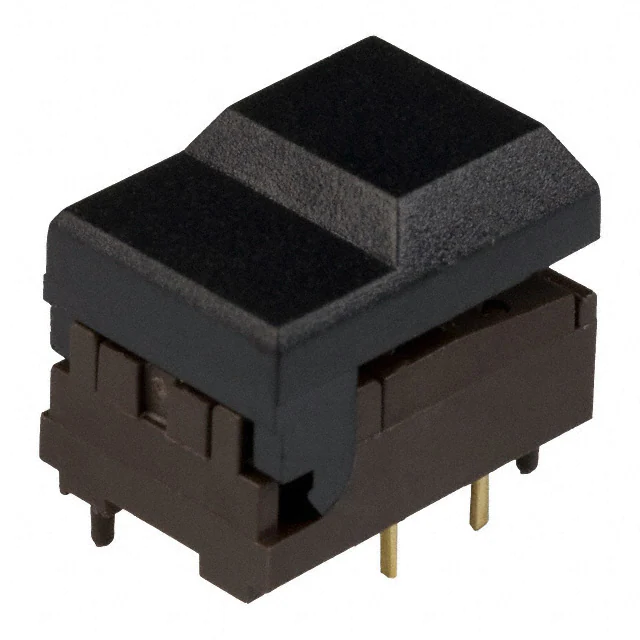

SER BK AU OASWITCH PUSH SPDT 0.01A 24V |
169 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
18235WCD3SWITCH PUSH SPDT 0.1A 30V |
510 |
|
Datasheet |
18000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
CSMS15CIC04CSM DISPLAY SMT LED SQUARE 15MM |
3,198 |
|
Datasheet |
CSM | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | Off-Mom | - | - | - | Square, Button | No Marking | Clear | LED, White | 3.8 VDC | SMD (SMT) Tab | - | - | - | -40°C ~ 105°C |
|
GB15AP-XASWITCH PUSH SPDT 0.4VA 28V |
2,433 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
AB15AHSWITCH PUSH SPDT 0.4VA 28V |
482 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11AP-FASWITCH PUSH SPST-NO 0.4VA 28V |
899 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
FHNASBXSWITCH PB SPST 2A 48V |
1,043 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
