Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-601 BLKSWITCH PUSH SPST-NO 0.15A 5V |
247 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
.jpg)
|
EP11SD1SAPESWITCH PUSH SPST-NO 0.4VA 20V |
9,617 |
|
Datasheet |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
ESANMD2GBXSWITCH PB SPST-NO 125MA 125V |
718 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

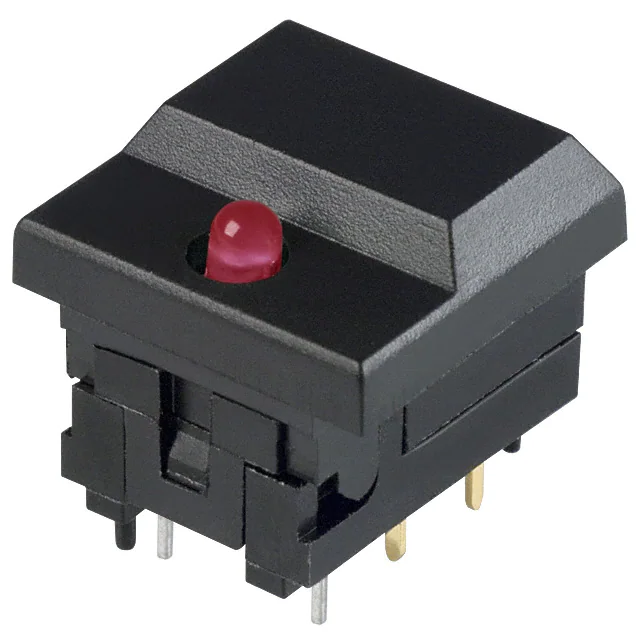

5511MBLKREDSWITCH PUSH SPDT 0.3A 12V |
813 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
FB15ANEP2SWITCH PUSH SPST-NO 0.5A 125V |
3,933 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|

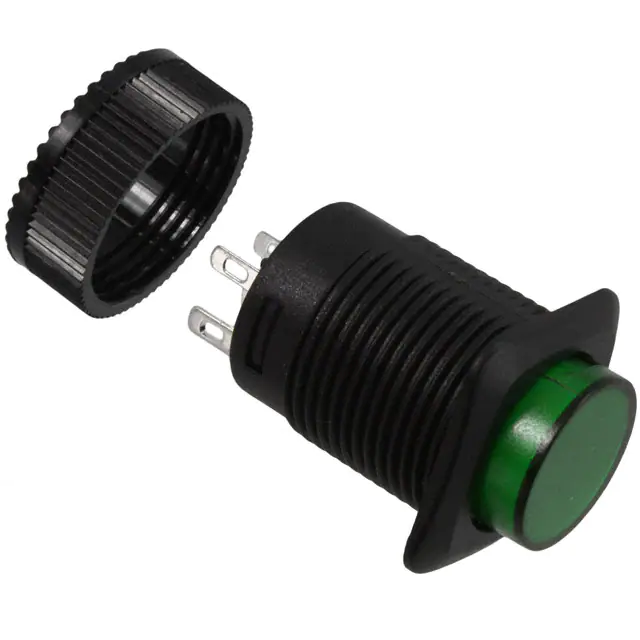

RP3508ABLKGRNGRNNSSWITCH PUSH SPST-NO 3A 125V |
4,565 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
800BWSP9SM6RESWITCH PUSH SPST-NO 0.4VA 20V |
4,317 |
|
Datasheet |
800B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PV2S240NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
5,289 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

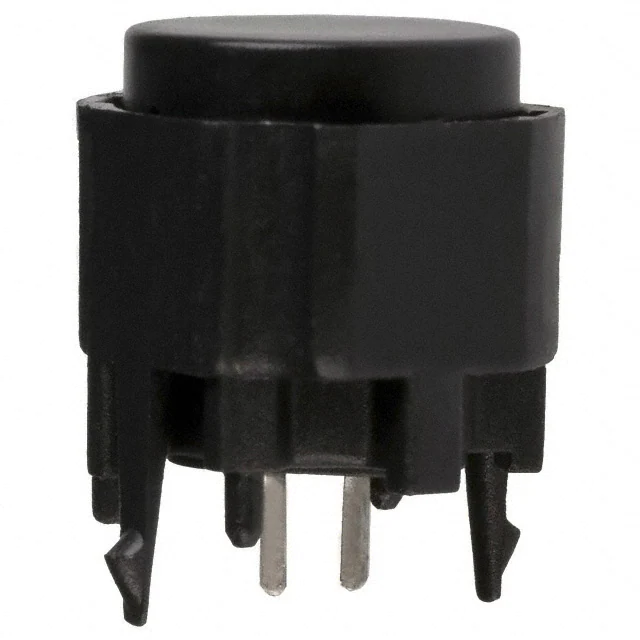

K12P BK 1.5 5NSWITCH PUSH SPST-NO 0.1A 30V |
4,375 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
PV5S64011SWITCH PUSH SPST-NO 2A 36V |
2,251 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
PV5S64019SWITCH PUSH SPST-NO 2A 36V |
878 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
RP8100B2M1CEBLKBLKBLUSWITCH PB SPST-NO 0.125A 125V |
667 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CECHRBLKNILSWITCH PB SPST-NO 200MA 250V |
1,932 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
SERU AU OASWITCH PUSH SPDT 0.01A 24V |
340 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

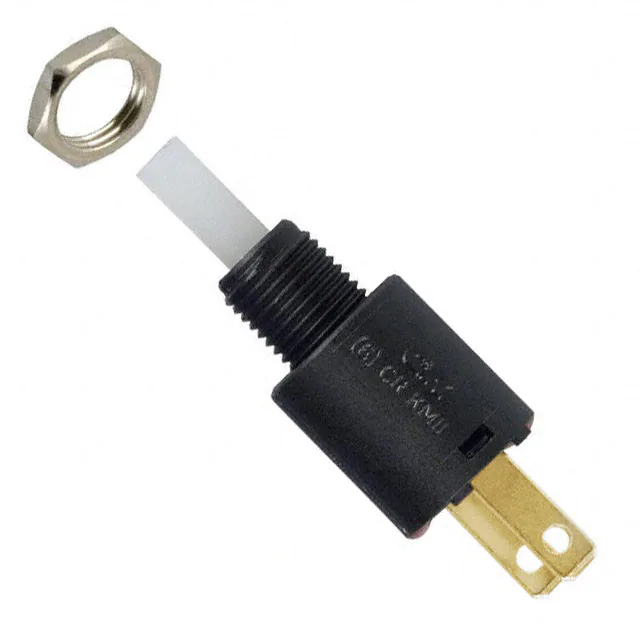

KM1101RR05BSWITCH PUSH SPST-NO 0.4VA 20V |
4,490 |
|
Datasheet |
KM | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
BB15APSWITCH PUSH SPDT 0.4VA 28V |
485 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
PBS9MZRESSWITCH PUSH SPST-NO 0.4VA 20V |
2,183 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C |
|
GB15AVSWITCH PUSH SPDT 0.4VA 28V |
7,509 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
1825095-1SWITCH PUSH SPST-NO 0.4VA 20V |
2,435 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

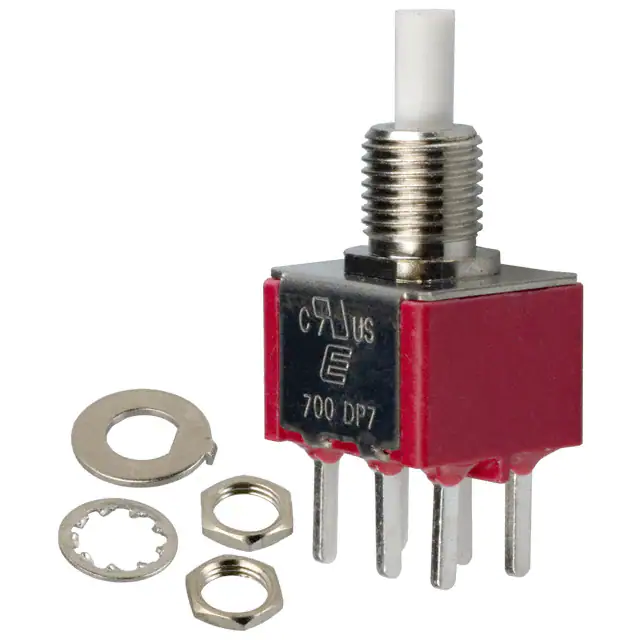

700DP7B10M2QEHSWITCH PUSHBUTTON DPDT 3A 120V |
314 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
