Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPR1FAD2L0GSWITCH PUSHBUTTON SPST 4A 12V |
2,950 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

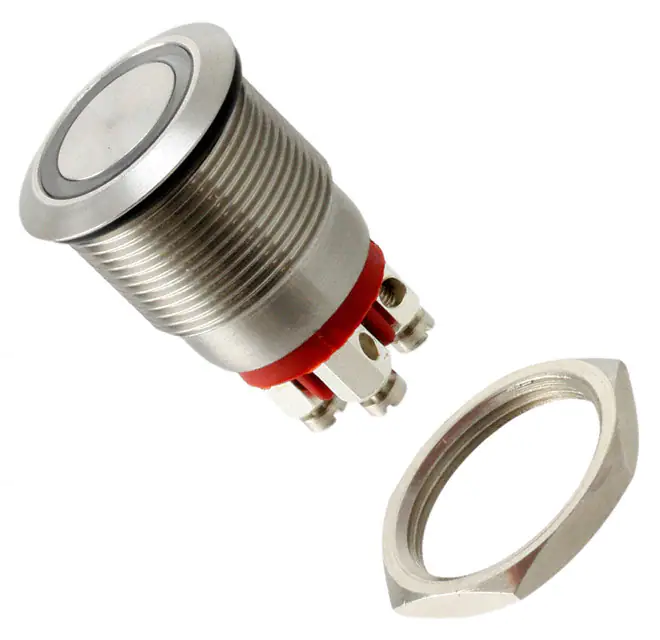

MPI002/TERM/RDSWITCH PUSH SPST-NO 0.05A 24V |
119 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IQR3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
4,135 |
|
Datasheet |
IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|

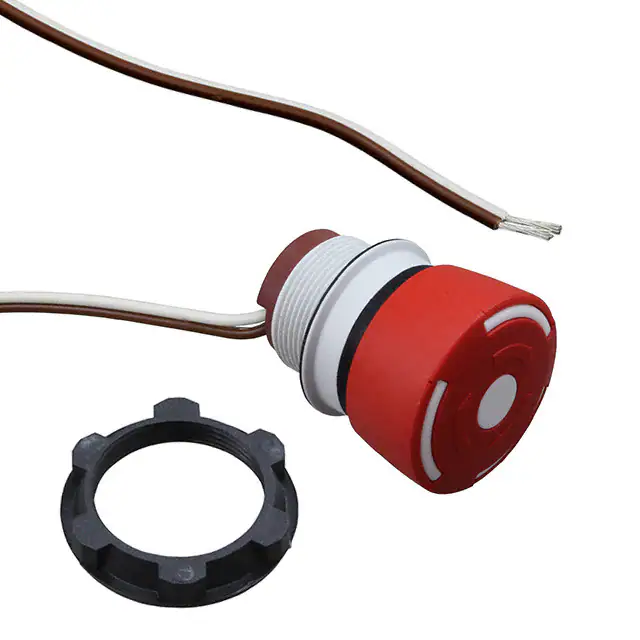

84-6820.0040ASWITCH STOP LIGHT GRAY 1NC NON |
147 |
|
Datasheet |
84 | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
MPI002/TERM/AMSWITCH PUSH SPST-NO 0.05A 24V |
102 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2.3 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IPR5FAD2SWITCH PUSH SPDT 0.5A 48V |
389 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
A165L-JRM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
144 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
13445ASWITCH PUSHBUTTON DPDT 4A 125V |
50 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|

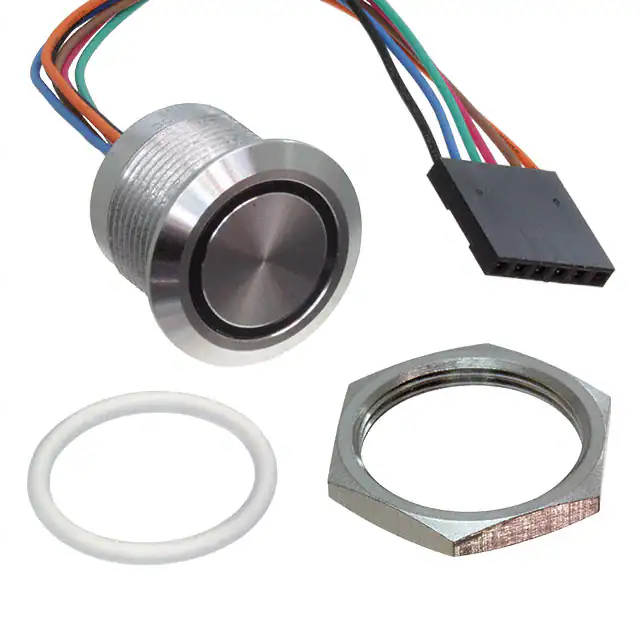

CS4M2FRSWITCH PB SPST 1A 24V |
108 |
|
Datasheet |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
MPI002/28/D4SWITCH PUSH SPST-NO 0.05A 24V |
2,730 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 2.0, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

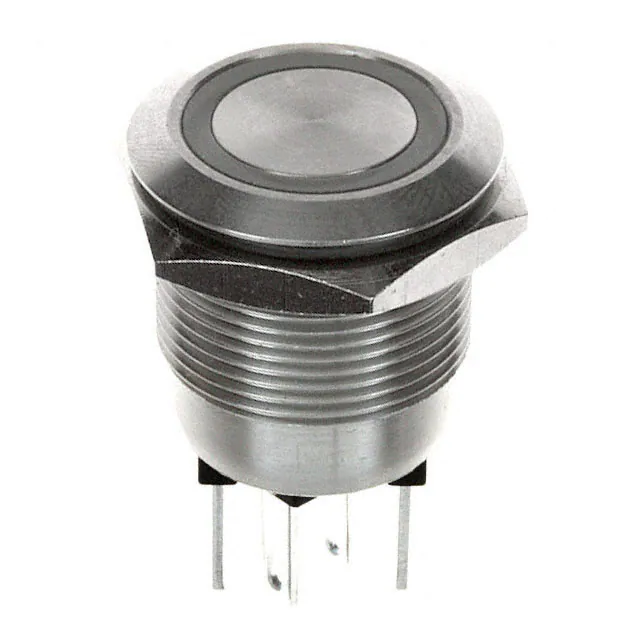

MPI002/28/D1SWITCH PUSH SPST-NO 0.05A 24V |
82 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.05, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MPI001/28/D1SWITCH PUSH SPST-NO 0.05A 24V |
35 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.05, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

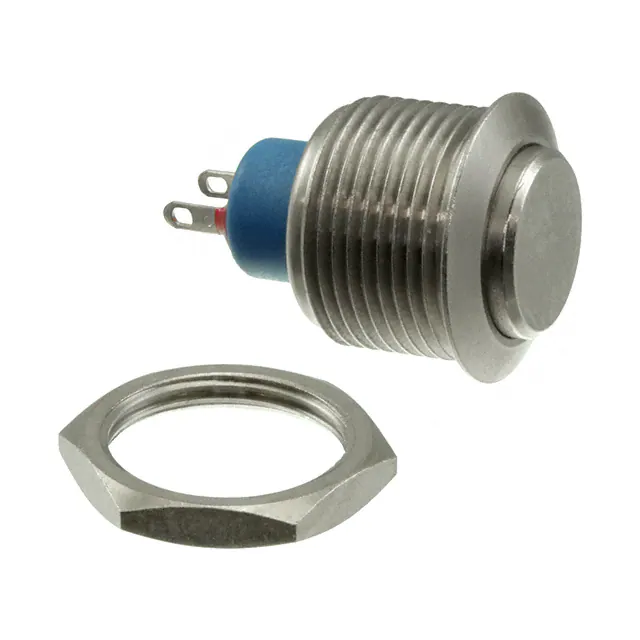

9633AX1146SWITCH PUSH SPST-NO 1A 30V |
57 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 16.20mm Dia | -30°C ~ 65°C |
|
IPR1FAD3L0GSWITCH PUSHBUTTON SPST 4A 12V |
41 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
31-122.025SWITCH PB 4PST-2NO/2NC 5A 250V |
34 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AML21GBA2AASWITCH PUSHBUTTON SPDT 3A 125V |
65 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
IRR1S422L0SSWITCH PUSH SPST 0.2A 250V |
99 |
|
Datasheet |
IR | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Black | LED, Red | 1.95 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
AML21FBA2ACSWITCH PUSHBUTTON DPDT 3A 125V |
29 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
13435AD2GKSWITCH PUSHBUTTON SPDT 4A 125V |
50 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | Environment Sealed | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
AVC22MS16FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
26 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
